Omega DP606A - Alarm Relay Functionality; Alarm Relay Configuration Options

Section 5.16 - Function A/B - Alarm Relay Function
When split operation is selected in Function 7, Alarm relay operation is customized
using functions A and B.
Function A Controls Alarm 1 and Function B controls Alarm 2. Each zone may be
assigned to one or more relays. By Default, Alarm 1 is assigned high / low alarms

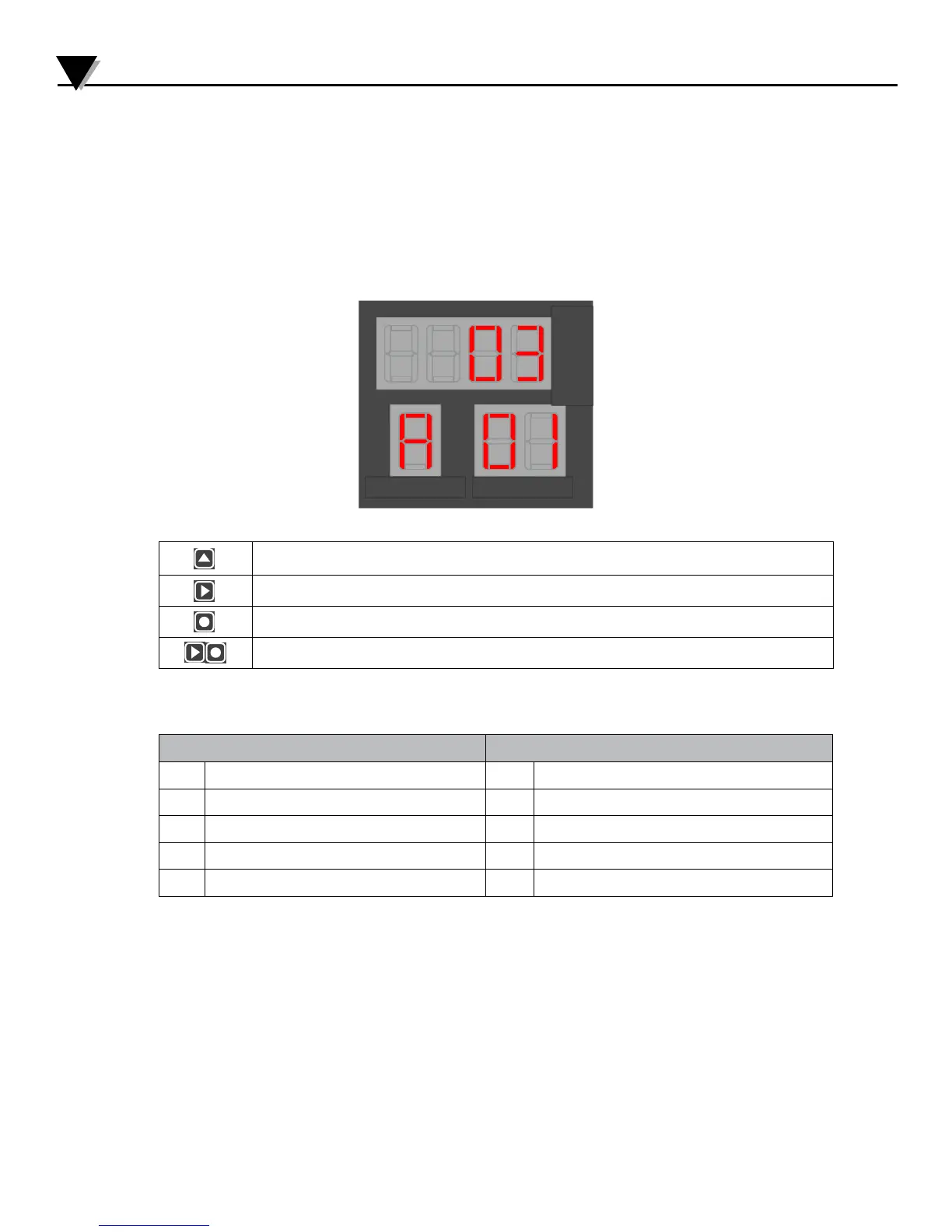

for all zones and Alarm 2 is Disabled for all zones. The Current Zone being edited is
shown in the Zone Display. The current mode for that zone is displayed in the Main
Display.

ºC
ºF
mA
mV
Function Zone
Increment the flashing digit of the VALUE display
Selects the next digit of the VALUE display, causing it to flash
Moves to the next zone
Stores all values and returns to Function Select mode
Series Navigation
5
Digit 1 Digit 2
Alarm Latching Alarm Type
0 Not Latched 0 High Alarm
1 Latching relay 1 Low Alarm
2 High and Low Alarm
3 Alarm Disabled
Table 6 - Alarm Relay Configuration
17
