Omega DP606A - Rear Panel Overview

Wiring Instructions
4
1
2
3
4
5
6
19
13
1 12
7

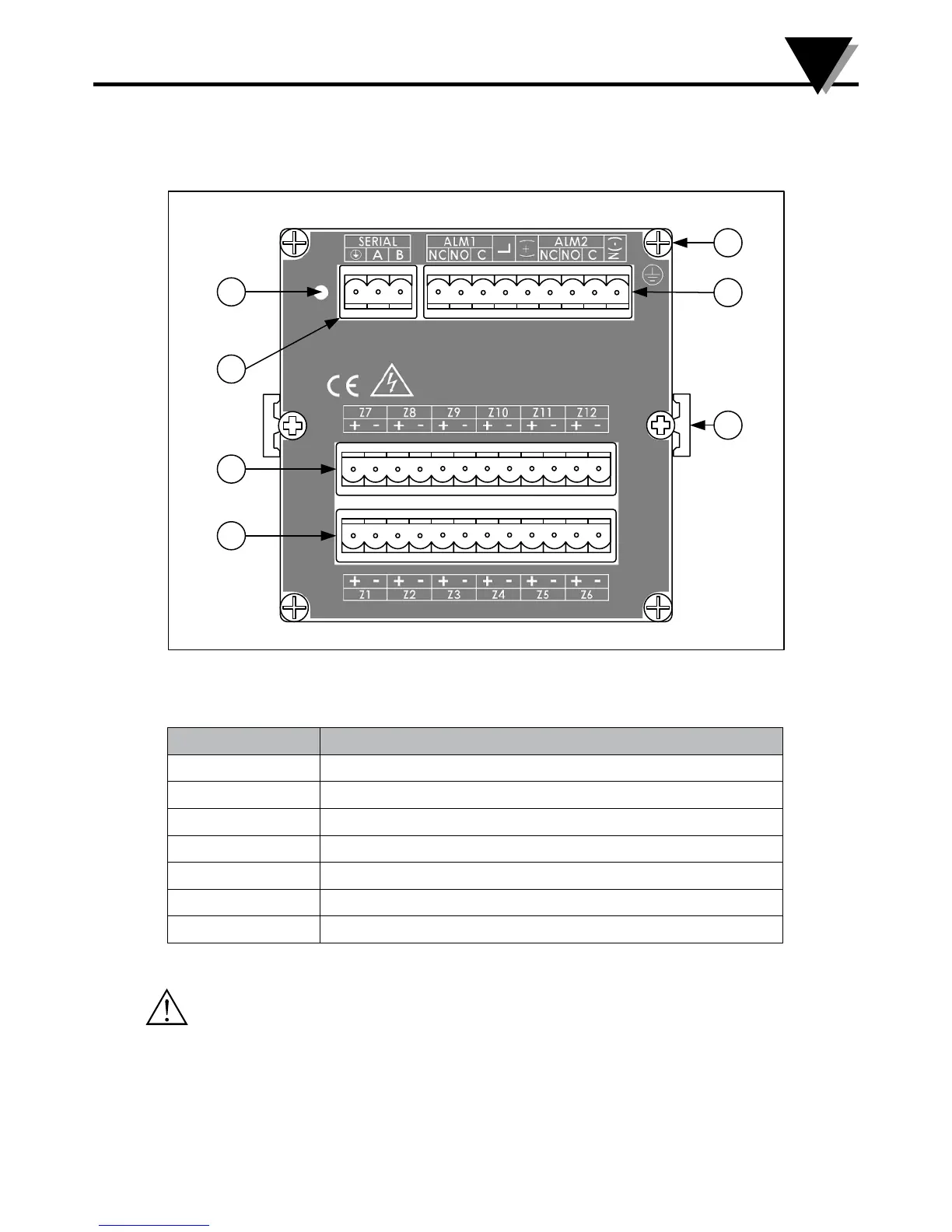

Section 4.1 - Rear Panel Diagram
Figure 2 - DP606A/DP612A: Rear Panel Connections
Item Description
1 Reset Pinhole
2 Serial Connector
3 Input 7 through 12
4 Input 1 through 6
5 Supplementary Ground Point
6 Power and Alarm Connector
7 Mounting Slide
Table 1 - Rear Panel Connections
4
Caution: Use only provided terminals. Torque all connections to 0.5-0.6Nm.
