Creating New Mixes in COMPOSER™
SETUP → Active Gas → COMPOSER Mixes → Create Mix
Give the Mix a Short and Long Name
UP/DOWN will change the character. Valid characters include A–Z, 0–9, punctuation (. ,
-
),
and space. CANCEL exits to the mix settings menu. SET accepts the name.
✓
Note: Using a space in the short name can cause the serial data frame to be read
incorrectly by some programs.
Define the Mix.
• Add Gas to Mix enters the Gas Select™ category listing. Once you find the correct gas,
press SET. Enter the composition percentage and press SET.
• As gases are added, the total used percentage will be shown on the mix settings menu.
• When adding the last gas, ™ can change the gas percentage to fill the remaining
portion to 100% by selecting the component gas, then selecting Set % to Balance.
• Once the gases total 100%, the mixture can be saved be selecting Save Mix. Selecting
BACK will permanently discard the mix.
• After a few gases have been added, the list will push the menu to a second page; use
the PAGE button to see the remaining list.
Viewing, Deleting, and Creating Similar Mixes
SETUP → Active Gas → COMPOSER Mixes → [Select mix] → INFO
The current configuration of any existing ™ mix can be viewed by selecting INFO
instead of SET in the mix list. It will show:
• Options to delete the mix, or to create a similar mix.
• Short and long names.
• The gas number.
• The composition, which may extend to a second page; if so, pressing the PAGE button
will move to the next page.

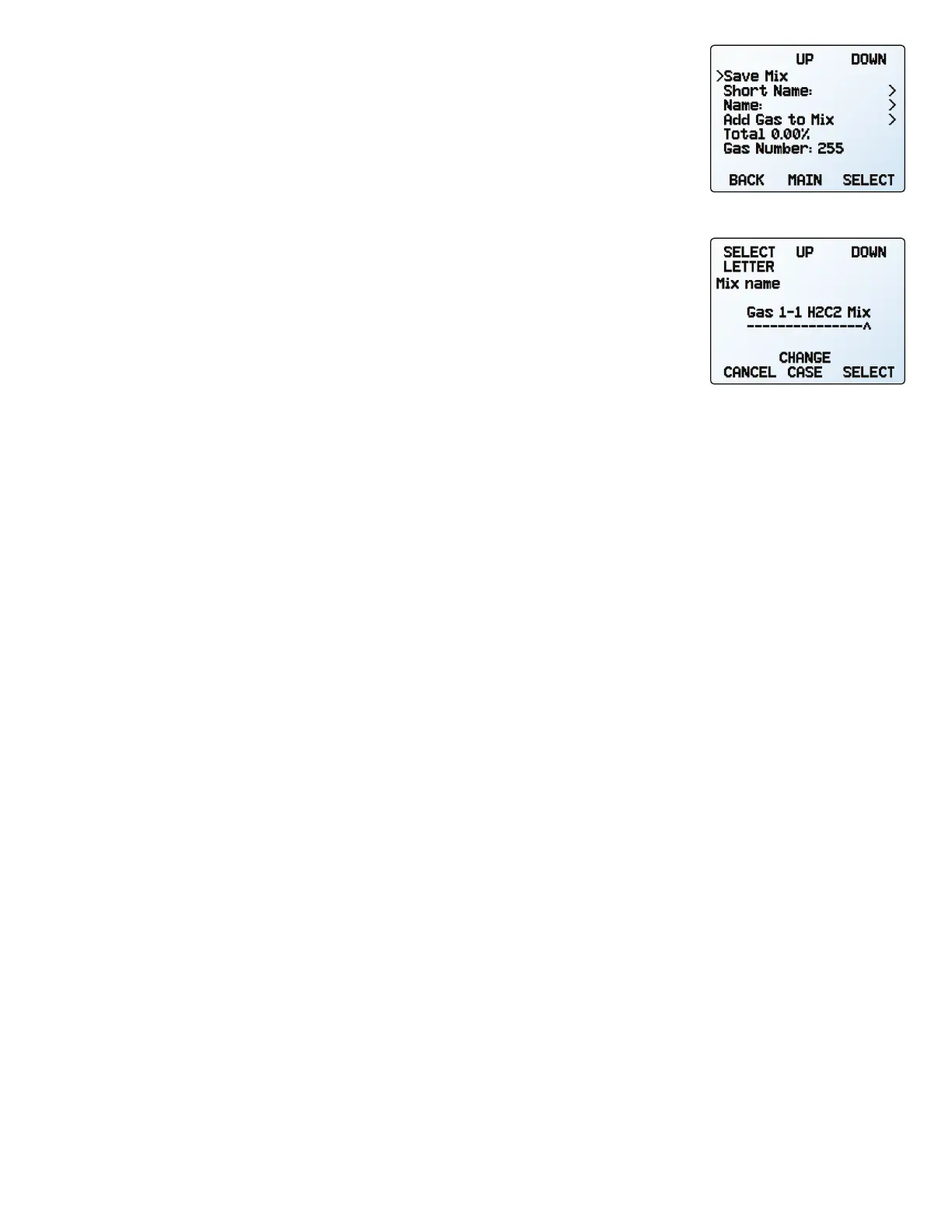

The mix settings menu.
Defining a mixture’s long name.
