2022.11.18 REV. MASS FLOW METER OPERATING MANUAL 5
Quick Start Guide
Setup
• Connect your flow meter. Ensure that
flow will pass through your device in the
same direction as the arrow on the flow
body (usually left to right).
•
Choose your engineering units. You
can choose the measurement units by
selecting MAIN MENU → SETUP → Sensor
→ Engineering Units, see page 15
for more details.
Operation: Flow Verification
•
Monitor live flow, temperature, and
pressure readings. Readings are
updated and displayed on your device
in real time. See page 6.
•
(Optional) Capture totalized readings.
The totalizer option displays the total
flow that has passed through the device
since the last time the totalizer was reset.
If your device has a totalizer, press NEXT
from the main live data display to access
the totalizer. See page 11.
Connectors and Buttons

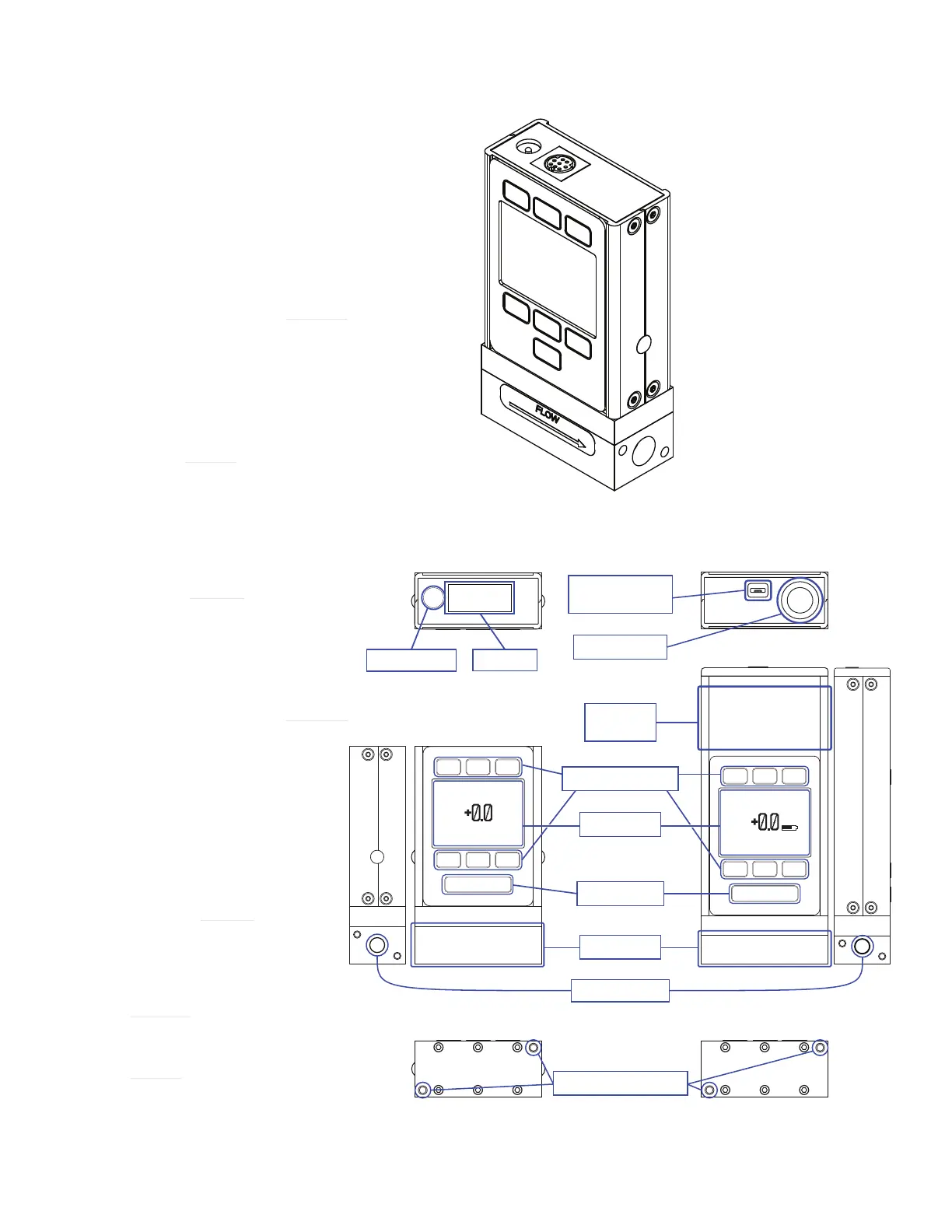

The drawing to the right represents a typical
configuration of a standard mass flow meter.
Your device’s appearance and process
connections may differ. See page 12
for more examples.
Backlight
The monochrome display comes equipped
with a backlight. To toggle the backlight
power, press the logo on the front of
your device.
For optional color TFT displays, pressing
this button will turn off the display to
conserve power. See page 11.
Maintenance and Care
•
Flow meters do not require cleaning
when flowing clean, dry gases. Read
more on page 23.
•
Calibrate your flow meter annually. To
schedule a calibration, please contact
support (page 2).
+0.0 +0.0
+13.49 +22.73
Mass Flow
CCM SCCM MENU
PSIA ~C TARE
FLOW
SCCM
A i r
+0.0 +0.0
+13.49 +22.73
Mass Flow
CCM SCCM MENU
PSIA ~C TARE
FLOW
SCCM
A i r
Process ports
Mounting holes
Flow body
Light button
Display
Softkey buttons
Power input Data I/O
Micro-USB
(data & power)
Power switch
Enclosed
battery
Meters Battery-Powered Meters
This M-20SLPM-D model mass
flow meter is a typical unit. The
flow body can vary significantly,
generally depending on
full-scale flow rate.
