GPS Synchronization Unit CMGPS
16

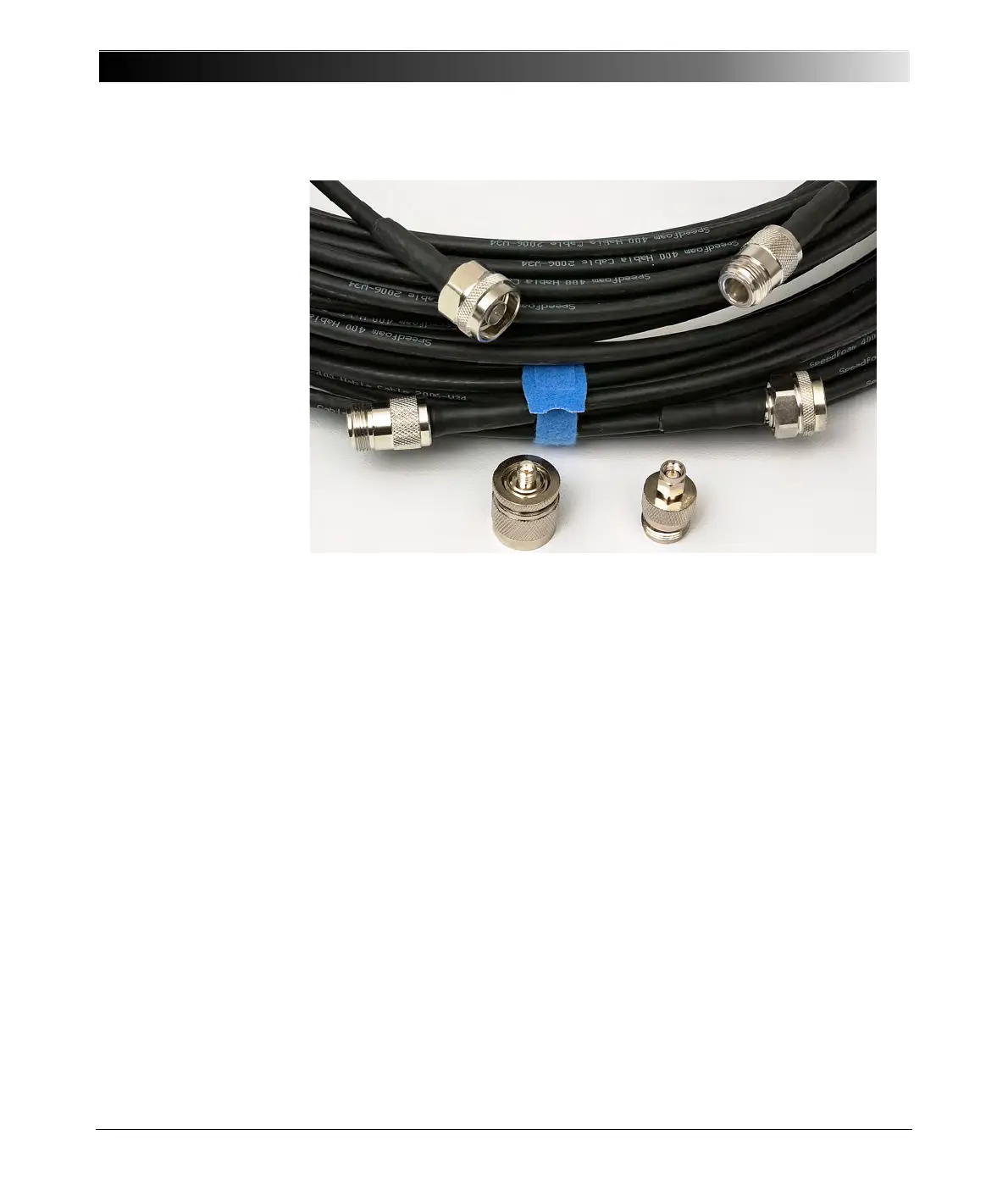

Figure 3-7:
SMA adapter to connect
the extension cables to
CMGPS and antenna
Protecting cap for antenna input (no illustration)
Carrying bag for CMGPS (no illustration)
User manual (no illustration)
Connect to antenna Connect to CMGPS
Extension cables
