Omicron CT Analyzer User Manual

Getting Started with CT Analyzer & CT SB2
10 OMICRON
2.4 Functional components of the CT Analyzer
2.4.1 Overview
Figure 2-1 provides an overview of the operating and display elements and the connectors of the
CT Analyzer.

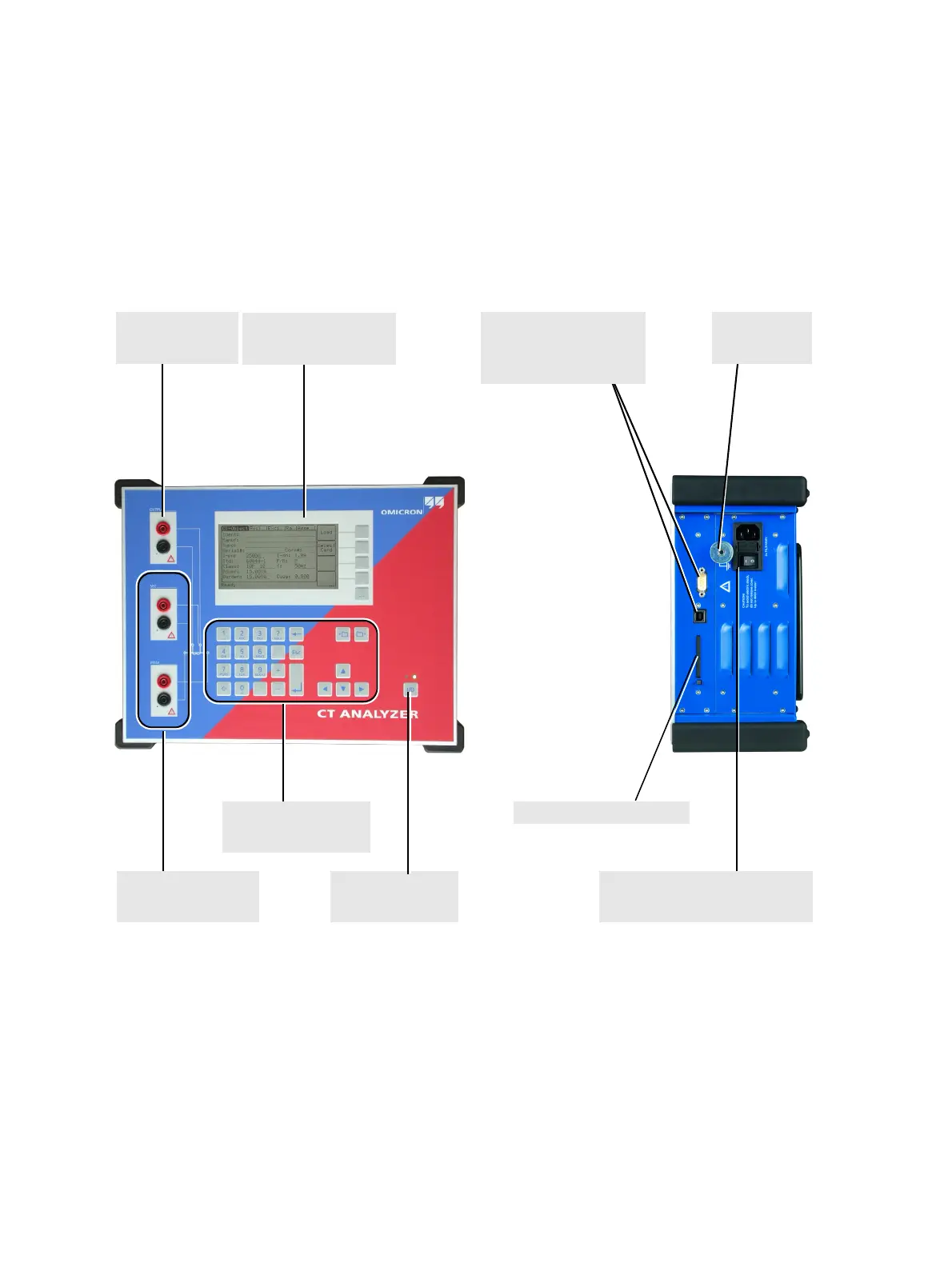

Figure 2-1: CT Analyzer overview
Compact Flash card slot
Remote control interface
RS232 interface and USB
interface for connecting
the CT Analyzer to a PC
Grounding
terminal
Keyboard
with cursor keys and
card selection keys
Output
Generator output
Display
with context-dependent
keys ("soft keys")
Sec, Prim
Measurement inputs
I/0 key
with status LEDs
Mains connection unit
Mains socket with fuse and
ON/OFF switch

Omicron CT Analyzer Specifications

General

Type	CT Analyzer
Measurement Categories	CAT III 300 V
Power Supply	100-240 V AC, 50/60 Hz
Primary Application	Testing and calibrating current transformers
Interface	USB, Ethernet
Standards	IEC 60044-1
Voltage Range	0 to 300 V
Accuracy	±0.02%
Basic Accuracy	0.02% (typical)
