Omron 3G3MX2 Series Connection Guide

7. Connection Procedure
7.3.2. Setting Global Variables

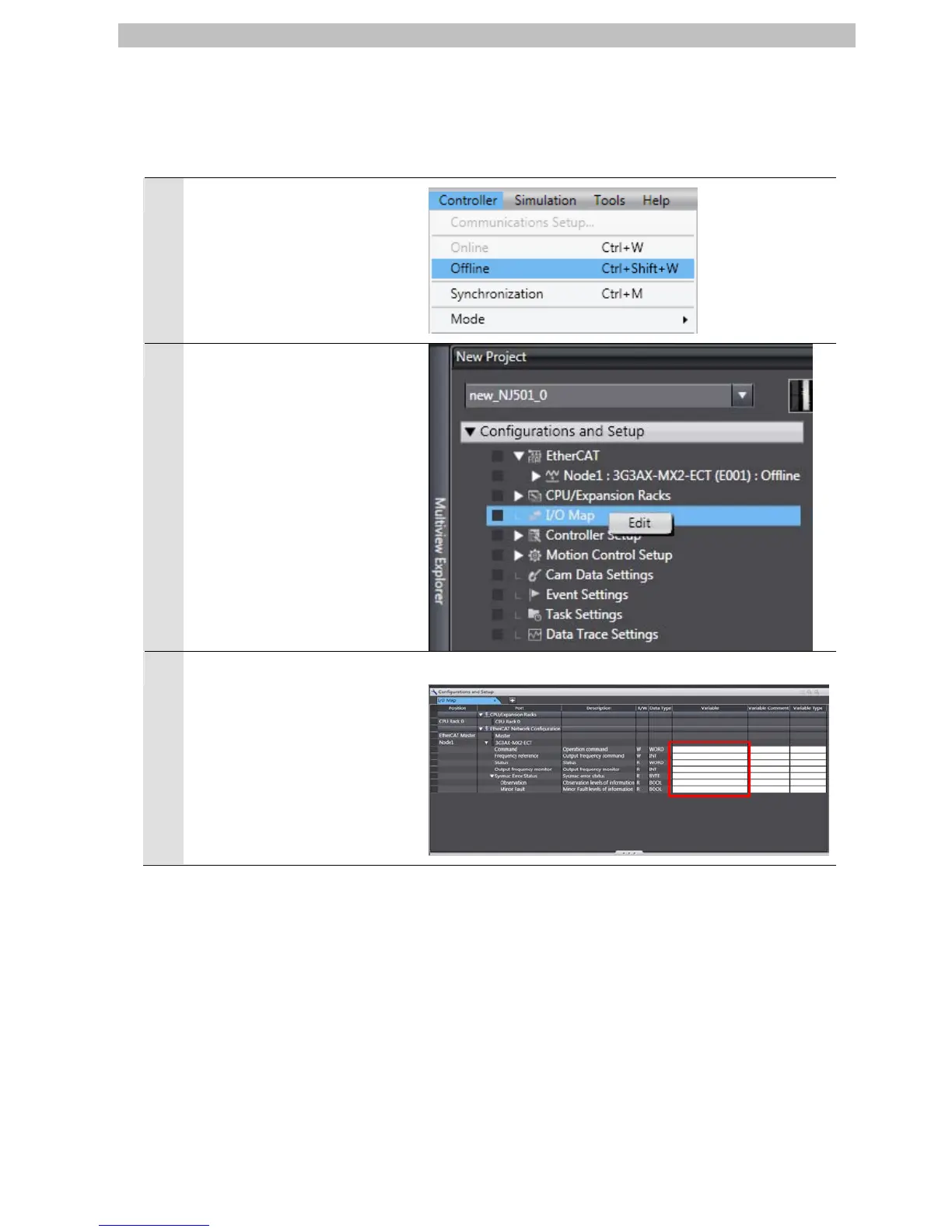

Set global variables to use for the EtherCAT Slave Unit.
1
Select Offline from the
Controller Menu.
2
Double-click I/O Map under
Configurations and Setup on the
Multiview Explorer, or right-click
it and select Edit.
3
The I/O Map Tab Page is
displayed on the Edit Pane.
Click a column under Variable to
enter a new variable.
-
20

Omron 3G3MX2 Series Specifications

General

Frequency Range	0.1 to 400 Hz
Control Method	V/f Control, Sensorless Vector Control
Overload Capacity	150% for 60 seconds
Safety Standard	CE, UL, cUL
IP Rating	IP20
Output Voltage	3-phase 200-240V AC
Output Frequency	0.1 to 400 Hz
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground fault, Short circuit
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5% to 95% RH (non-condensing)
Altitude	Up to 1000 m
Braking Unit	Built-in
Communication	Modbus RTU
Communication Interface	RS-485
Cooling Method	Forced air cooling
Enclosure Rating	IP20
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload
