8 Errors and Remedies
8 - 2
DriveProgramming User’s Manual (I580-E1)
8-1 Troubleshooting
This section describes the program operation at the time of error occurrence, the error codes that are
specific to the DriveProgramming, and the remedies for them.
Basically, even if the inverter detects a trip during the DriveProgramming operation, the operation is
continued. However, if any of E43 to E45 trips related to the DriveProgramming is detected, the opera-
tion is stopped. Or, with the “on trip goto” command, the program can jump to other process after a trip
occurred.
When execution of the DriveProgramming program is stopped, the status before the program
stop is retained for multi-function outputs controlled by the DriveProgramming.
For this reason, the wiring must be made so that the stop of the DriveProgramming program in
the inverter can be detected by the DriveProgramming start signal and the alarm (trip) signal,
and the inverter's peripheral devices can be stopped safely.
8-1-1 DriveProgramming Operation on Error
With/without
“on trip goto”
Error status
User trip
E50 to E59
DriveProgram-
ming-related
Trip E43 to E45
Other trips
Without Operation is continued. Program is stopped. Operation is continued.
With After the “on trip goto”
command is executed, the
program jumps to the
specified label and the
operation is continued.
Program is stopped. After the “on trip goto”
command is executed, the
program jumps to the
specified label and the
operation is continued.
4 - 21
4 DriveProgramming Editor
DriveProgramming User’s Manual (I580-E1)
4-7 Editing Transferred (Uploaded) Programs
4
4-7-1 Editing Transferred (Uploaded) Programs
4-7
Editing Transferred (Uploaded) Programs
You can edit the program which is saved in the inverter after transferring (uploading) it from the inverter.
Follow the steps described below to edit the program.
1 Open the DriveProgramming Editor.
The DriveProgramming auxiliary windows (Command box, User Parameters and Properties)
are displayed automatically.
2 Go online with the CX-Drive. From the Menu, select [Drive] - [Work Online]. Or, click the [Work
Online] icon in the CX-Drive toolbar.
3 Click the [Transfer from Drive] icon in the toolbar of the DriveProgramming Editor.
A program is transferred from the drive (inverter) and automatically displayed in the designer
area of the DriveProgramming Editor.
4 Edit the transferred (uploaded) program.
The programs that exist in the inverter are the downloaded "programs after compilation".
Therefore, the transferred (uploaded) program will be displayed as a text program.
To display it as a flowchart program, click [Convert whole program to Flowchart] in the toolbar of
the DriveProgramming Editor and convert the program to flowchart.
Perform operations such as program compilation, transferring to the inverter, and data saving.
• Execute compilation and check for any compilation errors in the program.
• You can transfer the program to the inverter when the compilation is finished successfully.
• To save the program, save the whole project. Or, you can save the program separately by
using the function that exports programs.
When the DriveProgramming programs exist, you can transfer them to/from the inverter by using
[Transfer to Drive] or [Transfer from Drive] icon in the CX-Drive toolbar. In this case, you need to select
"programs" when a message dialog appears and asks you whether to transfer the parameters, pro-
grams, or both.
4-7-1 Editing Transferred (Uploaded) Programs

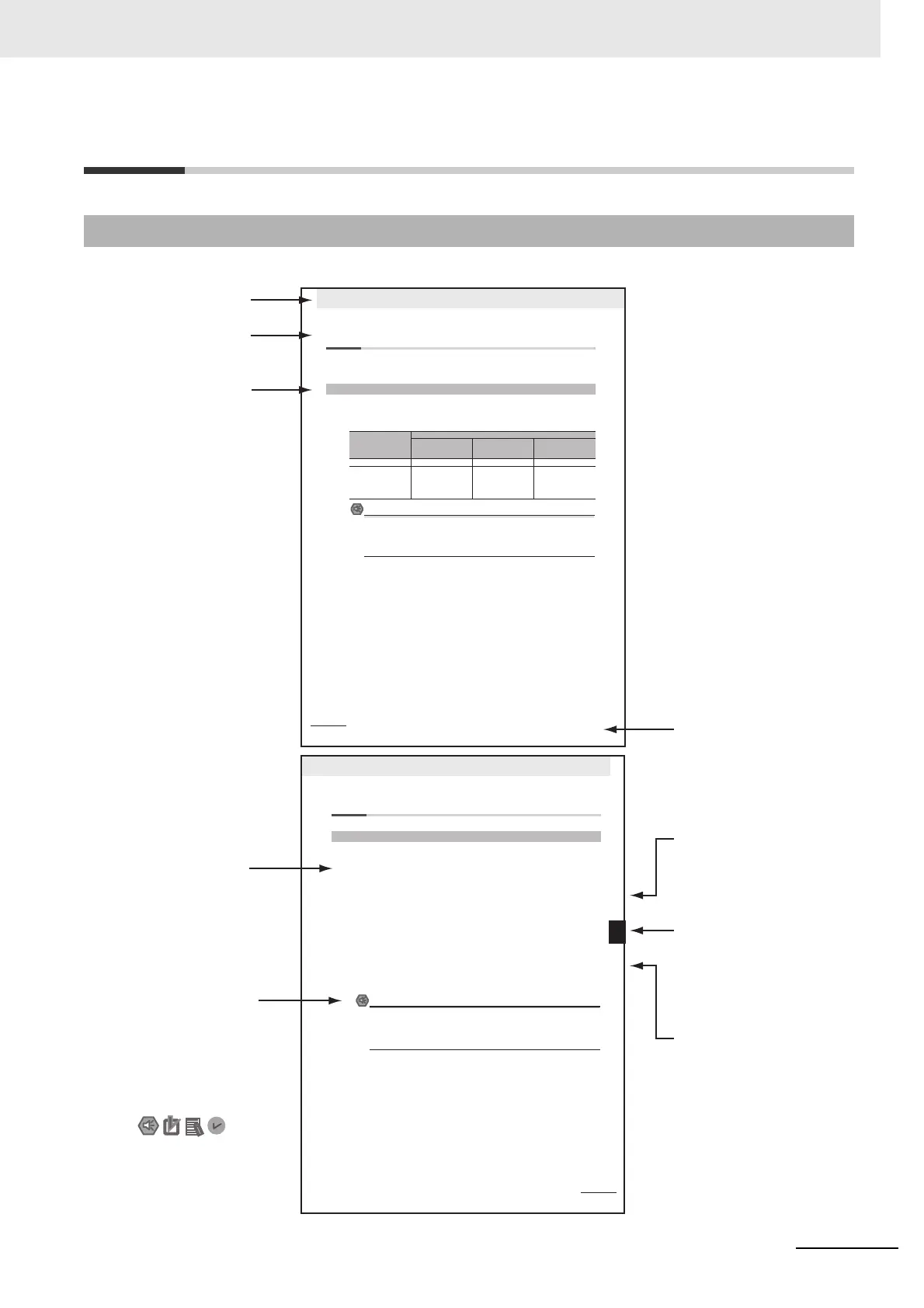

Level 2 heading
Level 3 heading
Level 1 heading
Manual Name
Level 2 heading
Section Number of Level 1
heading
Level 3 heading
Operation Steps
Describes the
operation steps.
Note, Supplementary
Information, Reference
Target
A note, supplementary
information, reference
target, etc. are provided
with difference icons.
Shows which sub-section
the content of the current
page belongs to.
Shows which paragraph
the content of the current
page belongs to.
Shows which section the
content of the current
page belongs to.
To Next Page
