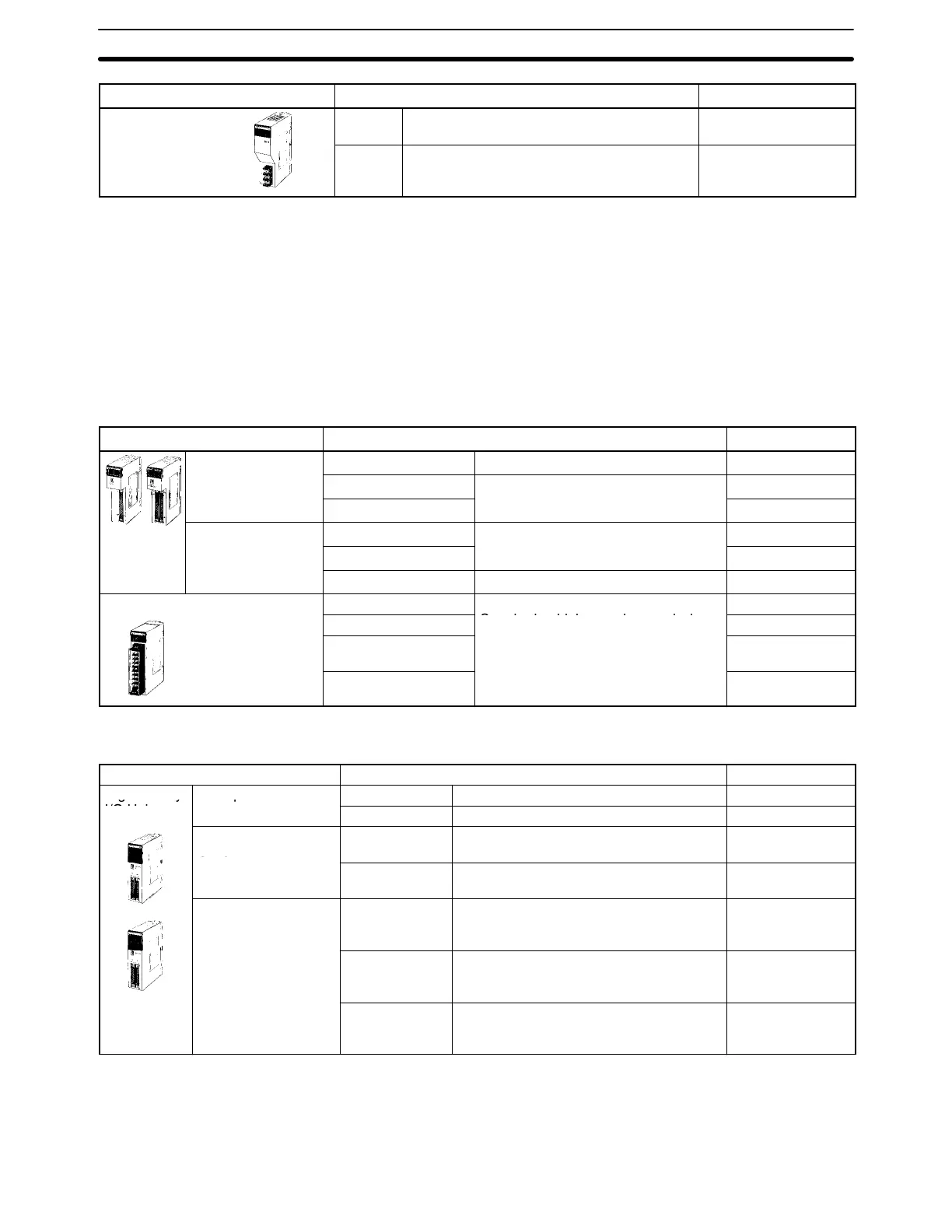

Standard Models Appendix A
508
Name Model numberSpecifications
B7A Interface Units 15 or 16
input pts
Connects to B7A Link Terminals. Standard
transmission delay.
C200H-B7AI1
16
output
pts
Connects to B7A Link Terminals. Standard
transmission delay.
C200H-B7AO1 (see
note)
Note: If the Interrupt Input Unit is mounted on an Expansion I/O Rack, the interrupt function cannot be used and
the Interrupt Input Unit will be treated as an ordinary 8-point Input Unit. Moreover, Interrupt Input Units can-
not be used on Slave Racks. In addition, Interrupt Input Units require that a version 2 (i.e., model numbers
with a “-V2” suffix) Backplane be used at the CPU Rack. If an earlier version Backplane is mounted, the
interrupt function cannot be used. When mounting the C200H-OC225, C200H-OD212, or C200H-B7AO1
to a Backplane, make sure that the model number of the Backplane includes the suffix “-V1” or “-V.” The
C200H-OC225, C200H-OD212, or C200H-B7AO1 cannot be mounted to any Backplane the model num-
ber of which does not include the suffix “-V1” or “-V.”
Group-2 I/O Units
Name Specifications Model number
DC Input Units 64 pts 12 VDC C200H-ID111
32 pts 24 VDC C200H-ID216
64 pts C200H-ID217
Transistor Output
Units
32 pts 16 mA at 4.5 V to 100 mA at 26.4 V C200H-OD218
Units
64 pts C200H-OD219
32 pts 24 VDC 0.5 A (5 A/unit) C200H-OD21B
B7A Interface Units 32 input pts Connects to B7A Link Terminals.
Sddhih d ii
C200H-B7A12
32 output pts
Standard or high-speed transmission
delay
C200H-B7A02
16 input and 16
output points
d
e
l
ay.
C200H-B7A21
32 input and 32
output points
C200H-B7A22
Special I/O Units
Name Specifications Model number
High-density
I/O U i
DC Input Units
32 pts 5 VDC (TTL inputs); w/high-speed input C200H-ID501
gy
I/O Units
(see note)
p
32 pts 24 VDC; w/high-speed input C200H-ID215
(
see note
)
Transistor Output
Units
32 pts 0.1 A, 24 VDC (useable as 128-point
dynamic output unit)
C200H-OD215
Us
32 pts 35 mA, 5 VDC (TTL outputs) (useable as
128-point dynamic output unit)
C200H-OD501
DC Input/Transistor
Output Units
16 input and 16
output pts
24-VDC inputs; w/high-speed input; 0.1-A,
24-VDC outputs (useable as 128-point
dynamic input unit)
C200H-MD215
16 input and 16
output pts
5-VDC TTL inputs; w/high speed input;
35-mA, 5-VDC TTL outputs (useable as
128-point dynamic input unit)
C200H-MD501
16 input and 16
output pts
12-VDC TTL inputs; w/high speed input;
12-VDC TTL outputs (useable as
128-point dynamic input unit)
C200H-MD115
