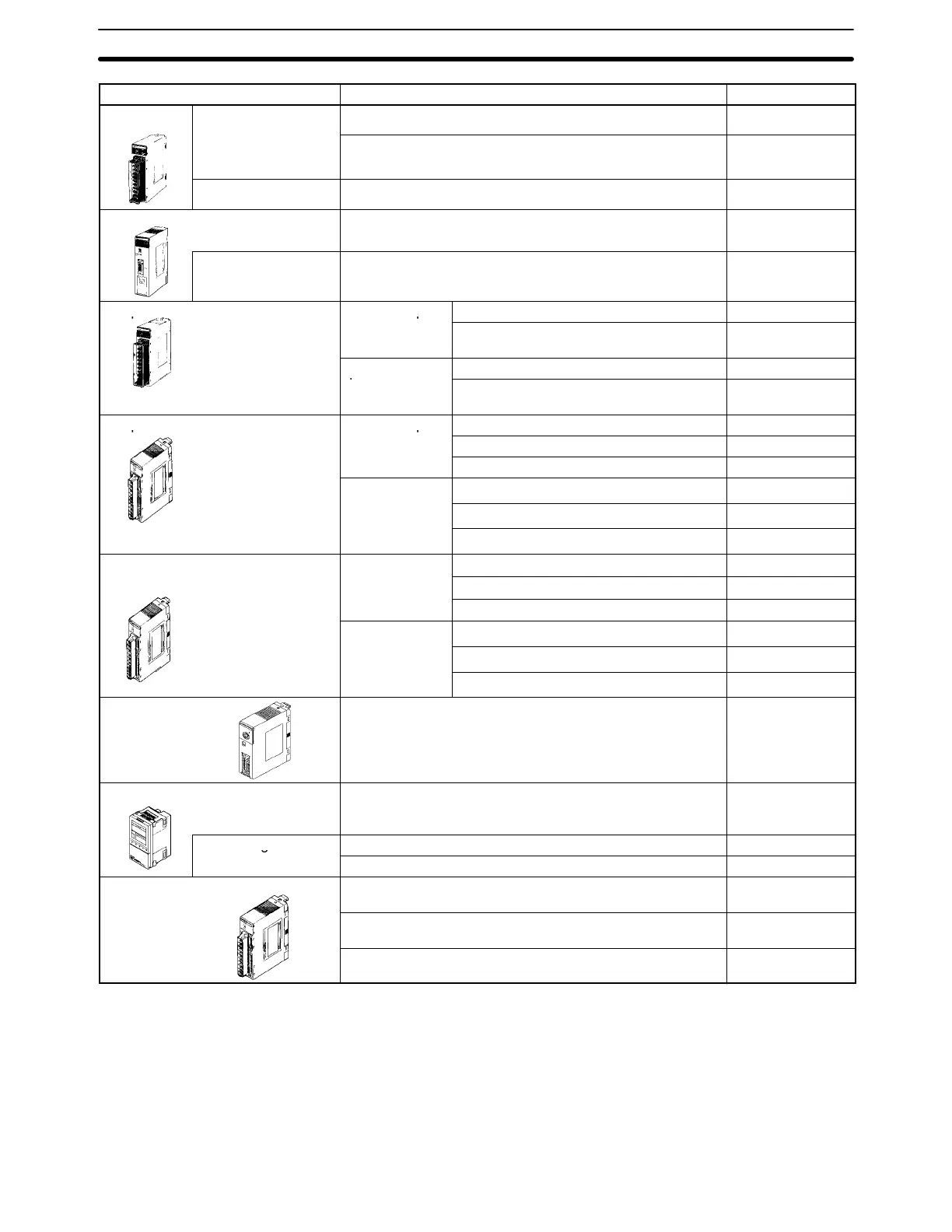

Appendix AStandard Models
509
Name Model numberSpecifications
Analog I/O
Units
Analog Input Units 4 to 20 mA, 1 to 5/0 to 10 V (switchable); 4 inputs; 12 bits C200H-AD001
Units
4 to 20 mA, 1 to 5/0 to 10 V/–10 to 10V (switchable); 8
inputs; 12 bits or BCD
C200H-AD002
Analog Output Unit 4 to 20 mA, 1 to 5/0 to 10 V (switchable); 2 outputs C200H-DA001
Fuzzy Logic Unit Programmed using the Fuzzy Support Software. Up to 8
inputs and 4 outputs.
C200H-FZ001
Fuzzy Support
Software
Available on either 3.5” or 5.25” floppy disks. C500-SU981-E
Temperature Sensor Units Thermocouple K(CA) or J(IC), switchable; 4 inputs C200H-TS001
p
p
K(CA) or L(Fe-CuNi) DIN standards;
4 inputs
C200H-TS002
Pt resistance
h
Pt 100 Ω; 4 inputs C200H-TS101
thermometer
Pt 100 Ω; 4 inputs; DIN and 1989 JIS
standards
C200H-TS102
Temperature Control Units Thermocouple
Transistor output C200H-TC001
p
p
Voltage output C200H-TC002
Current output C200H-TC003
Pt resistance
thermometer
Transistor output C200H-TC101
thermometer
Voltage output C200H-TC102
Current output C200H-TC103
Heat/Cool
TtCtlUit
Thermocouple
Transistor output C200H-TV001
Temperature Control Units
p
Voltage output C200H-TV002
Current output C200H-TV003
Pt resistance
thermometer
Transistor output C200H-TV101
thermometer
Voltage output C200H-TV102
Current output C200H-TV103
Cam Positioner Unit Detects angles of rotation by means of a resolver and
provides ON and OFF outputs at specified angles. A
maximum of 48 cam outputs (16 external outputs and 32
internal outputs) maximum are available.
C200H-CP114
Data Setting Console Used to set and monitor data in Temperature Control Units,
Cam Positioner Units, PID Control Units, and Heat/Cool
Temperature Control Units.
C200H-DSC01
Connecting Cables 2 m C200H-CN225
g
4 m C200H-CN425
PID Control Units Transistor output; 4 to 20 mA/1 to 5 V/0 to 5V/0 to 10 V
inputs (selectable)
C200H-PID01
Voltage output; 4 to 20 mA/1 to 5 V/0 to 5V/0 to 10 V inputs
(selectable)
C200H-PID02
Current output; 4 to 20 mA/1 to 5 V/0 to 5V/0 to 10 V inputs
(selectable)
C200H-PID03
