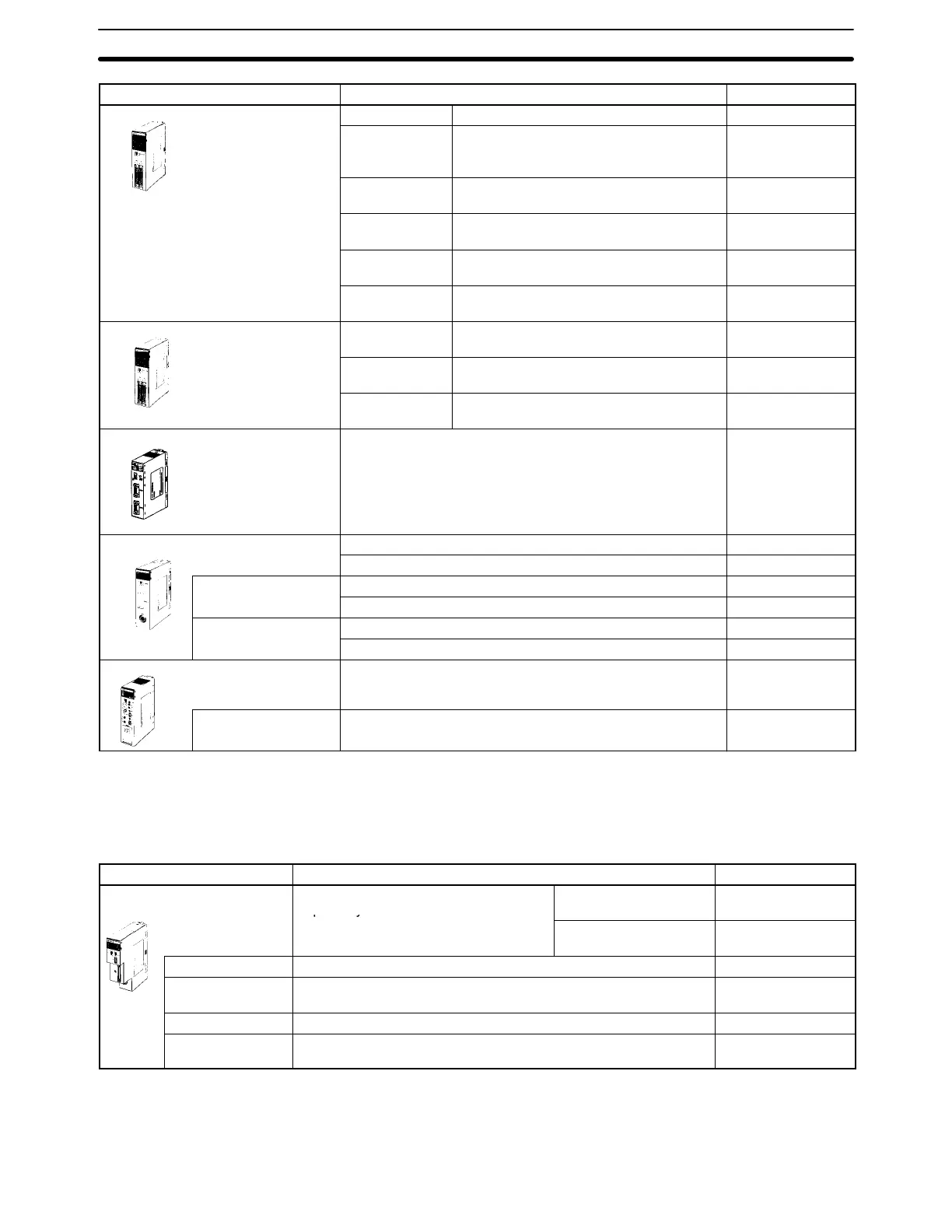

Standard Models Appendix A
510
Name Model numberSpecifications
Position Control Units 1 axis Pulse output; speeds: 1 to 100,000 pps C200H-NC111
1 axis Pulse output; directly connects to
servomotor driver; compatible with line
driver; speeds: 1 to 250,000 pps
C200H-NC112
1 axis Pulse output; directly connects to
servodriver
C200HW-NC113
2 axes Pulse output; speeds: 1 to 250,000 pps,
53 pts per axis
C200H-NC211
2 axes Pulse output; directly connects to
servodriver
C200HW-NC213
4 axes Pulse output; directly connects to
servodriver
C200HW-NC413
High-speed Counter Units 1 axis Pulse input; counting speed: 50 kcps; 5
VDC/12 VDC/24 VDC
C200H-CT001-V1
1 axis Pulse input; counting speed: 75 kcps;
RS-422 line driver
C200H-CT002
2 axes Pulse input; counting speed: 75 kcps;
RS-422 line driver; 7-digit BCD
C200H-CT021
ASCII Unit 24K-byte RAM and 24K-byte EEPROM are built-in. C200H-ASC02
ID Sensor Units Local application, electromagnetic coupling C200H-IDS01-V1
Remote application; microwave transmissions C200H-IDS21
Read/Write Heads Electromagnetic type V600-H series
Microwave type V620-H series
Data Carriers SRAM type for V600-H series.
V600-DR
EEPROM type for V600-H series.
V600-DP
Voice Unit 60 messages max.; message length: 32, 48, or 64 s
(switchable)
C200H-OV001
Connecting Cable RS-232C C200H-CN224
Note: When mounting a High-density I/O Unit as a Special I/O Unit to a Slave Rack, the Remote I/O Master must
be the C200H-RM001-PV1 or C200H-RM201.
Communication Units
Name Specifications Model number
SYSMAC LINK Unit
(coaxial cable)
A Bus Connection Unit must be ordered
separately.
Data link table:
918 words
C200HW-SLK23
sepa a e y
Data link table:
2,966 words
C200HW-SLK24
Terminator One required for each node at ends of System. C1000H-TER01
Attachment
Stirrup
Provided with SYSMAC LINK Unit. C200H-TL001
F Adapter To connect network C1000H-CE001
F Adapter
Cover
To connect network C1000H-COV01
