Omron CJ1W-EIP21 User Manual

7 Tag Data Link Functions
7-4
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)

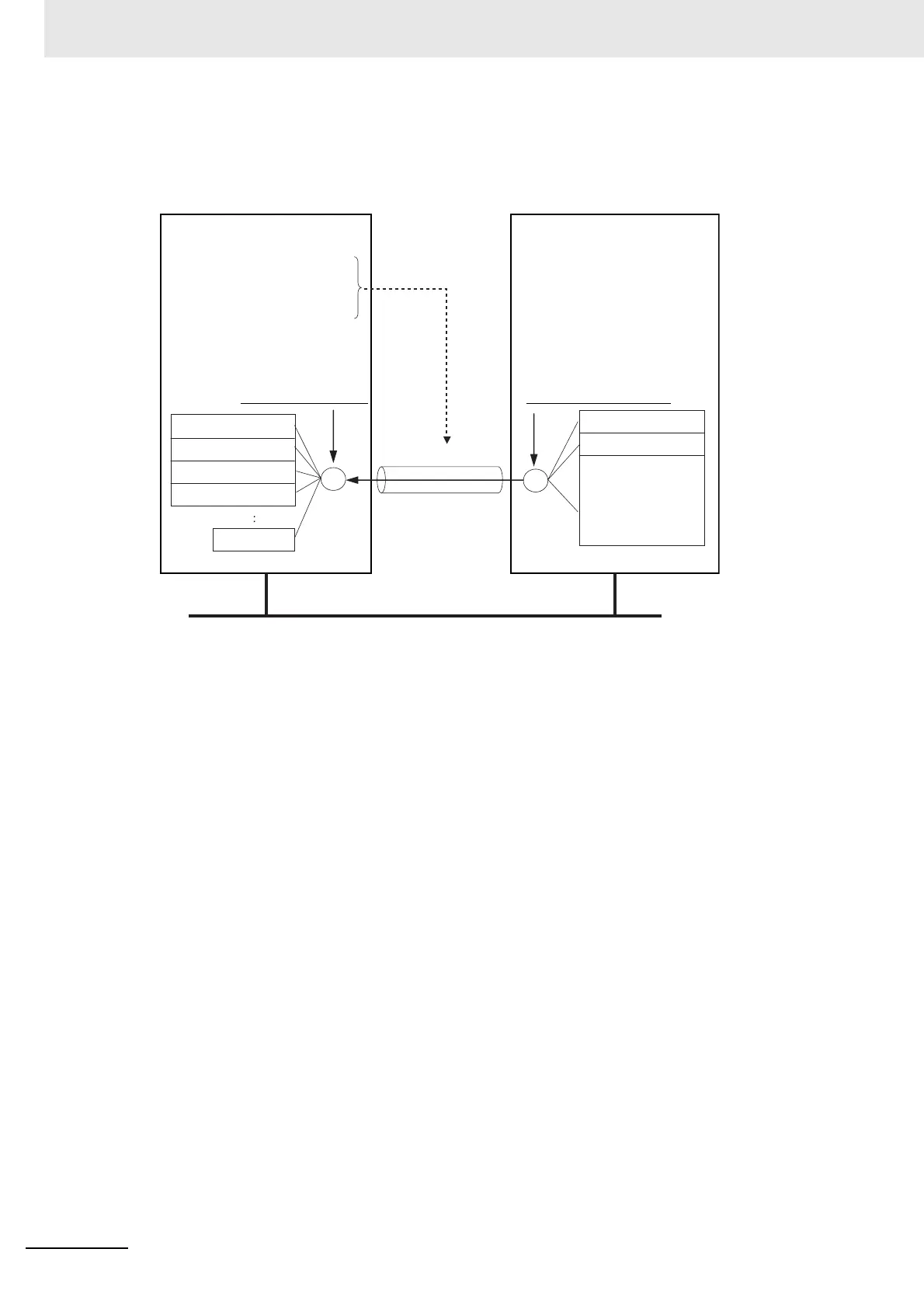

 Example
In the following example, input tags a to g at the originator are a tag set named SP1_IN and output
tags i and ii are a tag set named SP1_OUT. A connection is set between these two tag sets.
There are both input (consume) and output (produce) tag sets. Each tag set can contain only input
tags or only output tags. The same input tag cannot be included in more than one input tag set.
IP address: N
Tag Set (Outputs)
Tag set name: SP1_OUT
Connection
Controller status
Controller status
Tag i
Tag ii
Tag g
Tag c
Tag b
Tag a
Tag set name: SP1_IN
Tag Set (Inputs)
· Packet interval (RPI)
· Target tag set: SP1_OUT
· Originator tag set: SP1_IN
· Target IP address: N
Connection information
Target DeviceOriginator device
EtherNet/IP
