7 Tag Data Link Functions
7-56
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)
Tag data link parameters (such as the tag set settings and connection settings) can be compared with
the parameters of the EtherNet/IP Units in the EtherNet/IP network. The following procedure shows
how to compare the parameters. For details on how to connect to the network from the Network Config-
urator, refer to 7-2-8 Connecting the Network Configurator to the Network.
You can use the following procedure to compare the list of registered devices in the Network Configura-
tion Pane with the devices connected on the EtherNet/IP network, and check the IP addresses and
device types. This function does not verify device parameters.
1
Connect the Network Configurator online.
2
Select Network
−
Verify Structure.

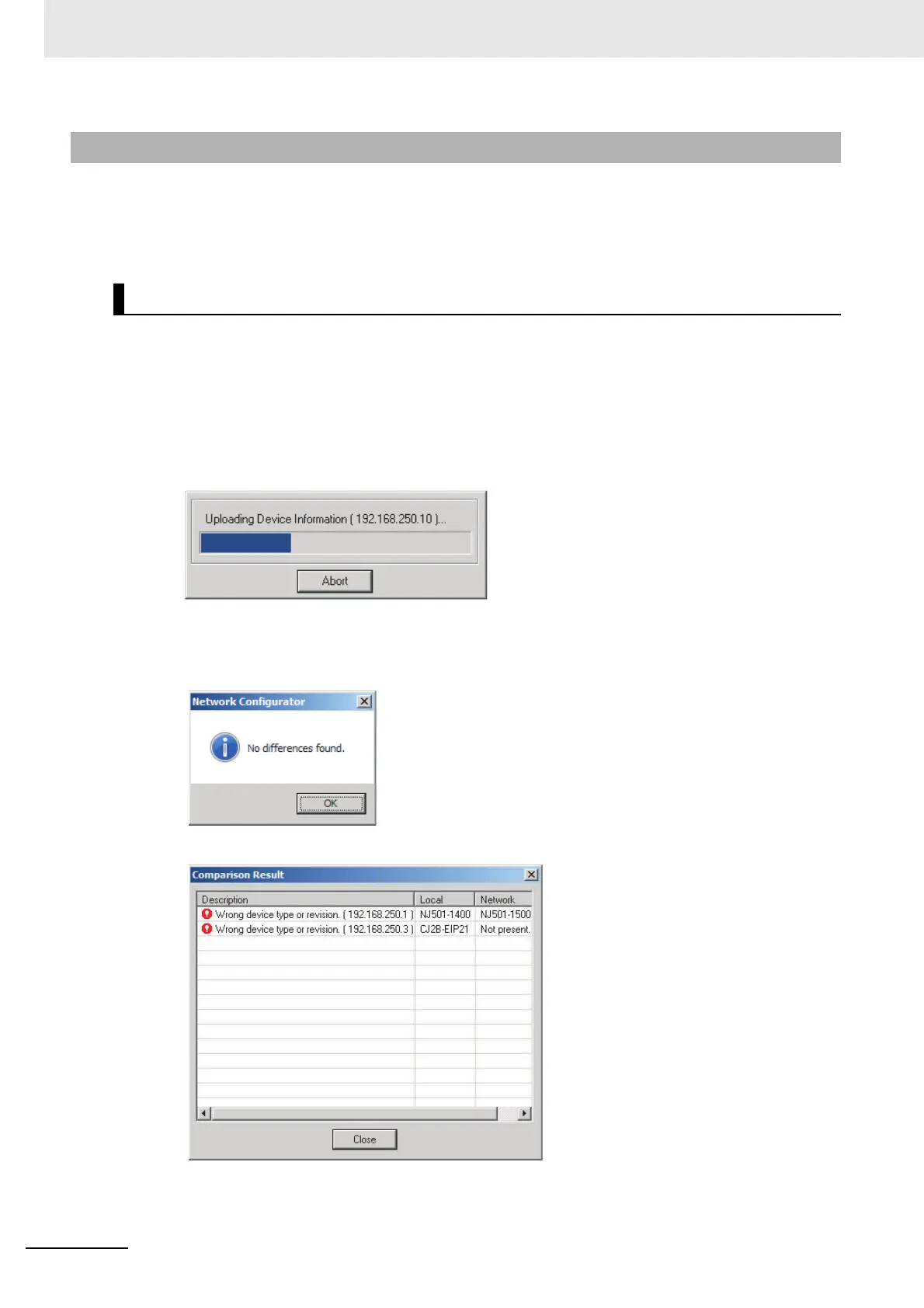

The following progress monitor is displayed to show the progress as data is read from the net-
work and compared.
3
The results of the comparison between the network configuration file and data from the network
are displayed as shown below.
Differences Not Found in the Comparison
Differences Found in the Comparison
7-2-11 Verifying the Tag Data Links
Verifying the Network Configuration
To Next Page
