7 Tag Data Link Functions
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)
7-2 Setting Tag Data Links
7
7-2-10 Uploading Tag Data Link Parameters
Uploading Individually from Particular Devices
1

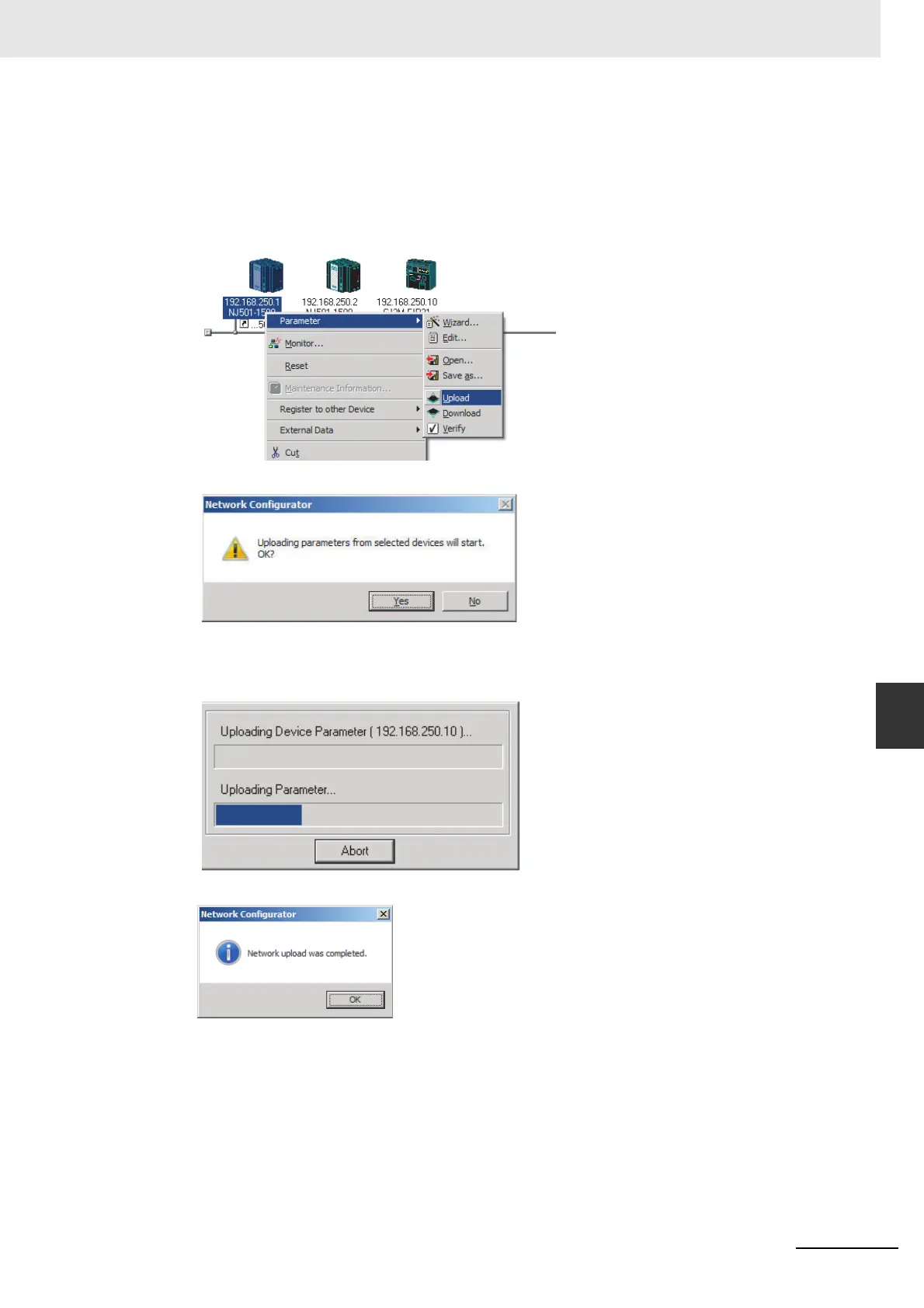

Connect the Network Configurator online and select the icon of the EtherNet/IP Unit from which
you want to upload the parameters. To select multiple nodes, press and hold the Shift Key while
you select additional icons. (In the following example, 2 nodes are selected: 192.168.250.1 and
192.168.250.2.)
Right-click the icon to display the pop-up menu, and select Parameter
−
Upload.
2
The following dialog box is displayed.
Click the Yes Button or the No Button.
3
During the upload, the following progress monitor is displayed to show the progress of the
upload.
4
The following dialog box is displayed to show that the upload was completed.
To Next Page
