7 Tag Data Link Functions

7-54

CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)

Clicking the No Button:

Performing a Batch Upload over the Network

Parameters are uploaded from all devices on the network. The current Network Configuration

Information will be lost.

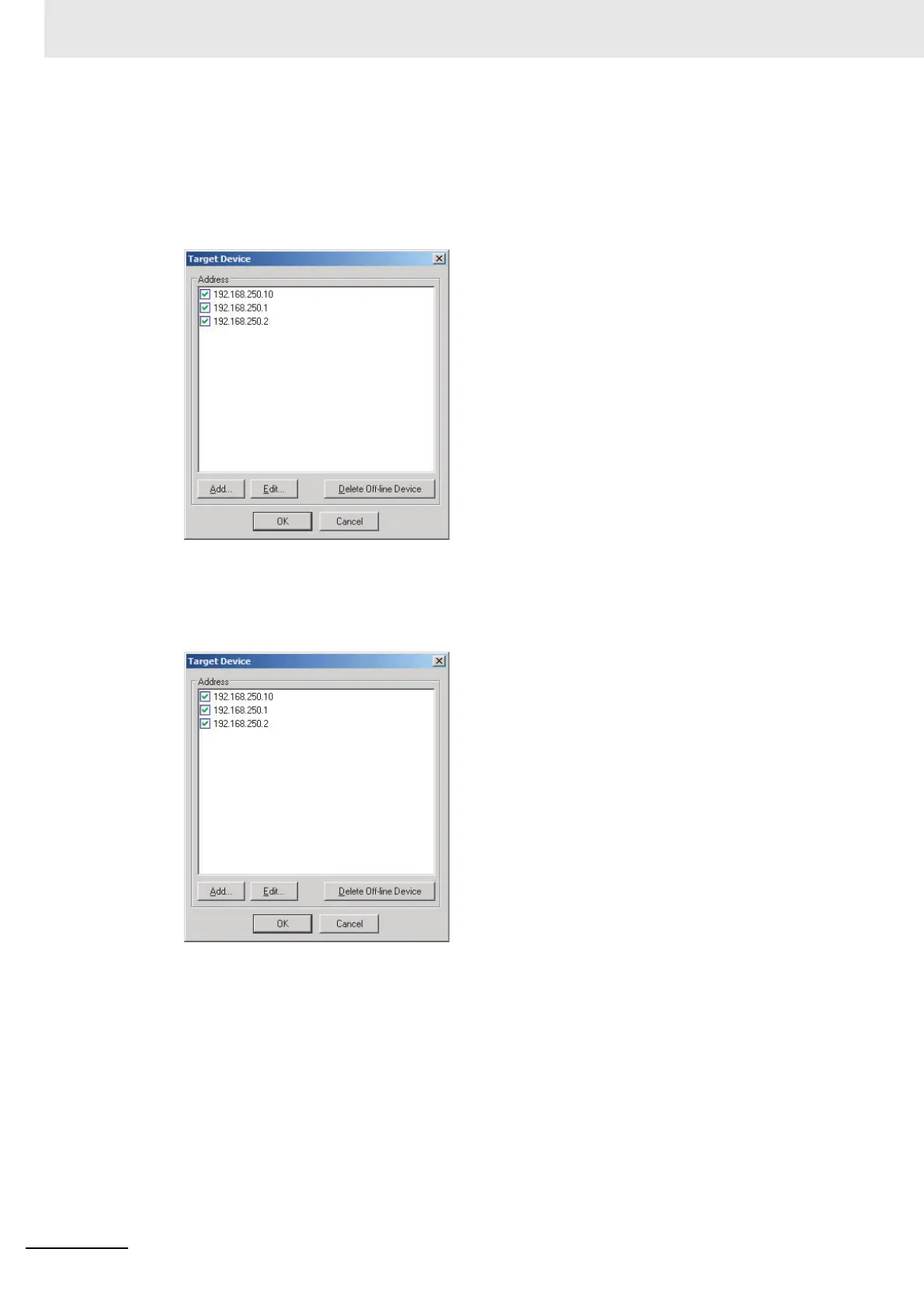

The following dialog box will be displayed. Select the devices for which to upload parameters

and click the OK Button.

Clicking the Cancel Button:

The upload operation is cancelled. The upload is not performed.

If you click the No Button in step 2, the following dialog box is displayed.

Select the devices for which to upload parameters and click the OK Button.
