7 Tag Data Link Functions
7-26
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)

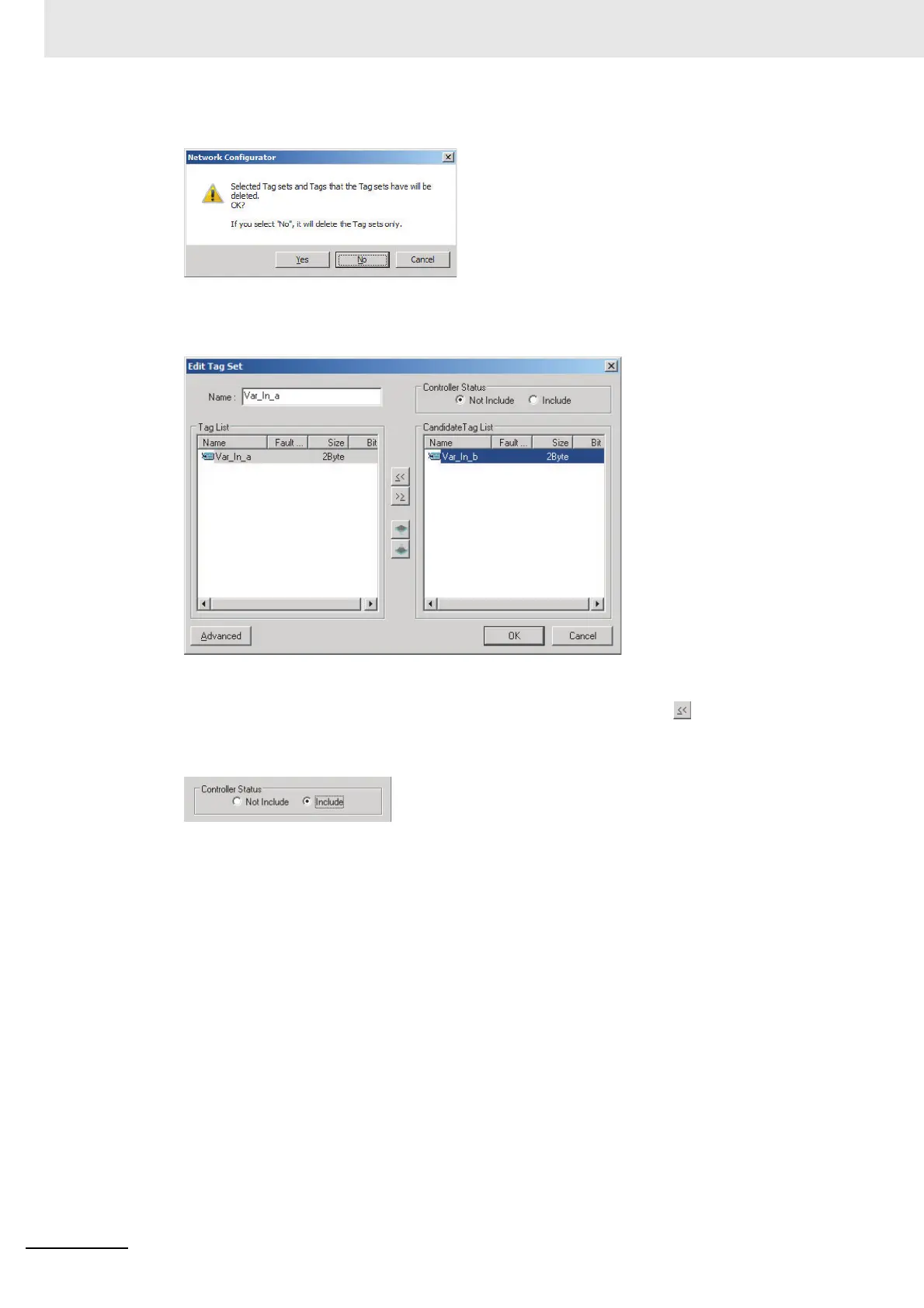

A confirmation message is displayed.
If the No Button is clicked, only the tag set is deleted. Click the No Button.
13
To edit a registered tag set and add tags, either double-click the tag set, or select the tag set and
click the Edit Button. The Edit Tag Set Dialog Box is displayed.
The Tag List on the left side of the dialog box shows the tags that are already registered, and the
Candidate Tag List on the right side of the dialog box shows the other tags that are not regis-
tered yet. To add a tag, select it in the Candidate Tag List and click the Button.
14
To include the Controller status in the tag set, select the Include Option at the upper-right corner
of the dialog box.
15
To confirm a change, click the OK Button in the Edit Tag Set Dialog Box.
16
Click the OK Button in the Edit Device Parameters Dialog Box.
