7-49

7 Tag Data Link Functions

CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)

7-2 Setting Tag Data Links

7-2-8 Connecting the Network Configurator to the Network

Click the OK Button.

Select the network to connect to.

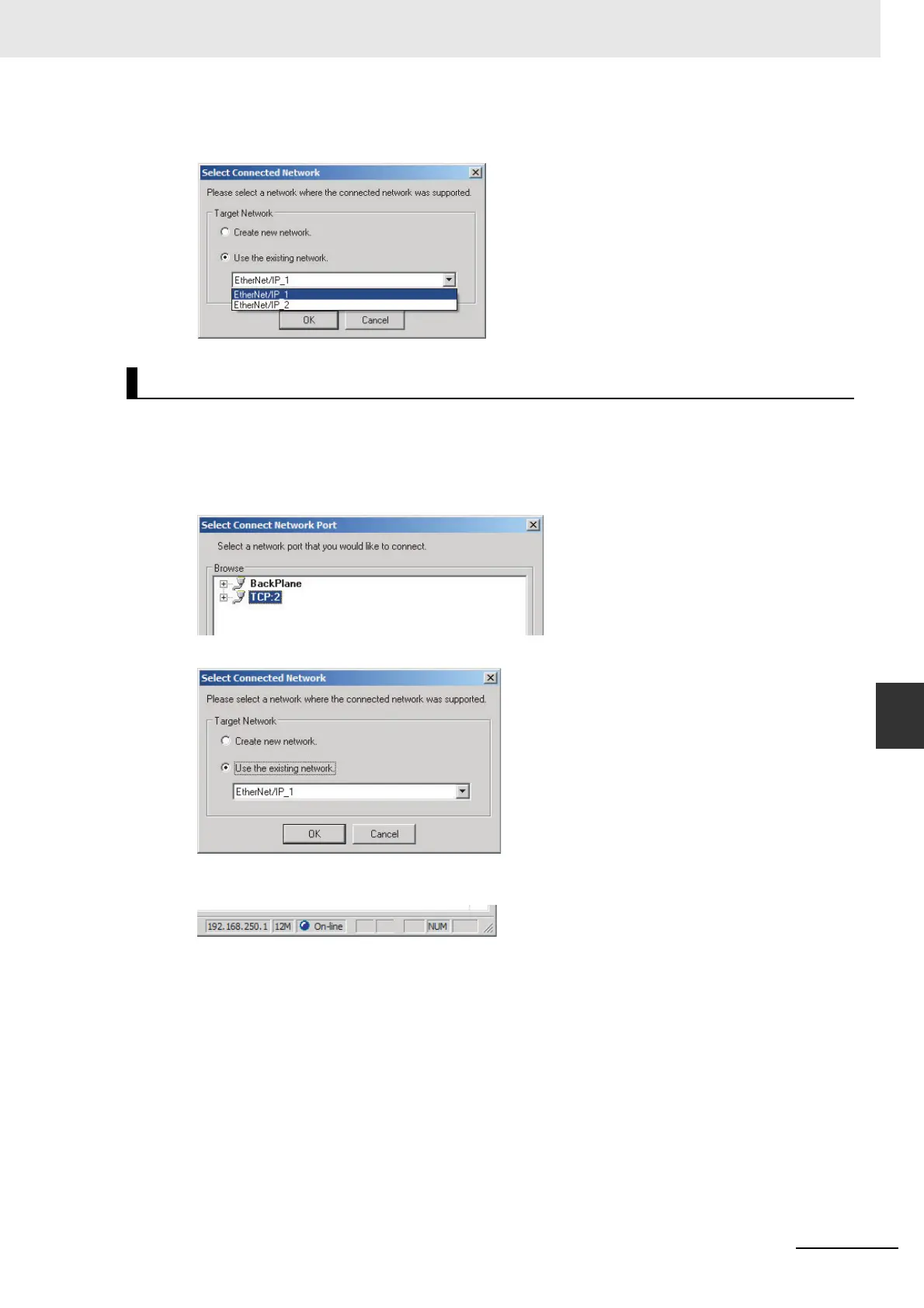

Use the following procedure to connect to the EtherNet/IP Unit via the USB port on the CPU Unit.

Select the communications interface.

Select Option

−

Select Interface

−

NJ Series USB Port.

Select TCP:2 and then click the OK Button.

Select the network to connect.

The Network Configurator will connect to the EtherNet/IP network. If the Network Configurator

goes online normally, “On-line” is displayed in the status bar at the bottom of the window.
