Omron CJ1W-EIP21 User Manual

7-51
7 Tag Data Link Functions
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)
7-2 Setting Tag Data Links
7

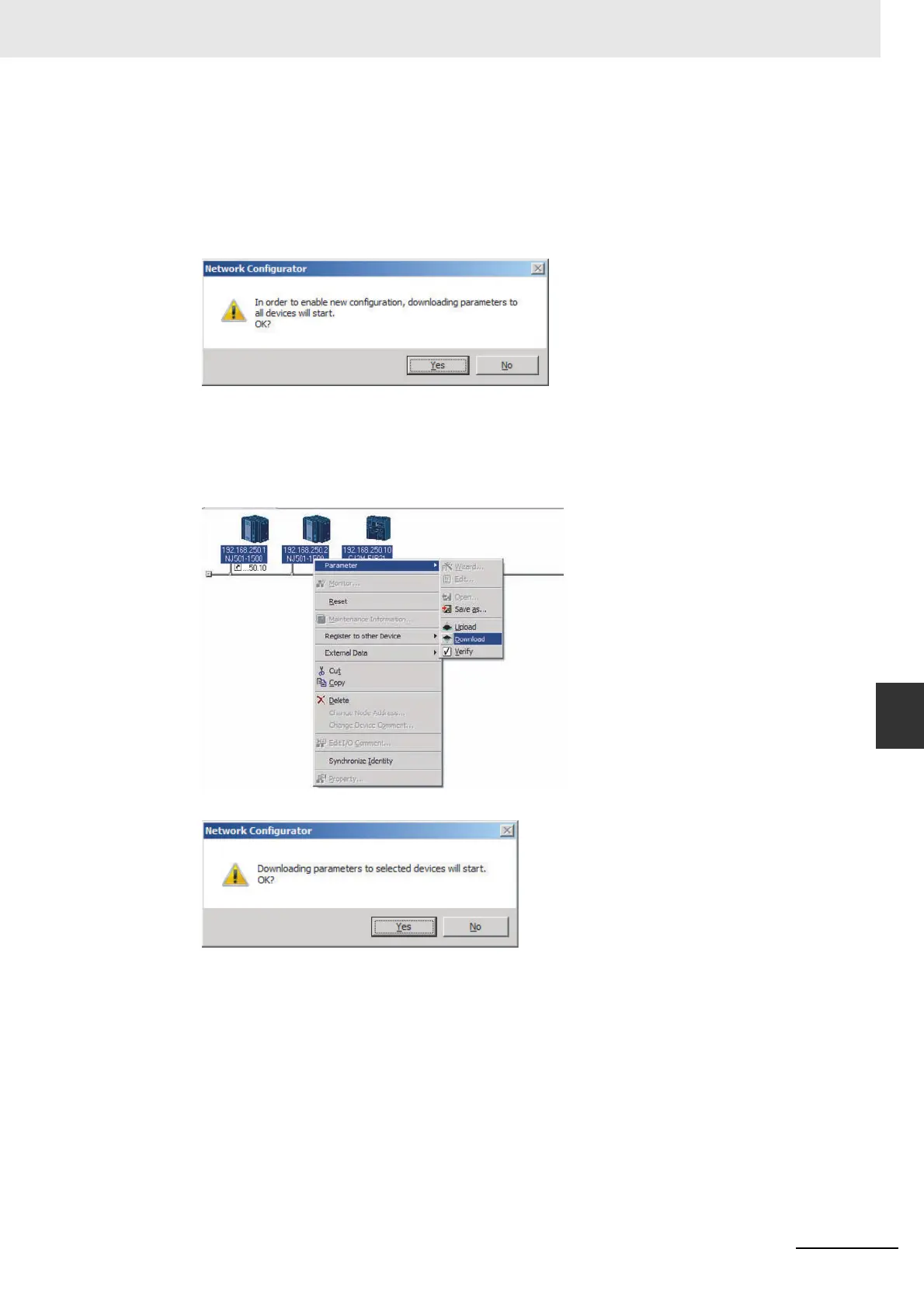

7-2-9 Downloading Tag Data Link Parameters
1 Connect the Network Configurator online.
2 There are two ways to download the parameters.
Downloading to All Devices in the Network
Select Network
− Download.
The following dialog box is displayed.
Downloading Individually to Particular Devices
Select the icon of the EtherNet/IP Unit to which you want to download. To select multiple nodes,
hold down the Shift Key while you click the icons. (In the following example, 2 nodes are
selected: 192.168.250.1 and 192.168.250.2.) Right-click the icon to display the pop-up menu,
and select Parameter
− Download.
The following dialog box is displayed.
