8 Message Communications
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)
8-2 Using CIP Message Communications
8
8-2-4 Route Path
 Communicating between EtherNet/IP Units

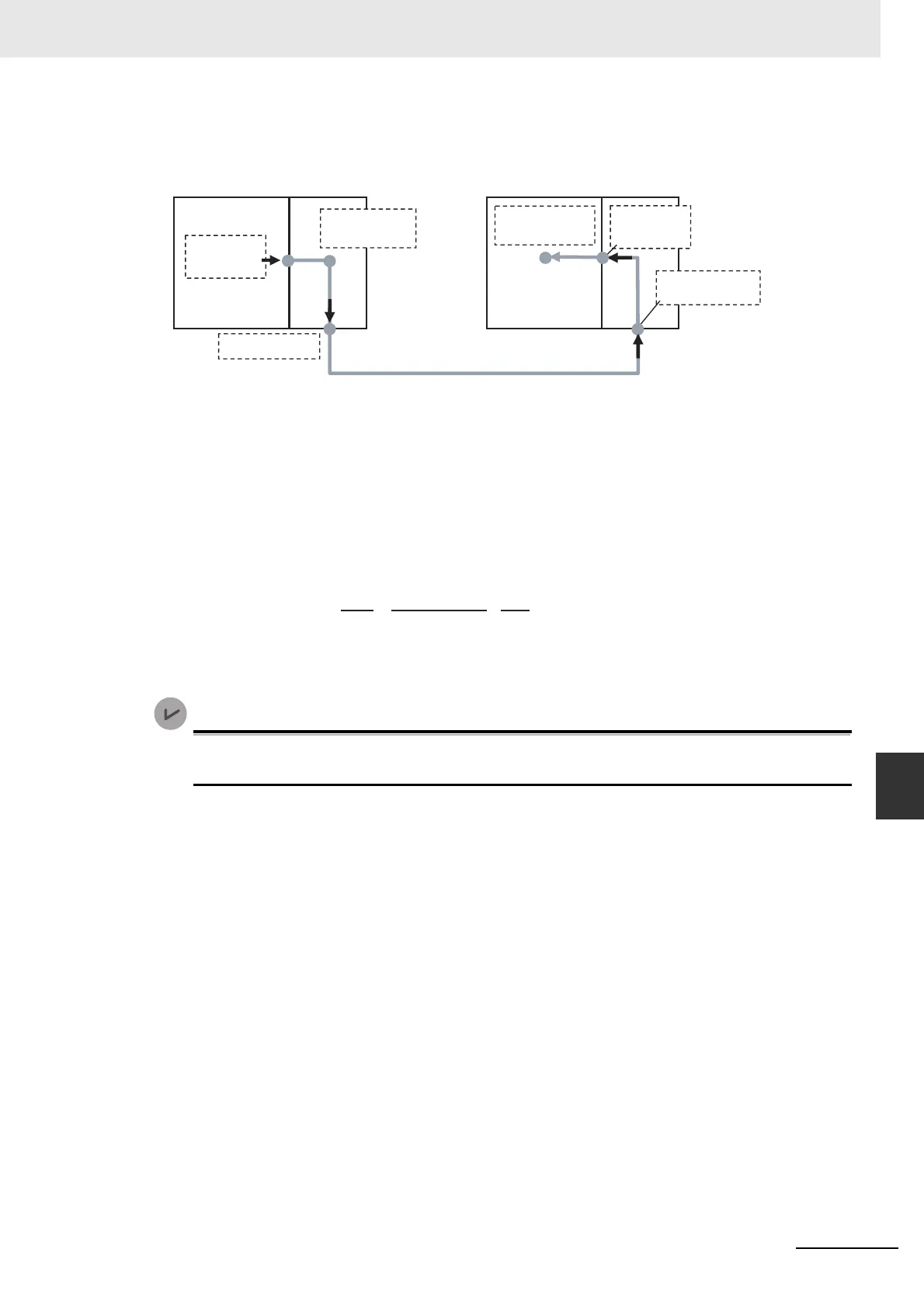

Example: Communicating via EtherNet/IP Units Mounted to CPU Unit 1 and CPU Unit 2
(1) CPU Unit 1 to EtherNet/IP Unit 1
• Network type number: “#01” (Output the command via internal backplane port.)
• Remote address: “#11” (Unit address of EtherNet/IP Unit (Unit number: 1+10 hex))
(2) EtherNet/IP Unit 1 to EtherNet/IP Unit 2
• Network type number: “#02” (Output the command via EtherNet/IP port.)
• Remote address: Specify the remote IP address.
(3) EtherNet/IP Unit 2 to CPU Unit 2
• Network type number: “#01” (Output the command via internal backplane port.)
• Remote address: “#00” (unit address of CPU Unit)
Version Information
You can use the CJ1W-EIP21 EtherNet/IP Unit mounted to an NJ-series Controller with a CPU
Unit with unit version 1.01 or later and Sysmac Studio version 1.02 or higher.
EtherNet/IP port
IP address:
192.168.250.2
Backplane
port #01
Unit address
00 hex
Unit address
11 hex
Communications
port (#02)
Backplane
port #01
EtherNet/IP Unit 2
CPU Unit 2EtherNet/IP Unit 1
CPU Unit 1
(3) Unit address of remote CPU Unit
\01\#11\02\192.168.250.2\01\#00
(2) IP address of remote EtherNet/IP Unit
(1) Unit address of Local EtherNet/IP Unit (Unit number: 1+10 hex)
Route path
(1) (2)
:
(3)
