13 Troubleshooting
13-4
CJ-series EtherNet/IP Units Operation Manual for NJ-series CPU Unit (W495)
 Status 2 Tab Page

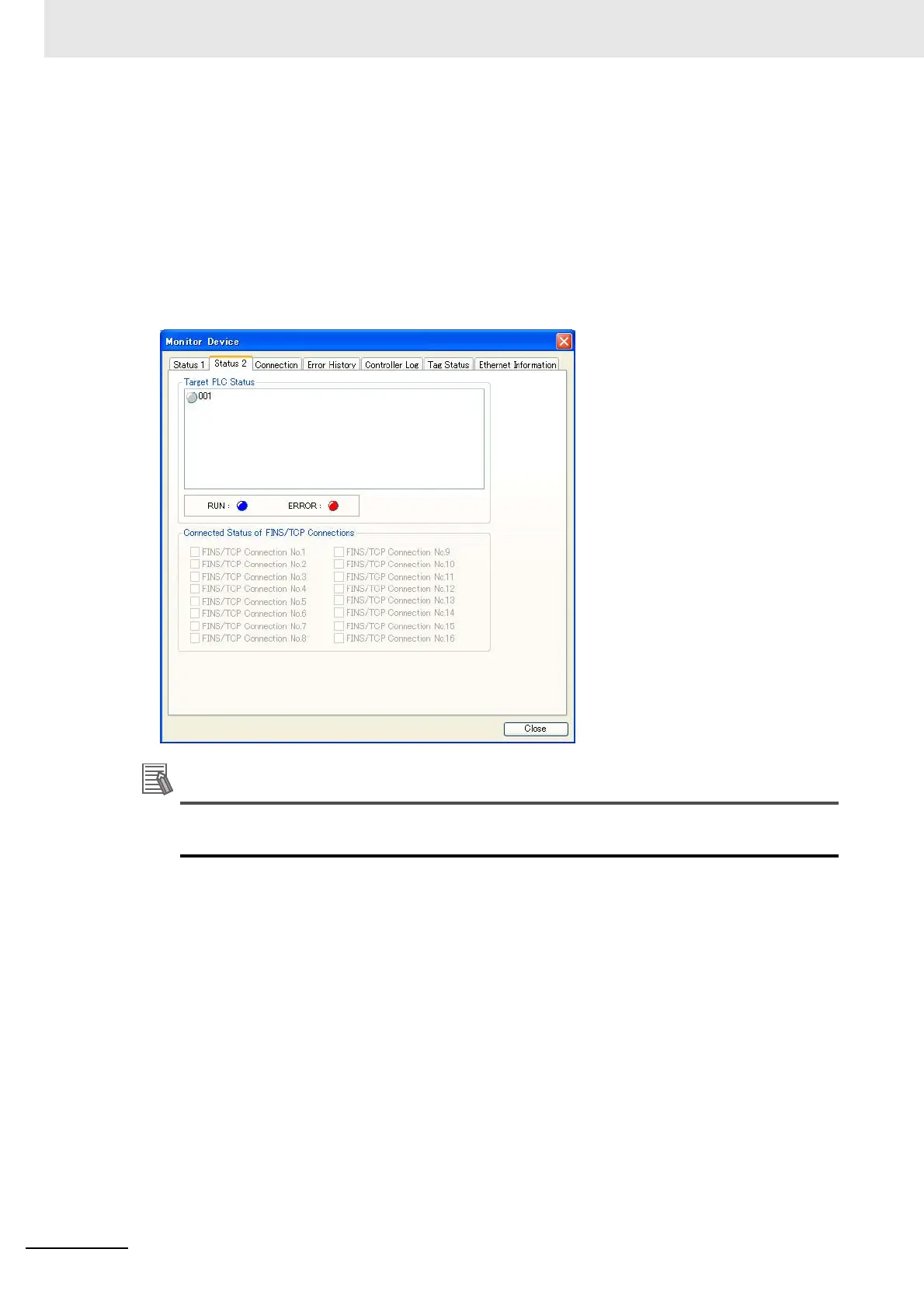

The Target Controller Status Area on the Status 2 Tab Page shows the Target Node PLC Operating
Flags and Target Node PLC Error Flags from the Normal Target Node Table of the target table infor-
mation that you can monitor with the device variables for the CJ-series Unit for status for the nodes
for which the EtherNet/IP Unit is set as the originator of the tag data links. The node is displayed in
blue if the connection is normal, or red if there is an error. The Connected Status of FINS/TCP Con-
nections Area shows the status of FINS/TCP connections. The check box is selected if the corre-
sponding connection is established. The Connected Status of FINS/TCP Connections Field shows
the status of FINS/TCP connections. There will be a check mark in the box when the corresponding
connection is established (connected).
Additional Information
The target Controller status can be used when the Controller status is selected for all the target
sets for both originator and target connections. If it is not selected, it is grayed out on the display.
