A-1
Dimensions

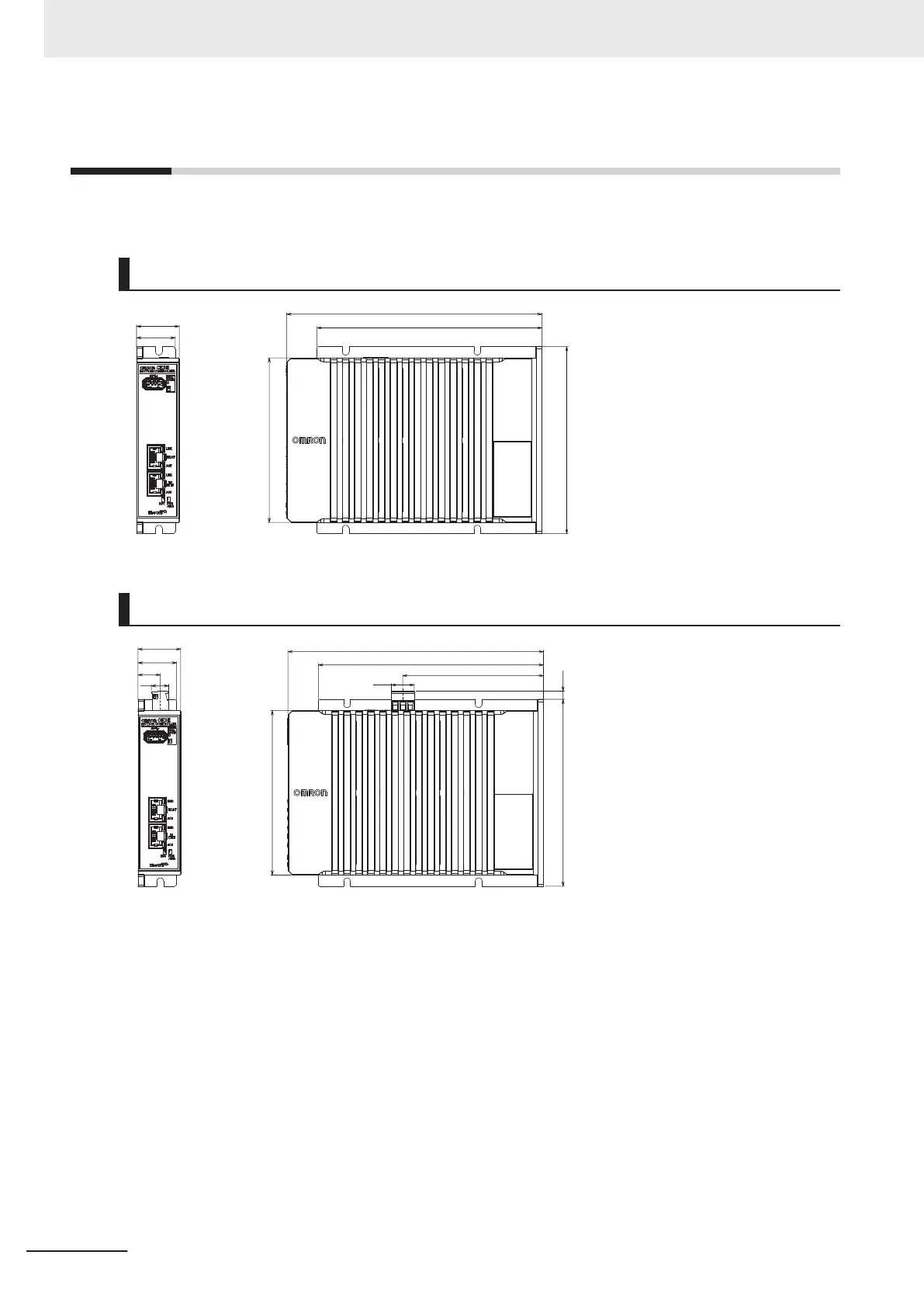

Dimensions are shown below. The unit of dimension is millimeters.
Main Body Only
125
150.5
170.9
110
28.6
25.8
With Power Connector
110
125
150.5
170.9
14.9
28.6
94.1
15.2
11.6
25.8
5.4
Appendices
A-2
CK3E-series Programmable Multi-Axis Controller User’s Manual Hardware (I610)
