Specifications
15

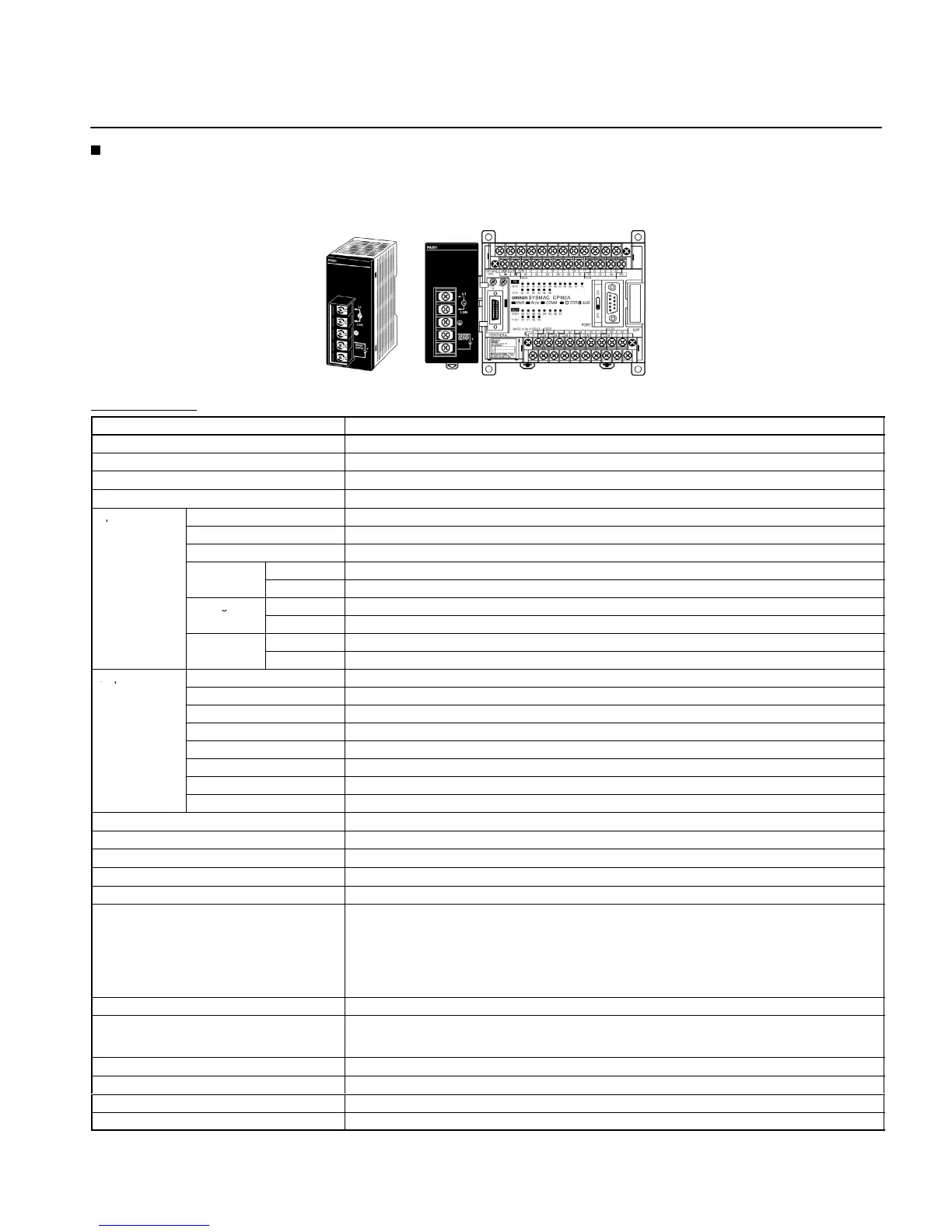

CPM2C-PA201 AC Power Supply Unit
The CPM2C-PA201 is a compact, streamlined Unit that can be used as the power supply for PCs, such as the CPM1A and CPM2A,
and indicators. (When using the CPM2C-PA201, connection must be performed by the user.)
AC Power
Supply Unit
Specifications
Item Specification
Rated output 15 W
Output voltage 24 VDC
Output current 600 mA
Efficiency 75% min. (at rated output)
Input conditions
Rated voltage 100 to 240 VAC
p
Allowable voltage range 85 to 264 VAC
Frequency 47 to 63 Hz
Current
100 V 0.4 A
C
200 V 0.2 A
Leakage
t
100 V 0.5 mA max. (at rated output)
g
current
200 V 1 mA max. (at rated output)
Inrush current
100 V 15 A (at 25°C cold start)
200 V 30 A (at 25°C cold start)
Output
htiti
Output voltage accuracy 5%/–10% max.;10%/–15% max. (including input, load, and temperature fluctuations)
Op
characteristics
Minimum output current 30 mA
Ripple noise voltage 2% (p-p) max.
Input fluctuation 0.75% max.
Load fluctuation 4% max.
Temperature fluctuation 0.05%/°C max.
Startup time 300 ms max. (at input voltage of 100 VAC or 200 VAC and the rated output)
Output hold time 10 ms (at input voltage of 100 VAC or 200 VAC and the rated output)
Overcurrent protection Self-resetting, operates at 105% to 335% of the rated current, suspended and intermittent operation
Overvoltage protection None
Ambient operating temperature 0 to 55°C
Ambient storage temperature –20 to 70°C (no condensation or icing)
Ambient operating humidity 10% to 90%
Dielectric strength 2,000 V for 1 min between all inputs and GR
Detection current: 10 mA
3,000 V for 1 min between all inputs and all outputs
Detection current: 10 mA
1,000 V for 1 min between all outputs and GR
Detection current: 10 mA
Insulation resistance 100 MΩ min. at 500 VDC between all outputs and any input, and between all outputs and GR
Vibration resistance 10 to 57 Hz, double amplitude of 0.075 mm, 57 to 150 Hz, acceleration: 9.8 m/s
2
in X, Y, and Z directions for
80 minutes according
(Time coefficient: 8 minutes × coefficient factor 10 = total time 80 min.)
Shock resistance 147 m/s
2
3 times each in X, Y, and Z directions
Noise terminal voltage FCC class A
Weight 250 g max.
External dimensions 40 × 65 × 90 mm (W × H × D)
