System Configuration
7

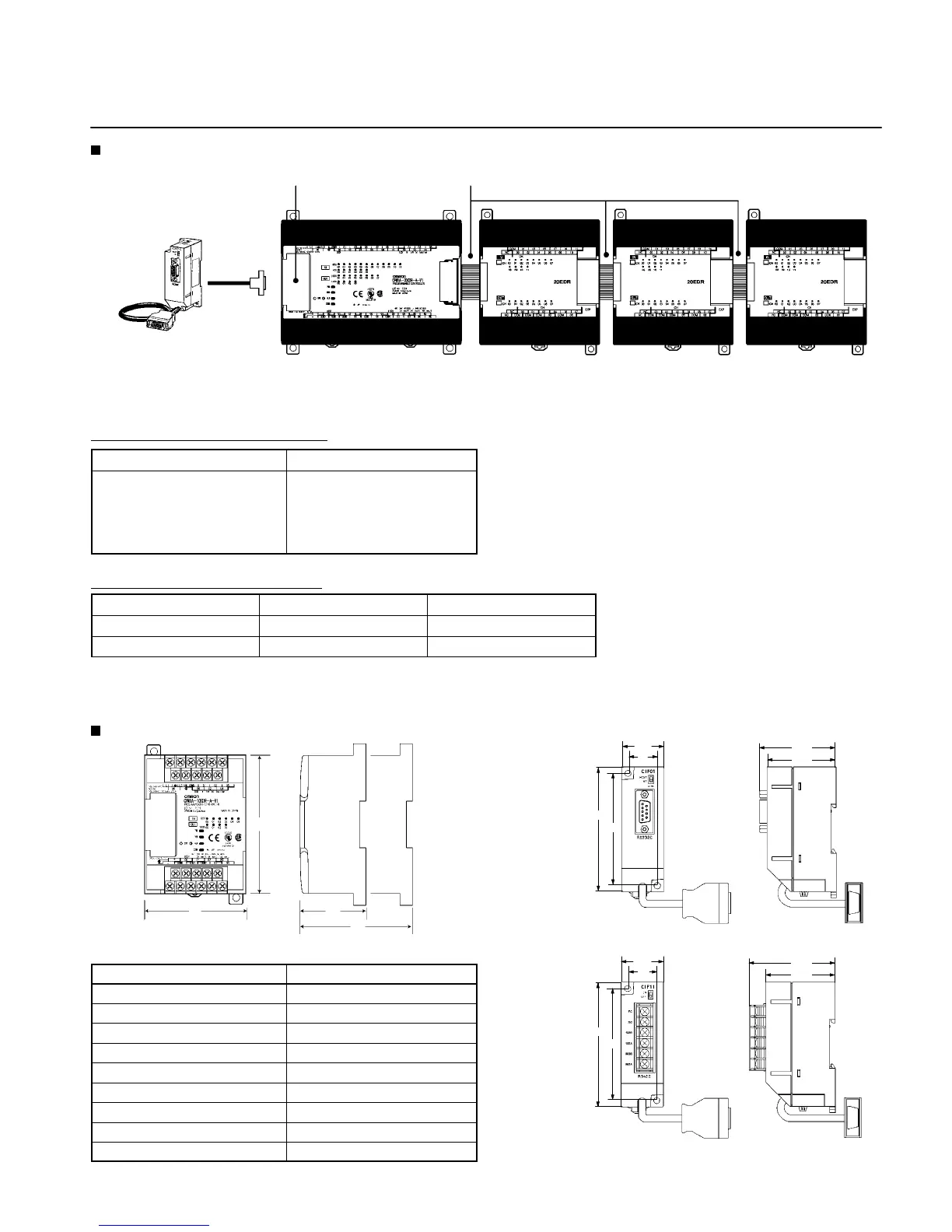

CPM1A System Configuration
CPM1-CIF01/CIF11 Adapter
Peripheral port Connecting cable
Both AC and DC power supplies.
30-point CPU and 40-point CPU only.
May be expanded up to a maximum
of 3 Units.
Expansion I/O Unit Expansion I/O Unit Expansion I/O Unit
Connection Groups for Expansion Units
Group 1 (G1) Group 2 (G2)
Expansion I/O Units,
Analog I/O Unit,
CompoBus/S I/O LInk Unit
DeviceNet I/O Link Unit
CPM1A-TS001/101
CPM1A-TS002/102
In addition to the CPU Unit, Expansion Units from the groups indicated in the above table can be combined as shown below.
Possible Expansion Unit Combinations
Expansion Unit 1 Expansion Unit 2 Expansion Unit 3
G1 G1 G1
G2 G1 ---
Note: 1. Expansion Units 1, 2, and 3 can be mounted in any order.
2. Only one Expansion Unit can be mounted if an NT-AL001 is connected to the RS-232C port.
External Dimensions
DC power supply
AC power supply
Unit: mm
W
90
50
70
Model W (mm)
CPM1A-10CDj-A-V1/D-V1
66
CPM1A-20CDj-A-V1/D-V1
86
CPM1A-30CDj-A-V1/D-V1
130
CPM1A-40CDj-A-V1/D-V1
150
CPM1A-20EDj
86 (depth: 50 mm)
CPM1A-8Ej/SRT21
66 (depth: 50 mm)
CPM1A-MAD01 66 (depth: 50 mm)
CPM1A-TSjjj/MAD11
86 (depth: 50 mm)
CPM1A-DRT21 60 (depth: 50 mm)
CPM1-CIF01
CPM1-CIF11
21
90
81
30
50
56
21
90
81
30
50
61
