Omron CS1W User Manual

System Configuration
15

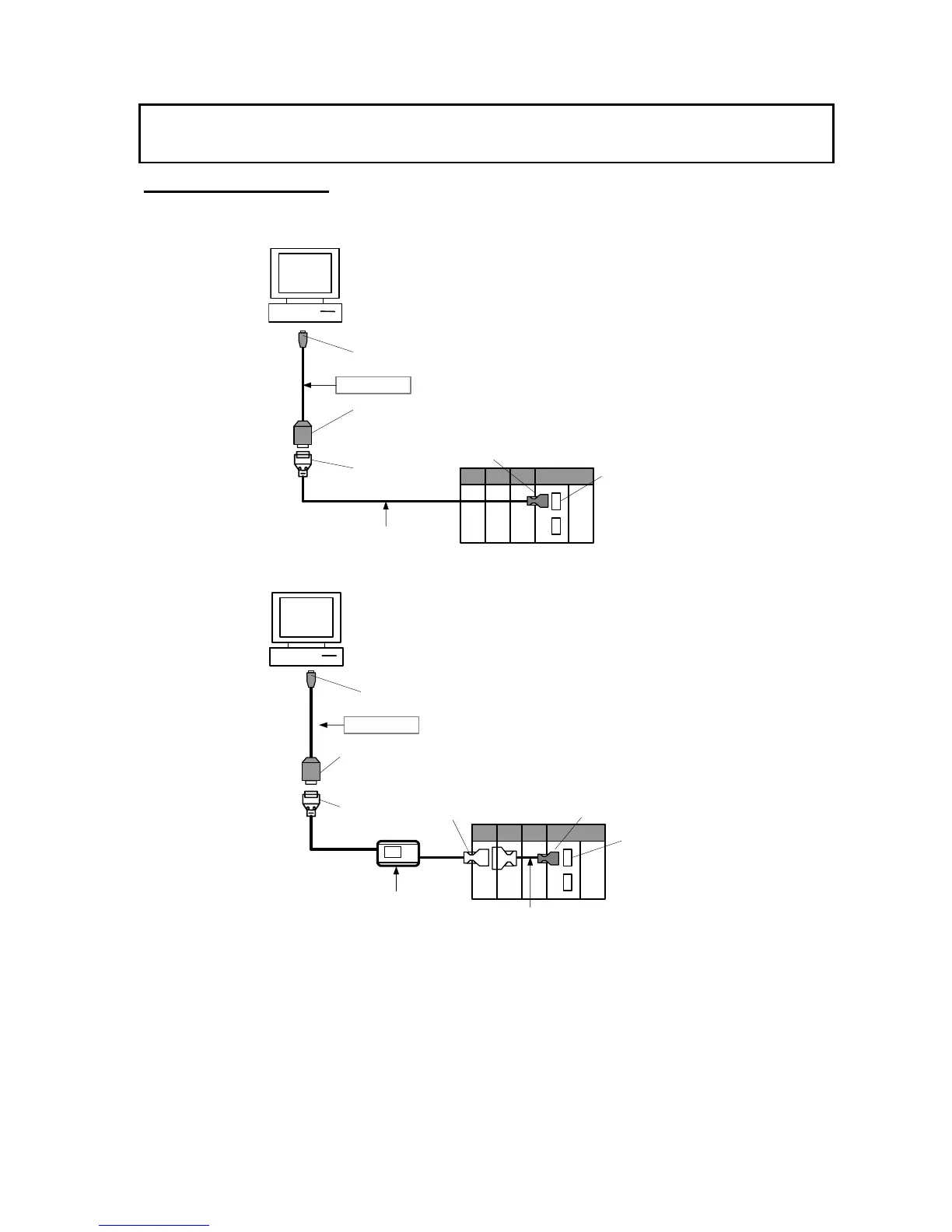

System Configuration
CS/CJ-series PLCs
● Connecting to the Peripheral Port
• Using a CS1W-CN226/626 Cable
USB type A plug, male
D-sub Connector
(9-pin male)
Recommended cable:
CS1W-CN226/626
D-sub Connector
(9-pin female)
Peripheral port
CS1W-CIF31
CS/CJ-series peripheral connector
CS/CJ-series PLC connection
Customizable Counter Unit connection
• Using a CQM1-CIF02 Cable
Peripheral port
D-sub Connector
(9-pin female)
Recommended cable:
CQM1-CIF02
D-sub Connector
(9-pin male)
C-series peripheral connector
CS1W-CN114
CS/CJ-series peripheral
connector
CS/CJ-series PLC connection (see note)
CS1W-CIF31
USB type A plug, male
Note: With a CS/CJ-series PLC, the connection must be a host link connection.
