Omron CS1W User Manual

System Configuration
20
CVM1 and CV-series PLCs

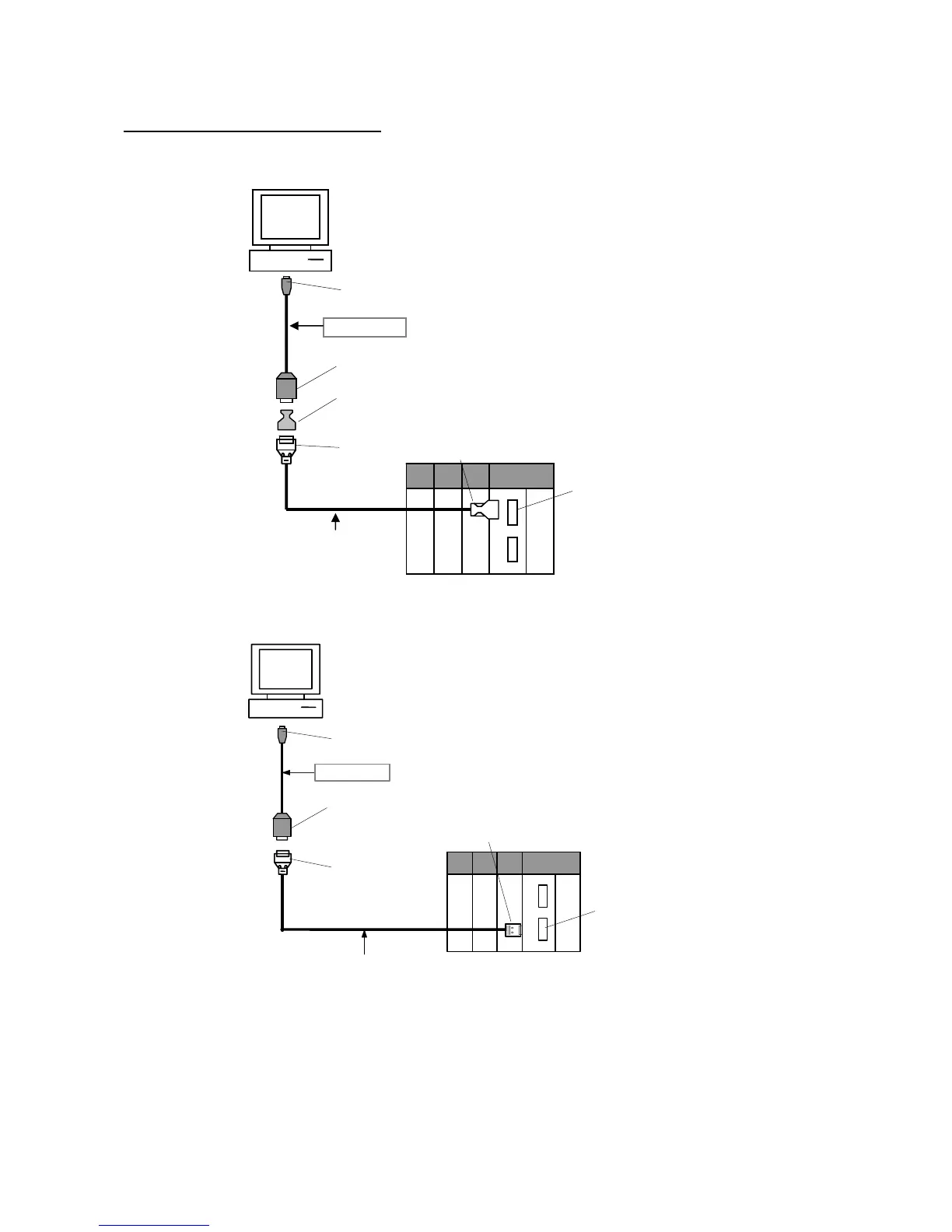

● Connecting to the Peripheral Port
• Using a CV500-CIF01 Cable
CV-series peripheral connector
Peripheral port
D-sub Connector
(25-pin male)
Recommended cable:
CV500-CIF01
D-sub Connector
(9-pin male)
CVM1/CV-series PLC connection
CS1W-CIF31
USB type A plug, male
D-sub 25-pin (female) to
9-pin (female) Adapter
● Connecting to the RS-232C Port
• Using a XW2Z-200S-V/500S-V Cable
CVM1/CV-series PLC connection
RS-232C port
D-sub Connecto
r
(9-pin female)
D-sub Connector
(9-pin male)
CS1W-CIF31
USB type A plug, male
D-sub Connector
(9-pin female)
Recommended cable:
XW2Z-200S-V/500S-V
D-sub Connector (9-pin male)
