Omron CS1W - CQM1 H and CPM2 C PLCs

System Configuration
17
C-series PLCs
█ C200HS, C200HX/HG/HE, C200H, C1000H, C2000H, CQM1, CPM1, CPM1A,
CPM2A, or SRM1

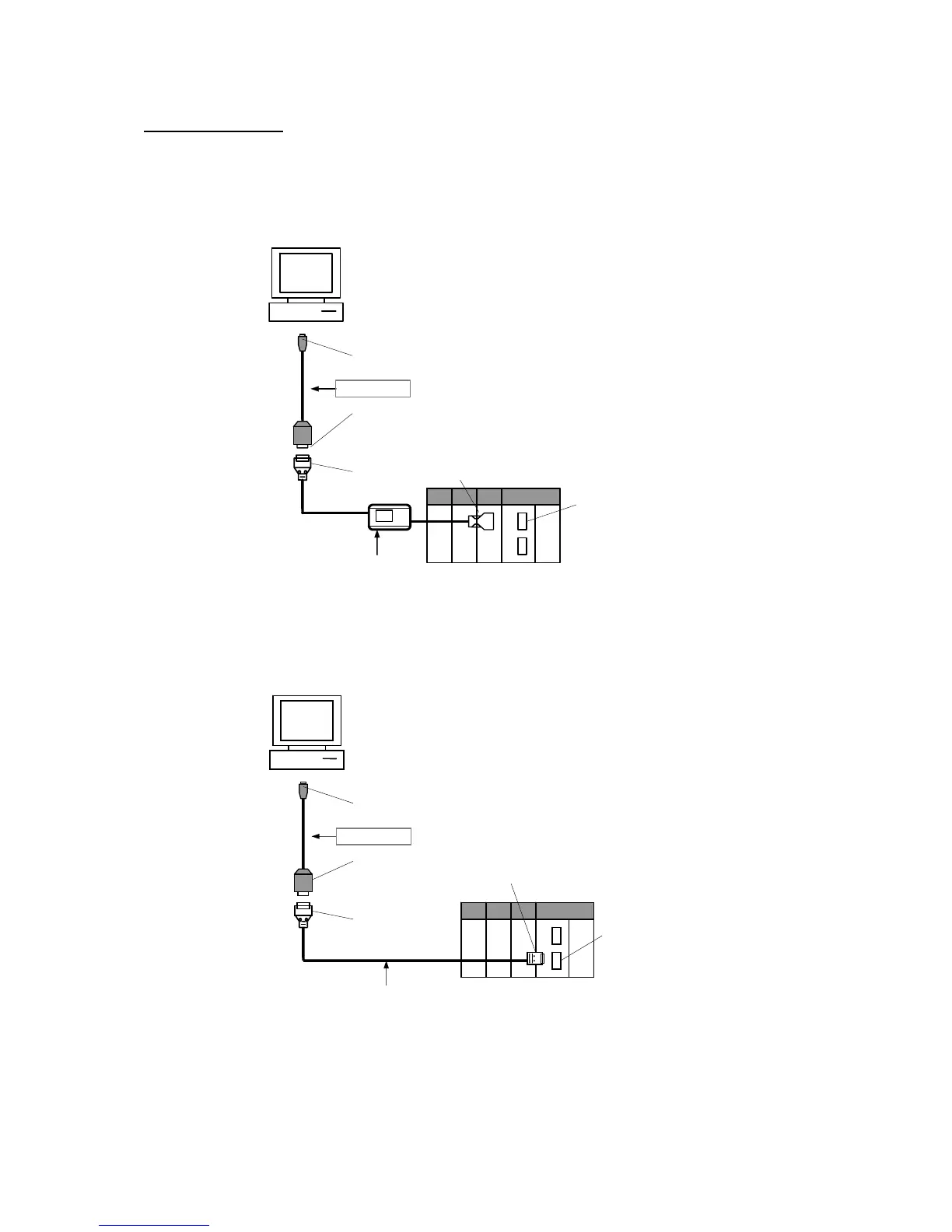

• Connecting to the Peripheral Port
Using a CQM1-CIF02 Cable
Peripheral port
Note: To connect with the
C200H/C1000H/C2000H,
C200H-IP007 is required.
D-sub Connector
(9-pin female)
Recommended cable:
CQM1-CIF02
D-sub Connector
(9-pin male)
C-series peripheral connector
C-series PLC connection
CS1W-CIF31
USB type A plug, male
• Connecting to the RS-232C Port
Using a XW2Z-200S-CV/500S-CV or XW2Z-200S-V/500S-V Cable for an RS-232C
Connection
RS-232C port
D-sub Connecto
r
(9-pin female)
D-sub Connector
(9-pin female)
Recommended cable:
XW2Z-200S-CV/500S-CV
or
XW2Z-200S-V/500S-V
D-sub Connector
(9-pin male)
D-sub Connector
(9-pin male)
C-series PLC connection
CS1W-CIF31
USB type A plug, male
