Omron CS1W User Manual

System Configuration
18

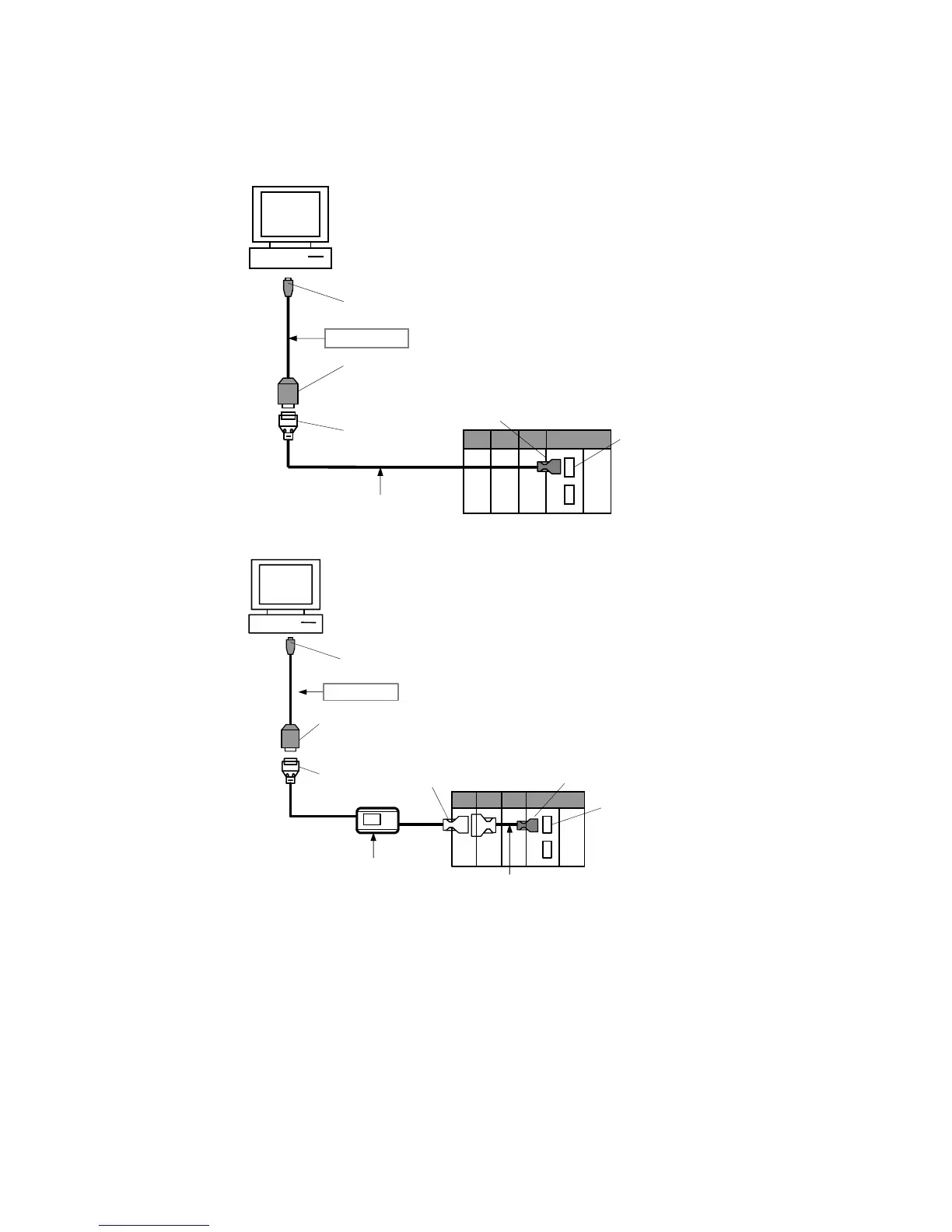

█ CQM1H and CPM2C PLCs
• Connecting to the Peripheral Port
Using a CS1W-CN226/626 Cable
Recommended cable:
CS1W-CN226/626
D-sub Connector
(9-pin male)
D-sub Connector
(9-pin female)
Peripheral port
USB type A plug, male
CS1W-CIF31
CS/CJ-series peripheral connector
CQM1H PLC connection
CPM2C PLC connection
Using a CQM1-CIF02 Cable
Peripheral port
D-sub Connector
(9-pin female)
Recommended cable:
CQM1-CIF02
D-sub Connector
(9-pin male)
C-series peripheral connector
CS1W-CN114
CS/CJ-series peripheral connector
CQM1H PLC connection
CPM2C PLC connection
CS1W-CIF31
USB type A plug, male
USB type A plug, male
Note: With a CS/CJ-series PLC, the connection must be a host link connection.
