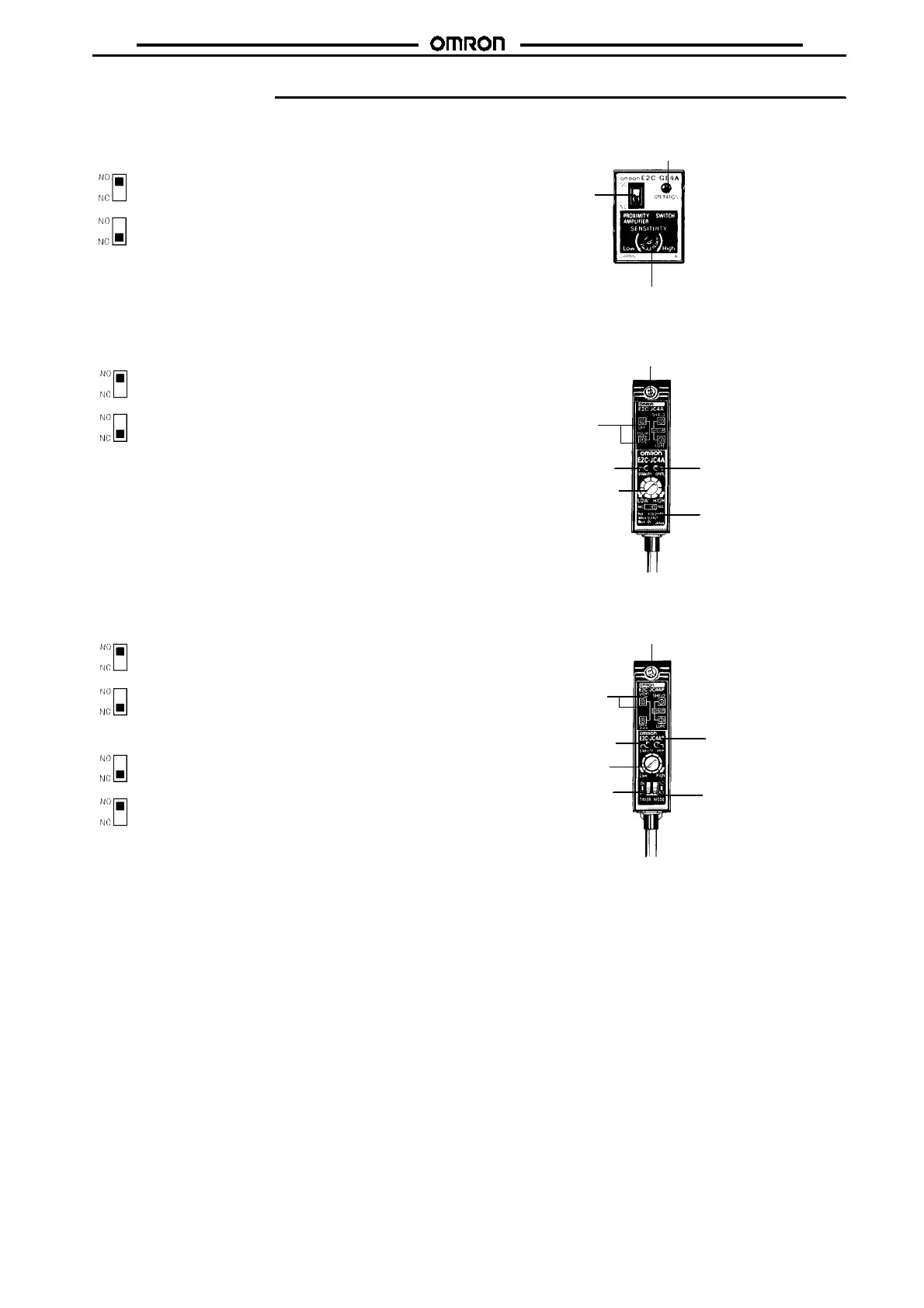

Nomenclature
E2C-G
j
4
j
Single-function Model
The output transistor is ON when the
sensing object is detected.
The output transistor is ON when the
sensing object is not detected.
Operation indicator (red)
Operation selector
Sensitivity adjuster (4-turn potentiometer)
Settings
E2C-JC4A Multi-function Model
OFF-delay Timer
The 40-ms OFF-delay timer will be enabled if the OFF-delay
terminals are short-circuited.
The output transistor is ON when the
sensing object is detected.
The output transistor is ON when the
sensing object is not detected.
Mounting screw
OFF-delay terminals
Stability indicator Operation indicator
Operation selector
Sensitivity adjuster
Settings
E2C-JC4AP Self-diagnostic Output Model
The output transistor is ON when the
sensing object is detected.
The output transistor is ON when the
sensing object is not detected.
The OFF-delay timer is disabled.
The 40-ms OFF-delay timer is enabled.
Mounting screw
Stability indicator
Operation indicator
Operation selector
Sensitivity adjuster
Cable length selector
terminals
Timer switch
OFF-delay Timer
Cable Length Compensation
The type of cable length compensation is selectable with the cable length selector terminals.
1 to 3 m: Short-circuit the cable length selector terminals.
3 to 5 m: Open the cable length selector terminals.
Settings
