Omron E2C - Cable Length Compensation; E2 C-WH4 A(F) Compensation Settings; E2 C-Aj 4 A Compensation Settings

E2C
E2C
12

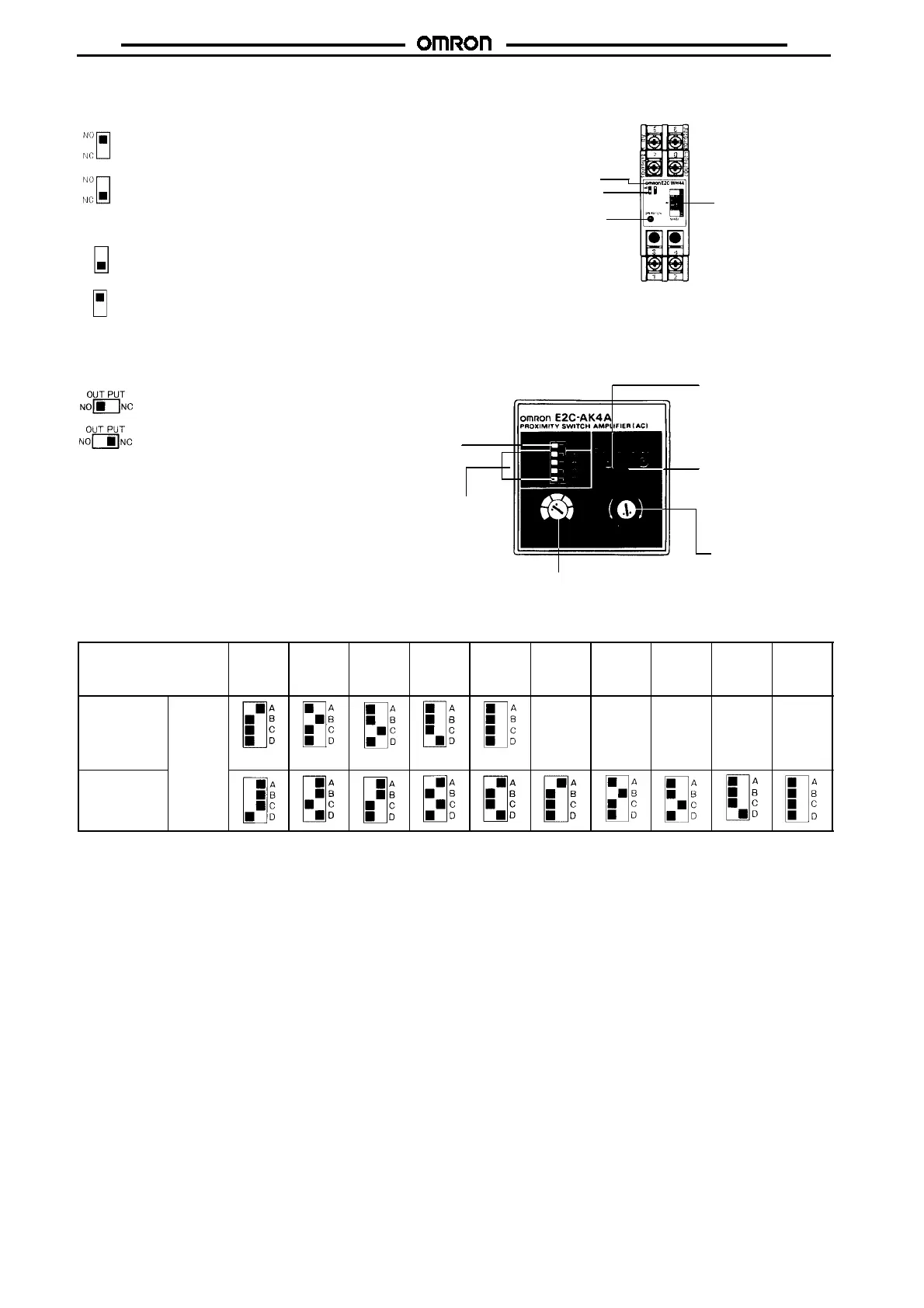

E2C-WH4A(F) Multi-function Model
The output transistor is ON when the
sensing object is detected.
The output transistor is ON when the
sensing object is not detected.
Operation selector
The cable length of the Proximity Sensor in use is set to 3 m.
The cable length of the Proximity Sensor in use is set to 5 m.
Operation indicator (red)
Cable length selector switch
Sensitivity adjuster
(4-turn potentiometer)
5m
3m
5m
3m
Cable Length Compensation Switch
Settings
E2C-A
j
4A Multi-function Model
The output transistor is ON when
the sensing object is detected.
The output transistor is ON when
the sensing object is not detected.
Operation
selector
Cable length
compensation
switch
Operation indicator (red):
Lit when the sensing object
is detected.
Stability indicator (green):
Lit when the Sensor is in
smooth object detection and
non-detection.
(ON: Stable; OFF: Unstable)
Sensitivity adjuster
MD (differential travel) adjuster
Settings
OUTPUT
NO
CABLE
NC
A
B
C
D
Min Max
MD
OPERATION STABILITY
Low High
SENSITIVITY
Cable Length Compensation Switch
Refer to the following table to set the cable length compensation switch according to the cable length.
Cable length
Applicable
Sensors
0to1m 1to2m 2to3m 3to4m 4to5m 5to6m 6to7m 7to8m 8to9m 9to
10 m
E2C-CR8A
E2C-CR8B
E2C-X1A
E2C-C1A
E2C-X1R5A
Switch
settings
of am-
plifier
unit
--- --- --- --- ---
E2C-X2A
E2C-X5A
E2C-X10A
E2C-X20MA
Note:
1. If morethan two Sensorswiththesamediameterand length cable are closely mounted side by side, set the switchto a value that is
1 m different from the actual length. Except for the E2C-C20MA, this method can protect the sensors from mutual interference.
2. Set all the pins of the switch to the left if the E2C-CR5B is used in combination with the E2C-AM4A or E2C-AK4A.
