Omron E5 J Series User Manual

E5jJ
E5jJ

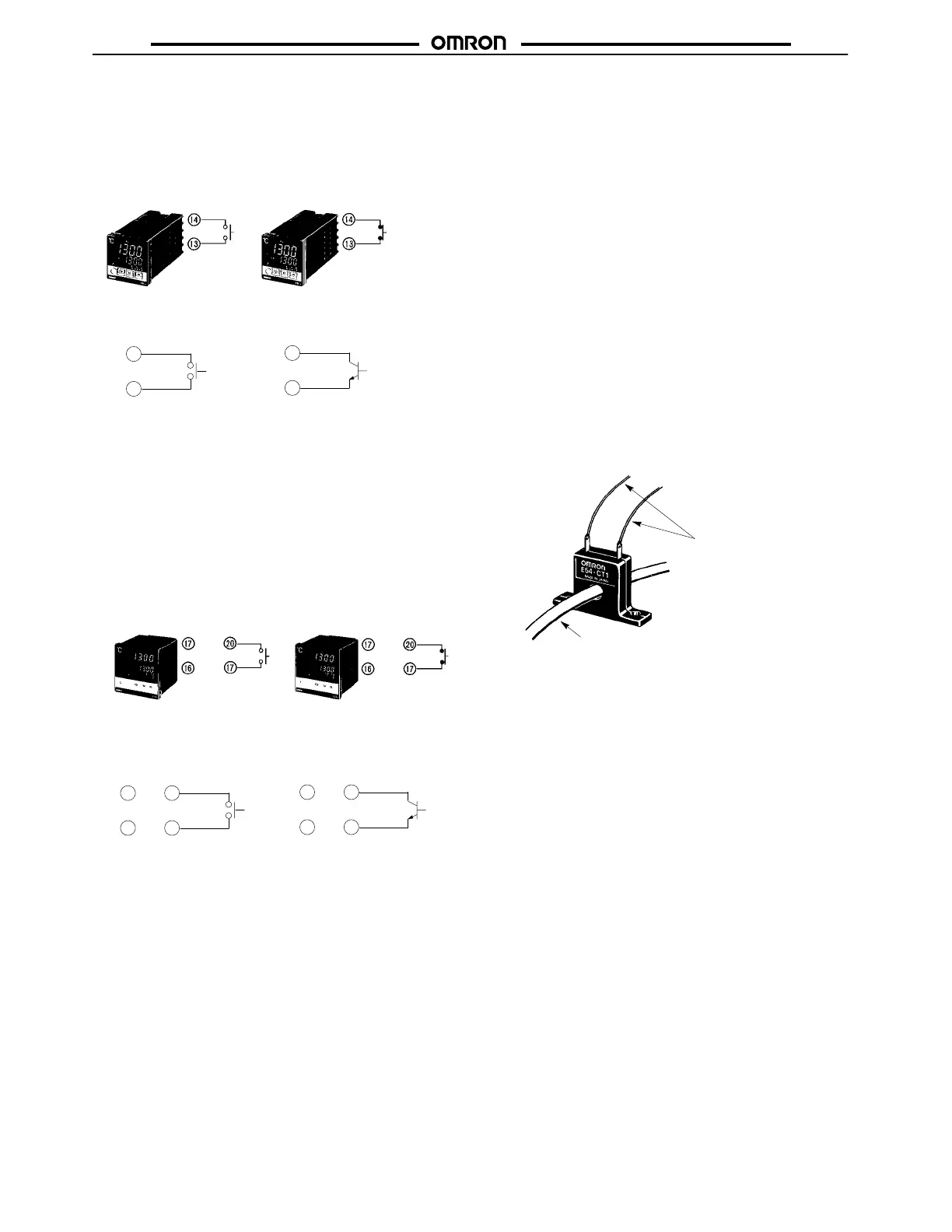

Set Point 1 Setting: spĆ1
Use
the Down and Up Keys to set the set point 1. It is possible to set
the value regardless of whether the set value presently selected is
on SP0 or SP1.
14
13
14
13
Contact Input No-contact Input
(Open Collector)
ON: The resistance is 1 kΩ
max. when short-circui-
ted.
OFF: The resistance is
100 k Ω min. when
opened.
E5CJ
The
set point can be selected by opening or short-circuiting the
EV1 terminals (terminals 13 and 14).
ON: The residual voltage is
3 V min.
OFF: The current leakage is
1 mA max.
Open
Set point 0 (SP0)
Set point 1 (SP1)
Closed
20
17
20
17
Contact Input No-contact Input
(Open Collector)
E5AJ/E5BJ/E5EJ
The
set point can be selected by opening or short-circuiting
the EV1 terminals (terminals 17 and 20). In the case of the
E5BJ,
however , the terminals 16 and 17 of which should be
opened or short-circuited instead.
17
16
17
16
E5BJ E5AJ/E5EJ E5BJ E5AJ/E5EJ
ON: The resistance is 1 kΩ
max. when short-circui-
ted.
OFF: The resistance is
100 k Ω min. when
opened.
ON: The residual voltage is
3 V max.
OFF: The current leakage is
1 mA max.
E5BJ
E5AJ
E5EJ
or
Set point 0 (SP0)
E5BJ
E5AJ
E5EJ
or
Set point 1 (SP1)
or or
Heater Current V alue Display: ct
The
display range is 0.0 to 55.0 A. FFFF will be displayed if the cur -
rent exceeds 55.0 A. When the control output is ON, the current
flowing
to the heater is measured and displayed. If the control output
is, however , turned ON for less than 190 ms, the current flow will not
be measured and the current previously measured will be dis-
played.
Heater Burnout Alarm V
alue Setting: hb
The
current value to detect heater burnout can be set within a range
of 0.0 to 50.0 A.
The current value is factory-set to 0.0 A. Check the normal heater
current
and the current at the time of heater burnout from the heater
current value display , and set the set value to the mean value of the
current values (i.e., set value = (normal current value + heater burn -
out
current) B 2).
If the dif ference between the normal heater current and heater burn -
out
current is small, heater burnout detection will not be stable. For
stable detection, the dif ference in current must be 1.0 A minimum if
the heater input is less than 10.0 A and 2.5 A minimum if the heater
input is 10.0 A or more.
Note: 1. Do not allow a current exceeding 50 A to flow in the CT ;
the
maximum continuous heater current is 50 A.
2. Set the value to 0.0 A if the heater burnout alarm is not
used, in which case the alarm will not function at all.
Connected to T emperature Controller.
Connected to heater.
Current T ransformer Connections
