6 Programless Communications
E5C-T Digital Temperature Controllers Programmable Type Communications Manual (H186)
6-6 Connecting to MELSEC Q-series PLCs
6
6-6-5 Checking Operation

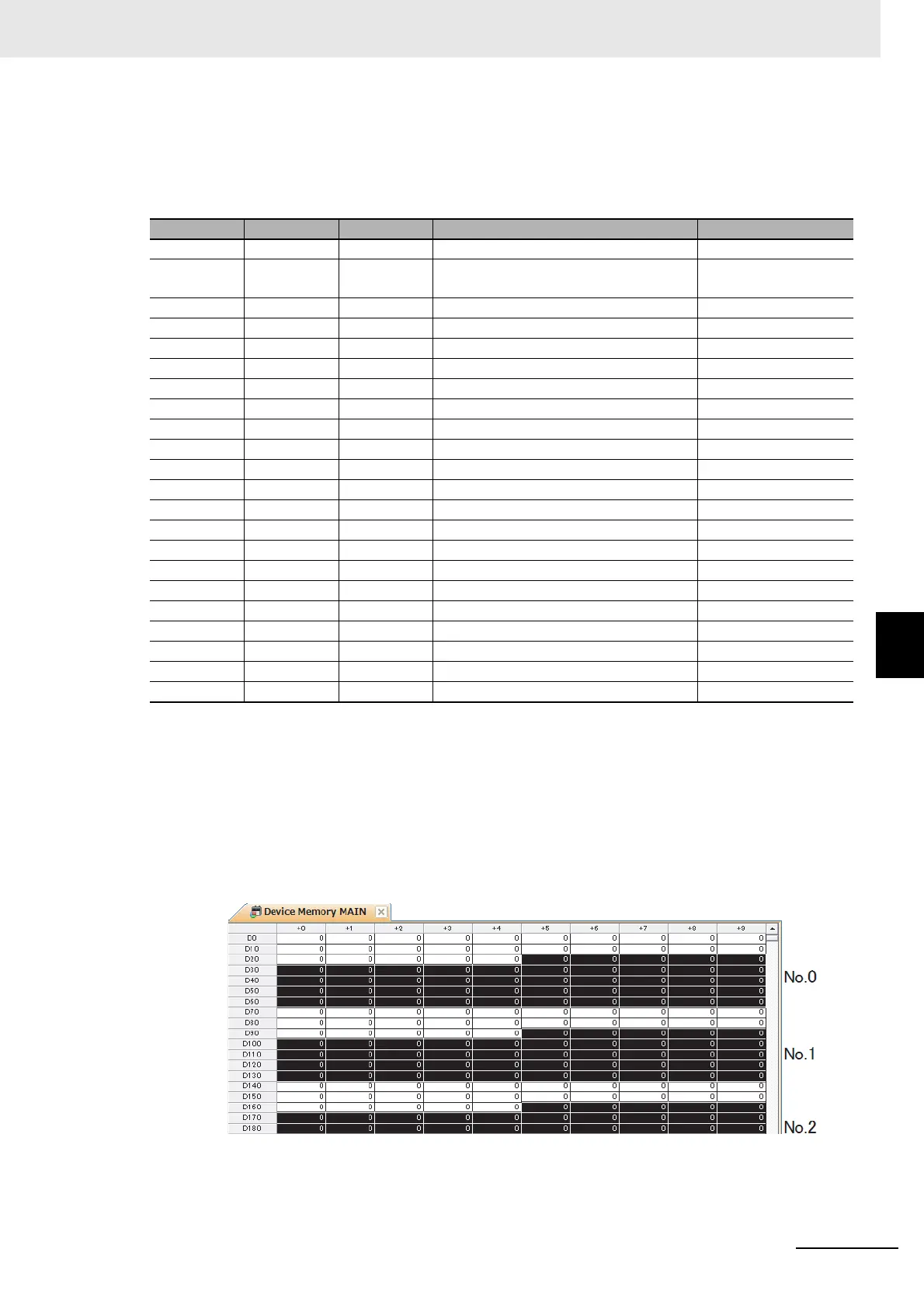

With the default settings, the following parameters are set for the upload areas.
Check the values in the upload areas to see if they are the same as those that are given in
the following table. (It is not necessary to check address for which “---” is given in the Value
column.)
* If the default settings are used and a sensor is not connected, the PV display on the E5CC-T will show an input
error (s.err) and the process value in the upload area will be 1320 (528 hex).
 Changing E5CC-T Settings
(1) We will check the area that is used to change E5CC-T set values.
The area that is used to change the set value is called the download area.
D25 to D69 is the download area for the No. 0 Controller (E5CC-T), D95 to D139 is the
download area for the No. 1 Controller, and D165 to D209 is the download area for the No.
2 Controller.
No.0 No.1 No.2 Parameter Value
D0000 D0070 D0140 Response Flag (fixed) 0
D0001 D0071 D0141 Communications Status (fixed) Alternates between 0
and 1.
D0002 D0072 D0142 Communications Monitor ---
D0003 D0073 D0143 Status (Upper Word) ---
D0004 D0074 D0144 Status (Lower Word) ---
D0005 D0075 D0145 Status 2 (Upper Word) ---
D0006 D0076 D0146 Decimal Point Monitor ---
D0007 D0077 D0147 Process Value Process Value *
D0008 D0078 D0148 Present SP ---
D0009 D0079 D0149 Internal Set Point ---
D0010 D0080 D0150 Heater Current 1 Value Monitor ---
D0011 D0081 D0151 PID Set No. Monitor ---
D0012 D0082 D0152 Program No. Monitor ---
D0013 D0083 D0153 Segment No. Monitor ---
D0014 D0084 D0154 Remaining Standby Time Monitor ---
D0015 D0085 D0155 Elapsed Program Time Monitor ---
D0016 D0086 D0156 Remaining Program Time Monitor ---
D0017 D0087 D0157 Elapsed Segment Time Monitor ---
D0018 D0088 D0158 Remaining Segment Time Monitor ---
D0019 D0089 D0159 Program Execution Repetitions Monitor ---
· · · · · · · · · · · · · · ·
D0024 D0094 D0164 Not used. ---
