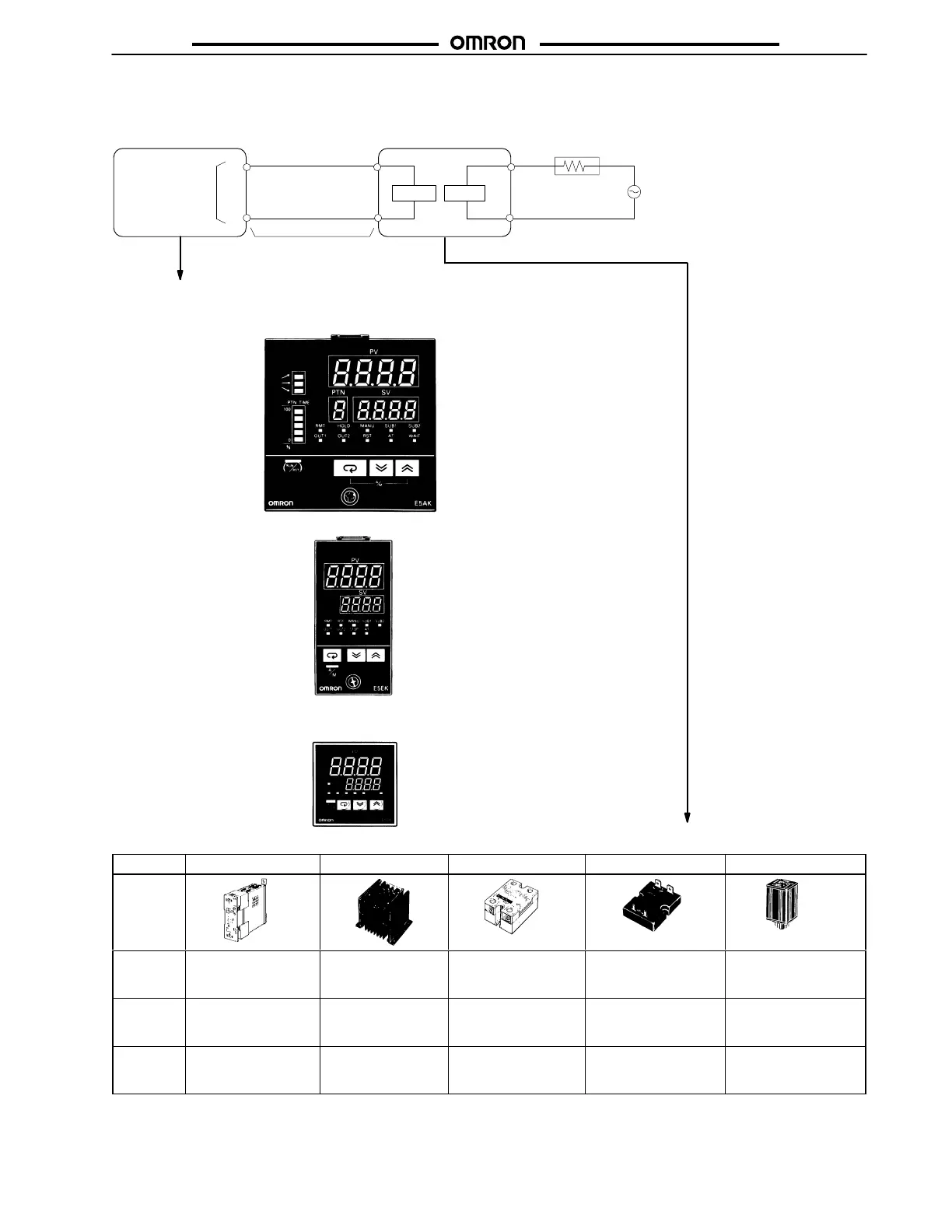

Connection Example of Process Controller and SSR
+
–
+
–
Digital Controller
Voltage output
terminal
(for driving SSR)
Connectable
Load
Heater
Power supply
for load
Power SSR
SSR
E5jK-T
Process Controller with
Voltage Output
(12 VDC,
40 mA max.)
See the following table.
E5CK-T
Controller with
Voltage Output
(12 VDC,
20 mA max.)
INPUT LOAD
Model G3PA/G3PB G3NH G3NA G3NE G3B
Appear-
ance
SSRs
connected
in parallel
E5AK-/E5EK-T:
8 pcs.
E5CK-T: 4 pcs.
E5AK-/E5EK-T:
8 pcs.
E5CK-T: 4 pcs.
E5AK-/E5EK-T:
5 pcs.
E5CK-T: 2 pcs.
E5AK-/E5EK-T: 2 pcs.
E5CK-T: 1 piece
E5AK-/E5EK-T: 5 pcs.
E5CK-T: 2 pcs.
Rated
input
voltage
5 to 24 VDC 5 to 24 VDC 5 to 24 VDC 12 VDC 5 to 24 VDC
Features Thin, SSR with built-in
heat sink; 1-phase
and 3-phase models
For high-power
heater control
Standard model with
screw terminals
Compact, low-cost
model with tab termi-
nal
s
Socket, model with
5-A switching
capacity
C/E1:H87, E3:H01TAD1
