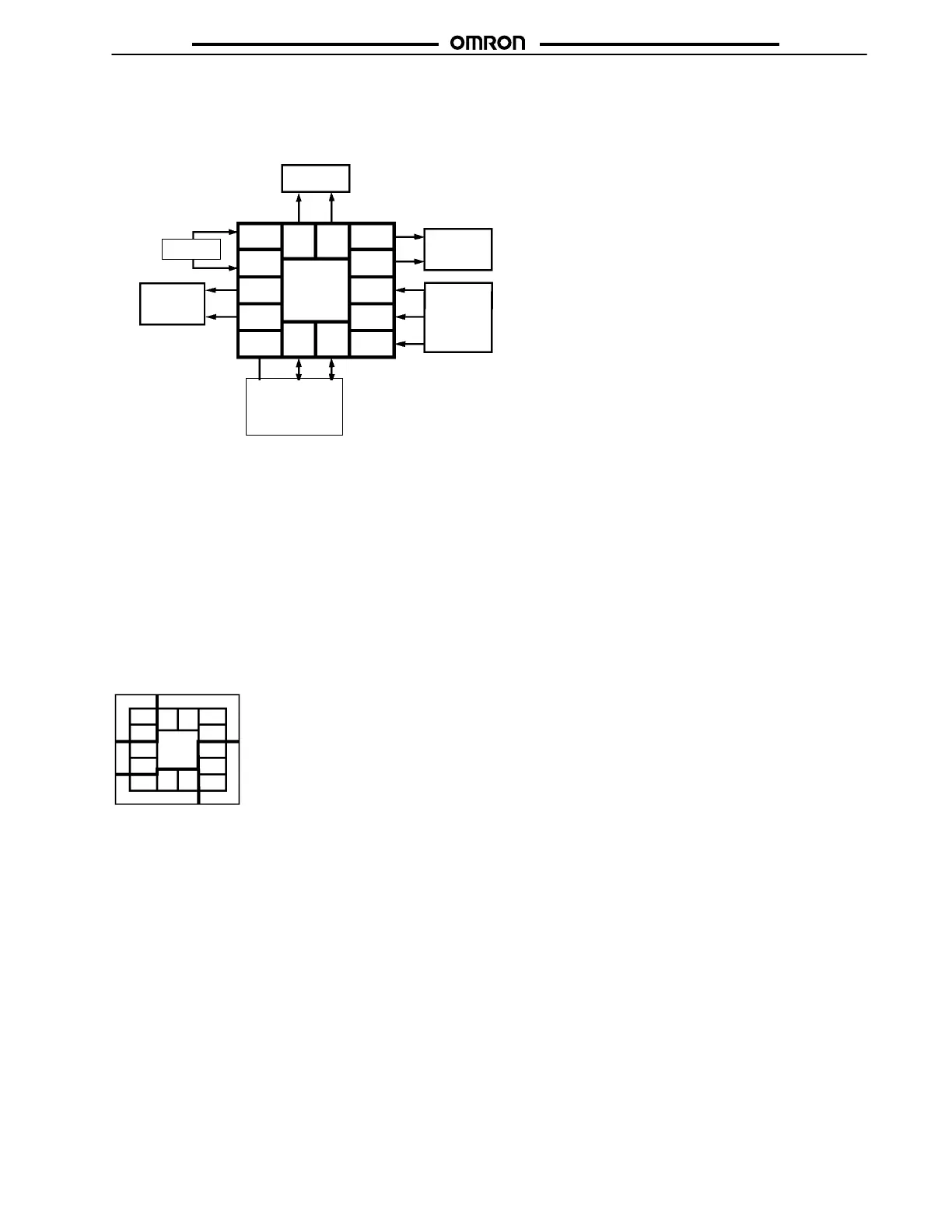

J WIRING TERMINALS
Terminal Arrangement
E5CK-T
5
4
3
2
1
10
9
8
7
6
13
14
11
12
OUT1
OUT2
SUB1
IN
SOURCE
EV1
RS232C
RS485
TRSF
TRSF: Transfer output
EV1:Event input
AC100–240V 50/60 Hz
(AC/DC24V)
J WIRING PRECAUTIONS
• Use ducts to separate input leads and power lines in order to protect the Controller and its lines from external noise.
• Solderless terminals are recommended when wiring the Controller.
• Tighten the terminal screws using a torque no greater than 0.78 N S m, or 8 kgf S cm max. Be careful not to tighten the terminal
screws too tightly.
Power Blocks for E5CK–T
The E5CK-T has independent power supplies for each of the terminal blocks shown below.
Note: The power supplies for blocks C (exclude relay output) and D are shared for the following option board:
E53-CKB or E53-CKF Option Board
E5CK-T
A
C
5
4
3
2
1
10
9
8
7
6
C
DB
11 12
13 14
