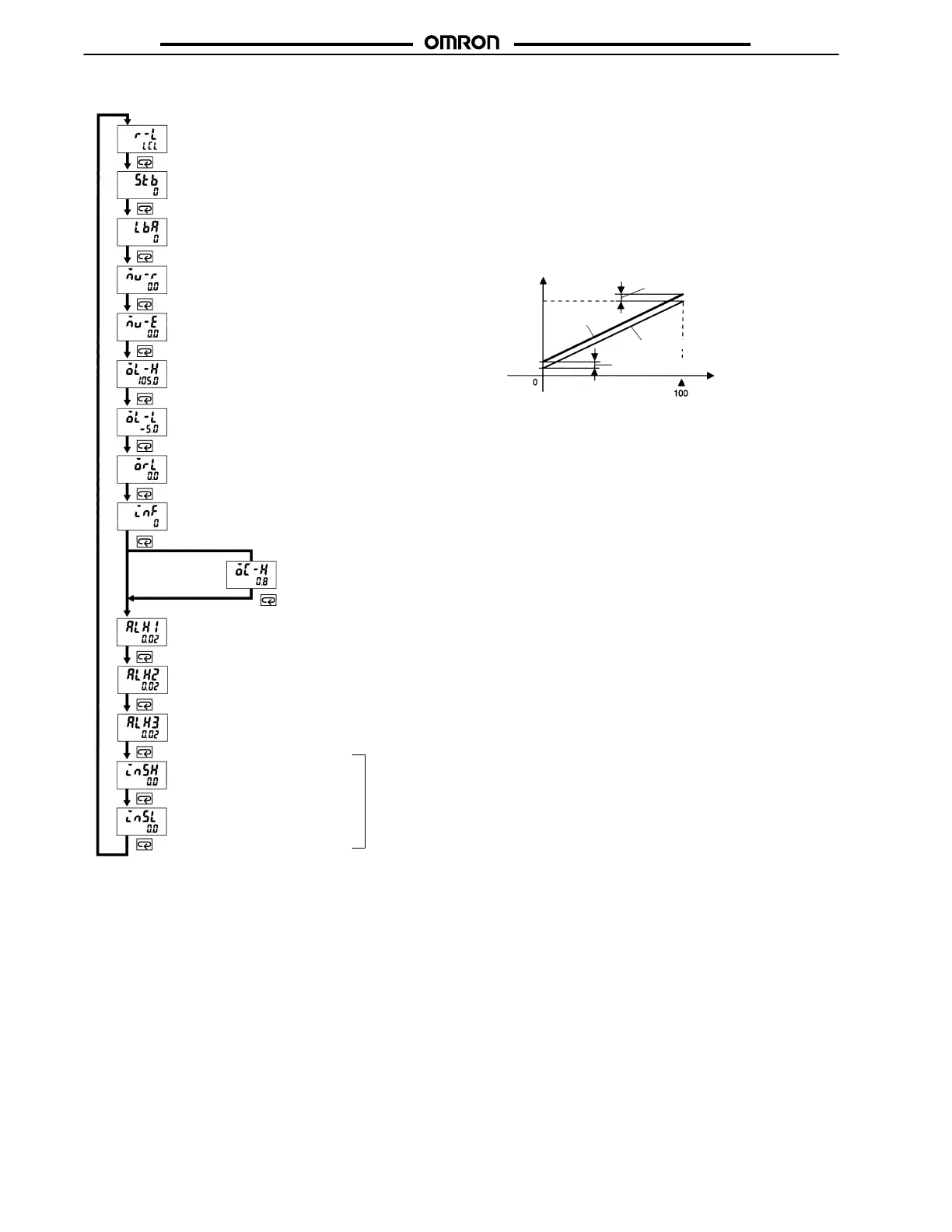

J LEVEL 2 MODE
Remote/Local
Used for the
communications function.
LBA Detection Time
Available when the LBA (loop break
alarm) is assigned as an output.
For models E5AK/EK-T only.
MV at Reset
MV at PV Error
MV Upper Limit
Unavailable to the
E5jK-TPRR2.
MV Lower Limit
Unavailable to the
E5jK-TPRR2.
MV Change Rate Limit
Input Digital Filter
Alarm 1 Hysteresis
Available only when the alarm
output 1 is assigned.
Alarm 2 Hysteresis
Available only when the alarm
output 2 is assigned.
Alarm 3 Hysteresis
Available only when the alarm
output 3 is assigned.
Input Shift Upper Limit
Available if the input type is a
thermocouple or platinum resistance
thermometer.
Input Shift Lower Limit
Available if the input type is a
thermocouple or platinum resistance
thermometer.
(See Input Shift)
For models E5AK/EK-T only
Open/Close hysteresis
Standby time
Input Shift
Temperature
Upper limit
Upper-limit compensation value
After
compensation
Before compensation
Lower limit
Lower-limit
compensation value
Input (% of full scale)
When temperature input is selected, scaling is not required.
This is because input is treated as the “temperature” as it is
matched to the input type. However, note that the upper- and
lower-limit values of the sensor can be shifted. For example,
if both the upper- and lower-limit values are shifted by 1.2°C,
the process value (before shift) is regarded as 201.2°C after
shift when input is 200°C before shift.
To set the input shift, set shift values in the “input shift upper
limit” and “input shift lower limit” parameters (level 2 mode).
