E5CK-T E5CK-T
189

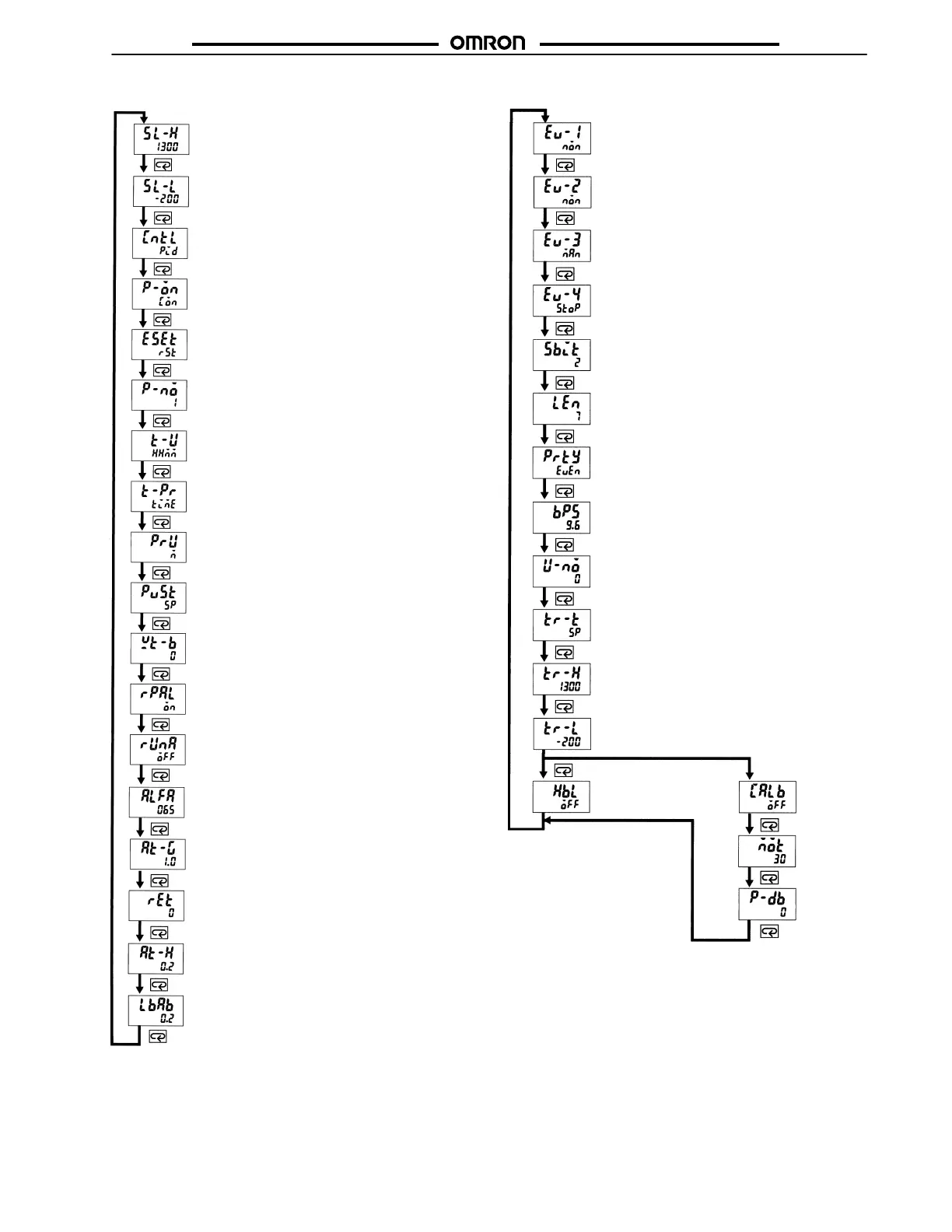

J EXPANSION MODE
Target Value
Upper Limit
Target Value
Lower Limit
PID/ON/OFF
(not displayed for control valve control)
α
Available if the Controller is in advanced
PID control.
AT Calculated Gain
Available if the Controller is in advanced
PID control.
AT Hysteresis
Available if the Controller is in advanced
PID control with the ST set to OFF.
LBA Detection Width
Available only when the LBA (loop break
alarm) function is assigned.
Unavailable to the E5jK-TPRR2.
At Power ON
At Operation End
Automatic Display Reset Time
Number of Patterns (displayed for E5CK-T)
Program Time Unit
Time setting/Inclination Setting
Inclination Setting Time Unit (used for setting inclination)
PV Start (used for setting time)
Weight Width
For models E5AK/EK-T only.
Alarm Valid During Ramping
Run-all Valid (with E5CK-T, this display appears
when more than two patterns are used.)
J OPTION MODE
Event Input Assignment 1
Available for the event input function.
Event Input Assignment 2
Available for the event input function.
For models E5AK/E5EK-T only.
Event Input Assignment 3
Available for the event input function.
For models E5AK/E5EK-T only.
Event Input Assignment 4
Available for the event input function.
For models E5AK/E5EK-T only.
Communication Stop Bit
Used when the communications function is being used.
Communication Data Length
Used when the communications function is being used.
Communication Parity
Set when the communications function is being used.
Communication Baud Rate
Set when the communications function is being used.
Communication Unit No.
Set when the communications function is being used.
Transfer Output Type
Set when the transfer output function is being used.
Transfer Output Upper Limit
Set when the transfer output function is being used.
Transfer Output Lower Limit
Set when the transfer output function is being used.
Motor
calibration
Travel time
PV dead
band
HBA latch
For E5jK-TPRR2
(not on E5CK-T)
