Omron E5CK-T User Manual

E5CK-T E5CK-T
173

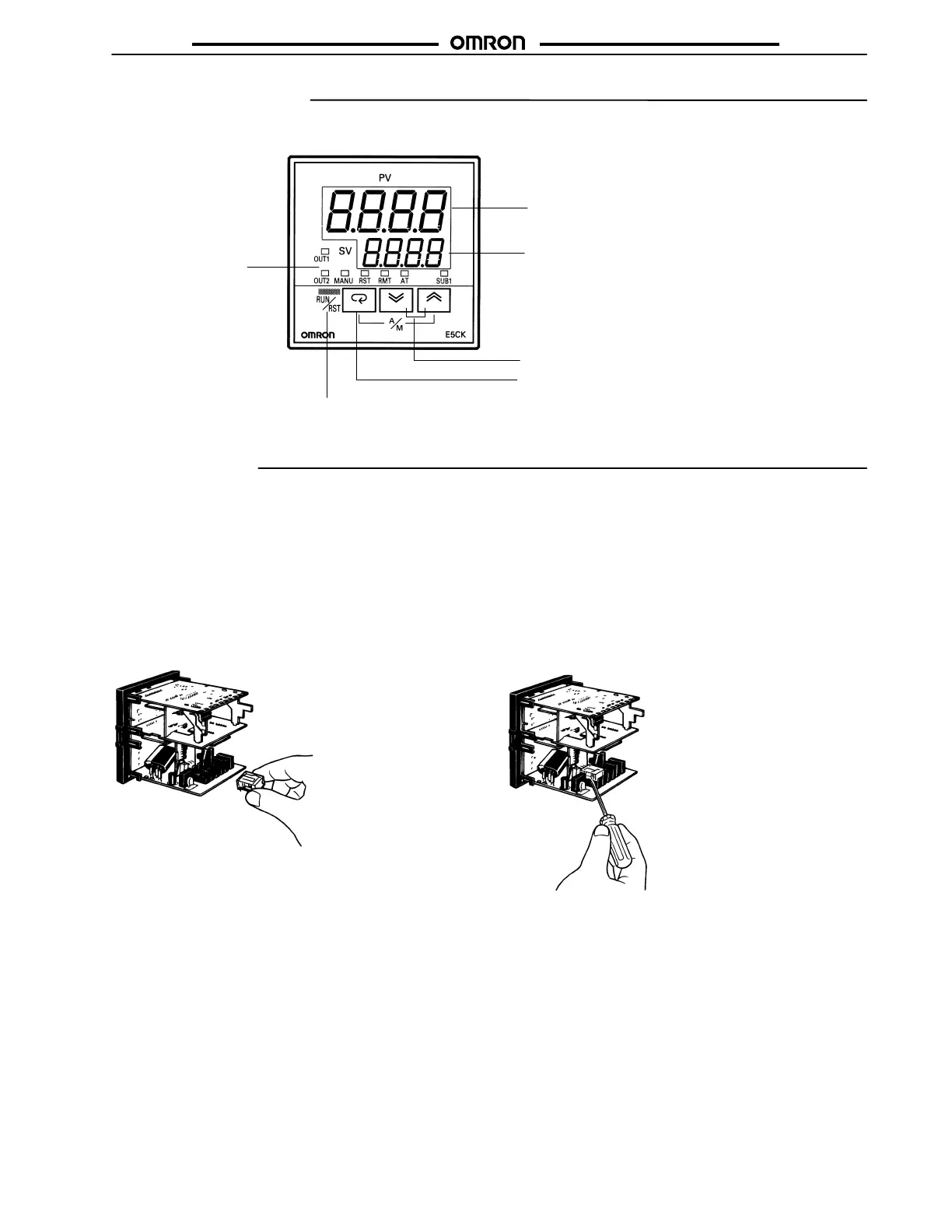

Nomenclature
J E5CK-T
Operation Indicators
RUN/RST Key
Up Key/Down Key
Display Key
Display 1
Display 2
Operation
Note: Before changing any switch settings, always turn OFF the power supply to the Process Controller
J SETTINGS
1. On a standard model, set up the output boards for control outputs 1 and 2 before mounting the Controller.
2. On a position-proportional model, the relay output board is already set, so this setup operation is unnecessary. (Do not replace with
other output boards.)
3. When setting up the output boards, remove the internal mechanism from the housing and insert the output boards into the sockets for
control outputs 1 and 2.
Setting up the Output Board Removing the Output Board

Omron E5CK-T Specifications

General

Brand	Omron
Model	E5CK-T
Category	Controller
Language	English
