50

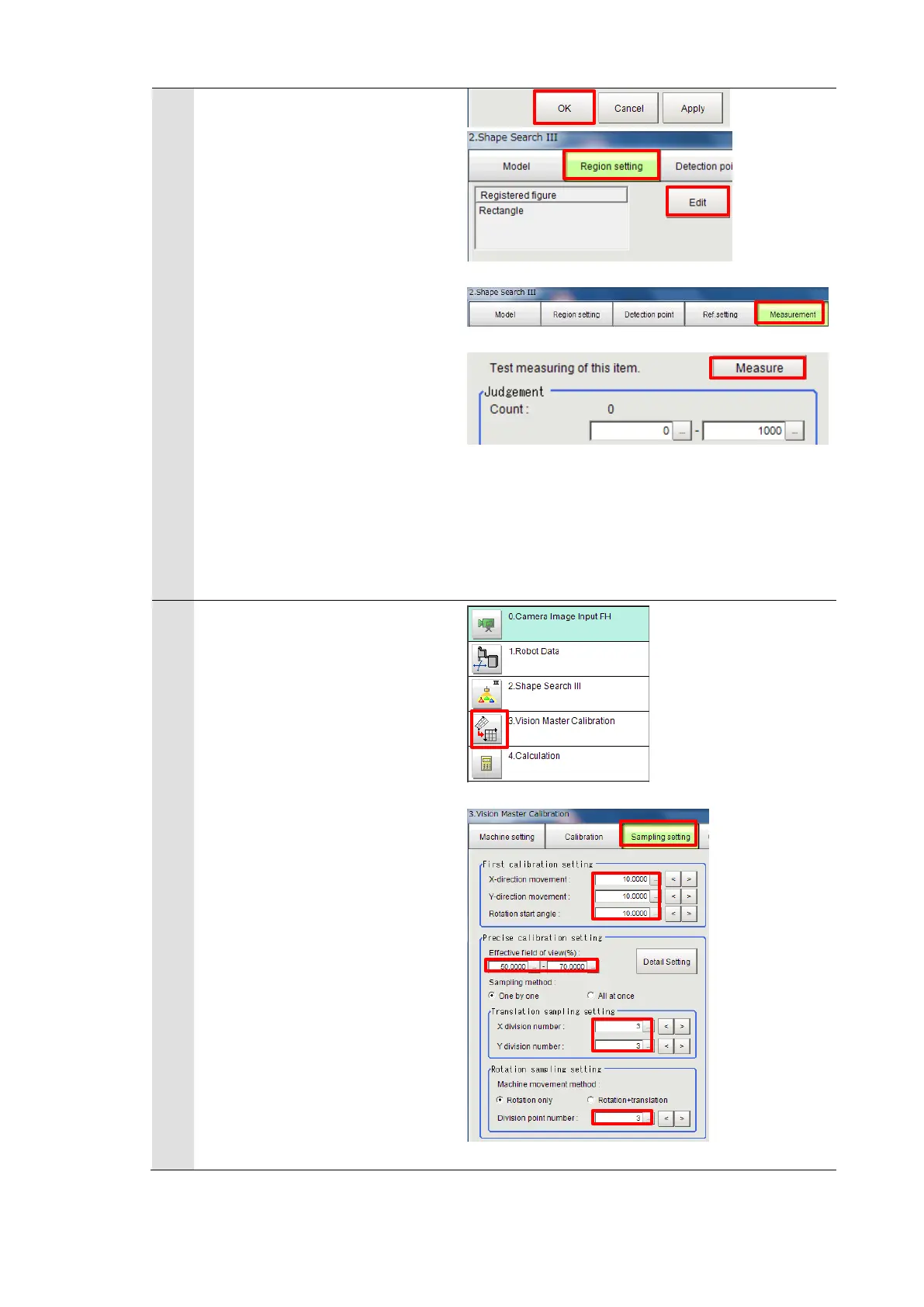

Register it as a model by
clicking [OK] after fitting the
registering figure on the
calibration target.
Click [Edit] on the [Region
setting] tab to set the
measurement region according
to the field of view for a camera
to use. Click [OK] after setting.
Click [Measurement] on the
[Measurement] tab and check
that the “Count” becomes one.
* If it does not become one, the
settings are not proper.
Therefore execute the model
registration again.
6
Click the “3. Vision Master
Calibration” icon on the Main
Window of the Vision Sensor to
open the setting screen.
Select the [Sampling setting]
tab and set “First calibration
setting”, “Effective field of
view”, “Translation sampling
setting”, “Detection point
number” according to the
actual environment.

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
