H7ET
H7ET
11
J UNIT LABEL FOR TIME COUNTER AND
TACHOMETER
A unit label has been packed with the Counter. Use in
accordance with the application.
J BATTERY REPLACEMENT
Remove the wiring when replacing the Battery . Do not come in
contact with any item to which high voltage is being applied.
Doing so may result in electric shock.
Before changing the Battery, be sure that you are not carrying
any static electric charge.

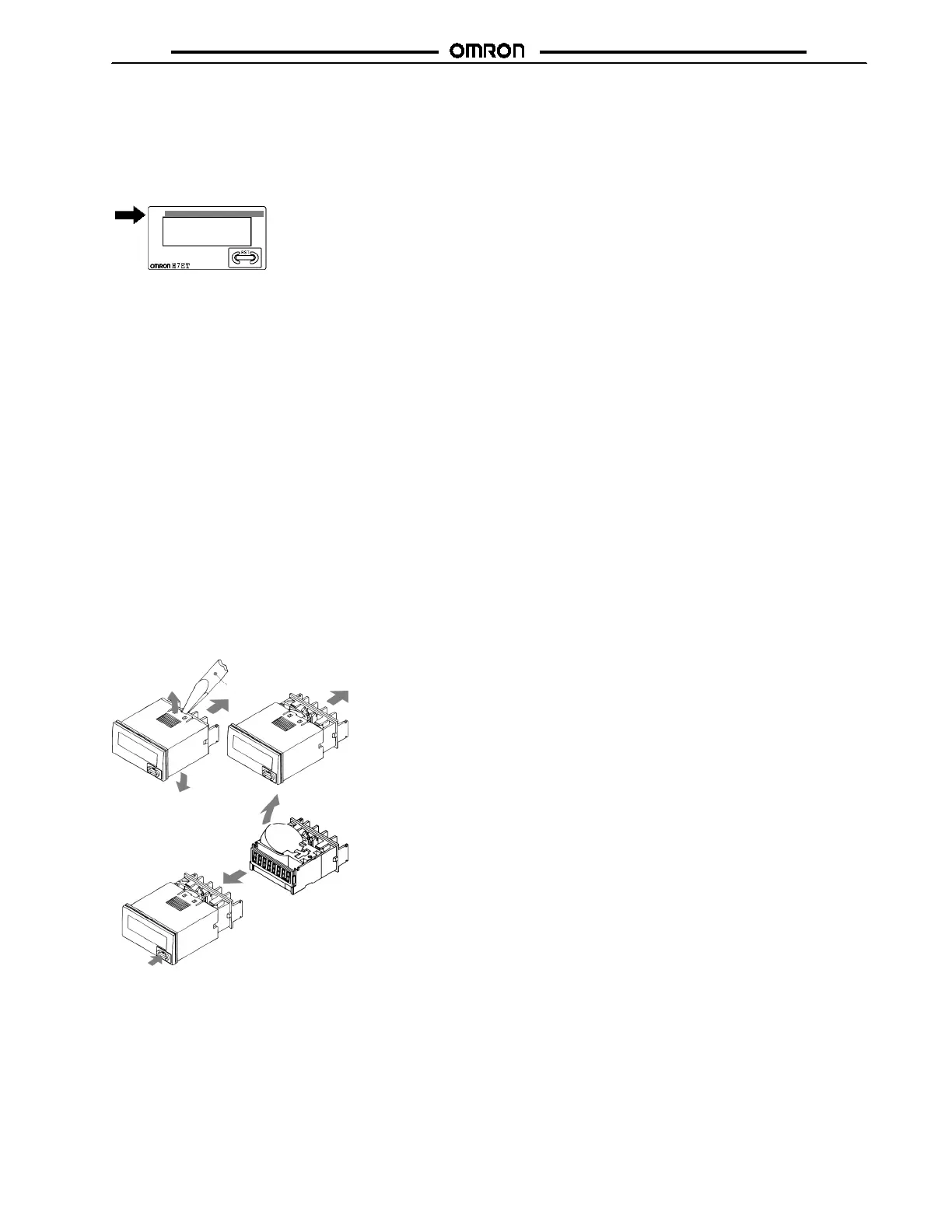

Procedure for replacing the Battery (refer to the diagrams below):
1. Using the tool, pry open the lift-tab on the case. (1)
2. Pull the body out of its outer case. (2)
3. Lift the Battery up by the edge and remove it. (3)
When removing the Battery, do not come in contact with the
display area or any internal parts.
4. Wipe the back of the new Battery before inserting it.
5. Ensure that the + and -- terminals are correctly oriented.
6. After replacing the Battery, re-insert the body into its case. (4)
Check that the case is securely held in by the lift-tab.
7. Press the Reset Key before use (not necessary for
H7ET-N,-NV,-NV1). (5)
When the internal Battery nears expiration, the display may
flicker.
Tool
(2)
(1)
(1)
(3)
(4)
(5)
J EN/IEC STANDARDS
The counter input, reset input, and backlight power supply
terminals of the no-voltage input or PNP/NPN universal DC
voltage input models (H7Ej-N,-N1, H7Ej-NV(-H),-NV1(-H)) are
not isolated.
A SELV power supply conforming to Appendix H of IEC61010-1
should be used for the counter input, reset input and backlight
power supply terminals. A SELV power supply is a power supply
for which the input and output have double or reinforced
insulation, and for which the output voltage is 30 Vrems with 42.4
V peak or 60 VDC max. (Only the H7Ej-NVj-H has a
backlight.)
The terminals for counter input and reset input for AC/DC
multi-voltage input models have basic insulation.
Connect the reset input terminals to a device that does not have
exposed current-carrying parts and has basic insulation for
240 VAC.
To Next Page
