Omron H7ET Series User Manual

H7ET
H7ET
4

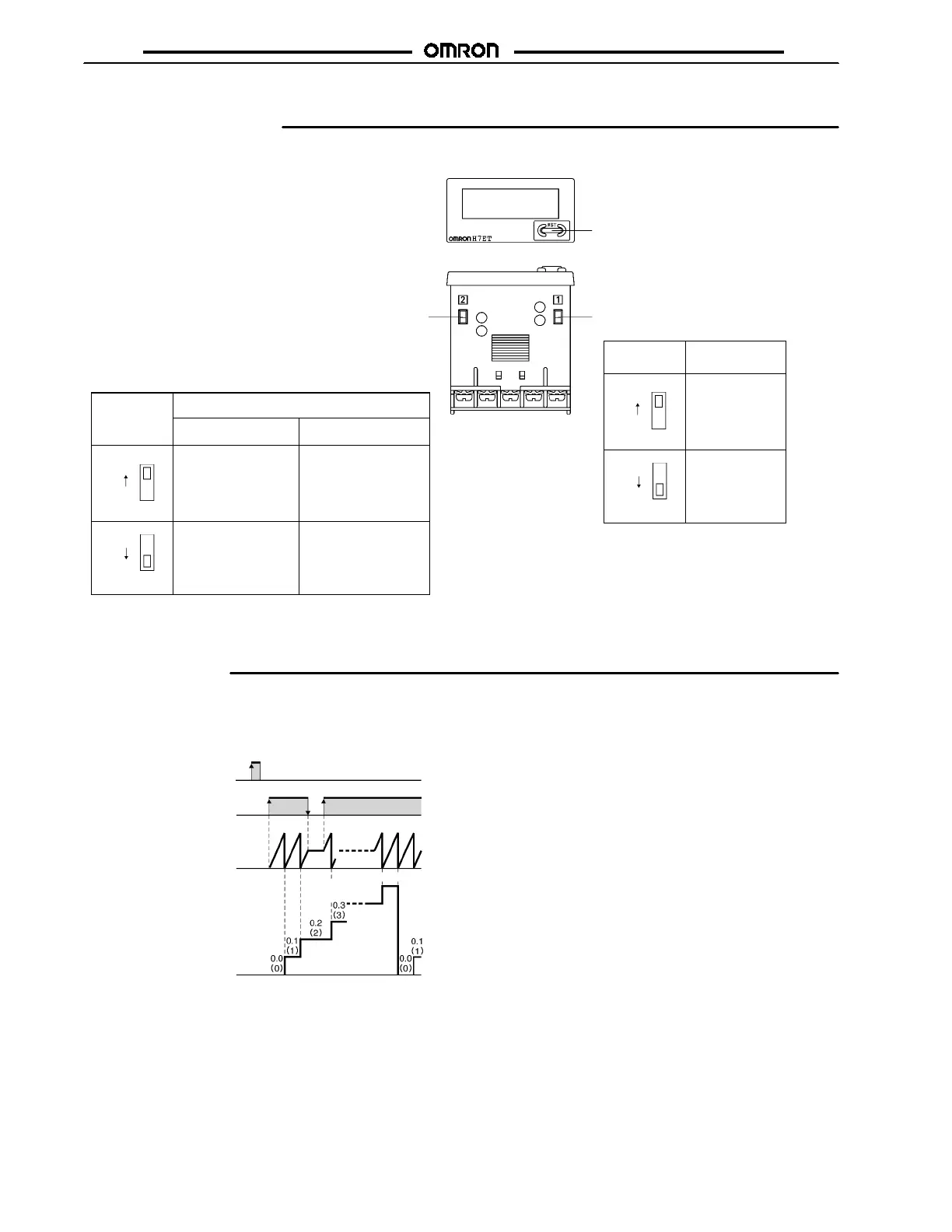

Nomenclature
Front view
Bottom view
Reset Key
Reset the count value. Not operable
under key-protect.
Key-protect Switch
Time-range switch
Setting
(see note)
Key-protect
Front panel
OFF
(default setting)
ON
Terminal block
Setting
(see note)
H7ET-Njj-jj
Front panel
0.0h to 3999d23.9h
(default setting)
0.0h to 999999.9h
Terminal block
Time range
H7ET-Njj1-jj
0s to 999h59m59s
(default setting)
0.0m to 9999h59.9m
If the switch setting is
changed, press the Reset
Key on the front panel.
J TIME COUNTER
Note: Perform switch setting before mounting to a control panel.
Operation
J OPERATING MODES
H7ET Time Counter
Incrementing Operation
(Up)
Full-scale
(Full-scale
--0.1 (1))
Reset
Timer input
Internal clock
timer v alue
Timer display values
