H7ET
H7ET
9

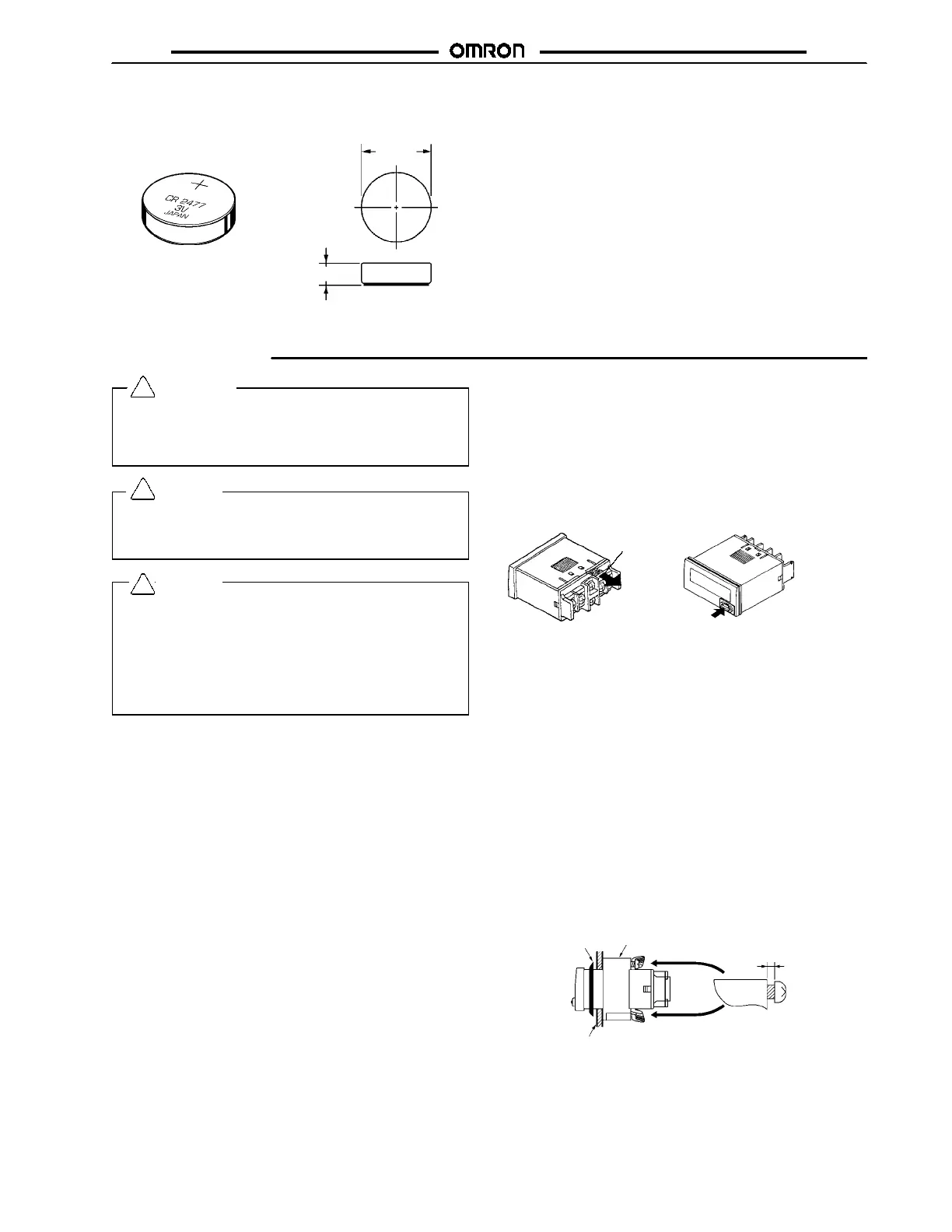

J Y92S-36 REPLACEMENT (LITHIUM)
BATTERY (3 V)
24.5 dia.
7.7
Precautions
W ARNING
This product has a built-in lithium battery. Do not short-circuit
the + and -- terminals, charge, disassemble, deform, or expose
the battery to fire. The battery may explode (break), catch fire,
or cause liquid leakage.
Caution
Do not use any battery other than the specified one (Y92S-36).
Using another battery may cause liquid leakage or breakage,
resulting in malfunction or injury.
Caution
If a voltage other than the rated one is applied, internal
elements may be damaged.
Do not use the Counter in the following places:
•
Locations subject to direct sunlight.
•
Locations subject to corrosive gases.
•
Locations subject to dust.
J BEFORE USE
An insulation sheet has been inserted to maintain the quality of
the Totalizer in the event of a long period without use. Be sure to
remove this sheet before attempting to use the product.
Remove the insulation sheet and press the Reset Key on the
front panel of the Counter. (With the H7ET-N,-NV(-H),-NV1(-H),
models, “0” or “0.0” will be displayed after 1 s.)
Reset Key
Insulation Sheet
Switch settings on the Counter must be performed before
mounting it to a control panel.
Do not use the Counter in locations subject to:
SSevere changes in temperature.
SCondensation as the result of high temperatures.
J MOUNTING PRECAUTIONS FOR
PANEL- MOUNTING
Although the operating section is watertight (conforming to
NEMA 4, IP66), a rubber gasket is provided to avoid water
leakage through the gap between the Counter and panel cutout.
Unless this rubber gasket is tightly squeezed on, water may
permeate inside the panel. For this reason, be sure to tighten the
screws for fixing the panel-mounting bracket.
Screw for the Panel-Mounting Bracket
The wider side must
face the panel.
Adapter
Panel
0.5 to 1 mm
Adapter screw section
Tighten the sc rew until the
distanc e i s within the range
shown above.
!
!
!
To Next Page
