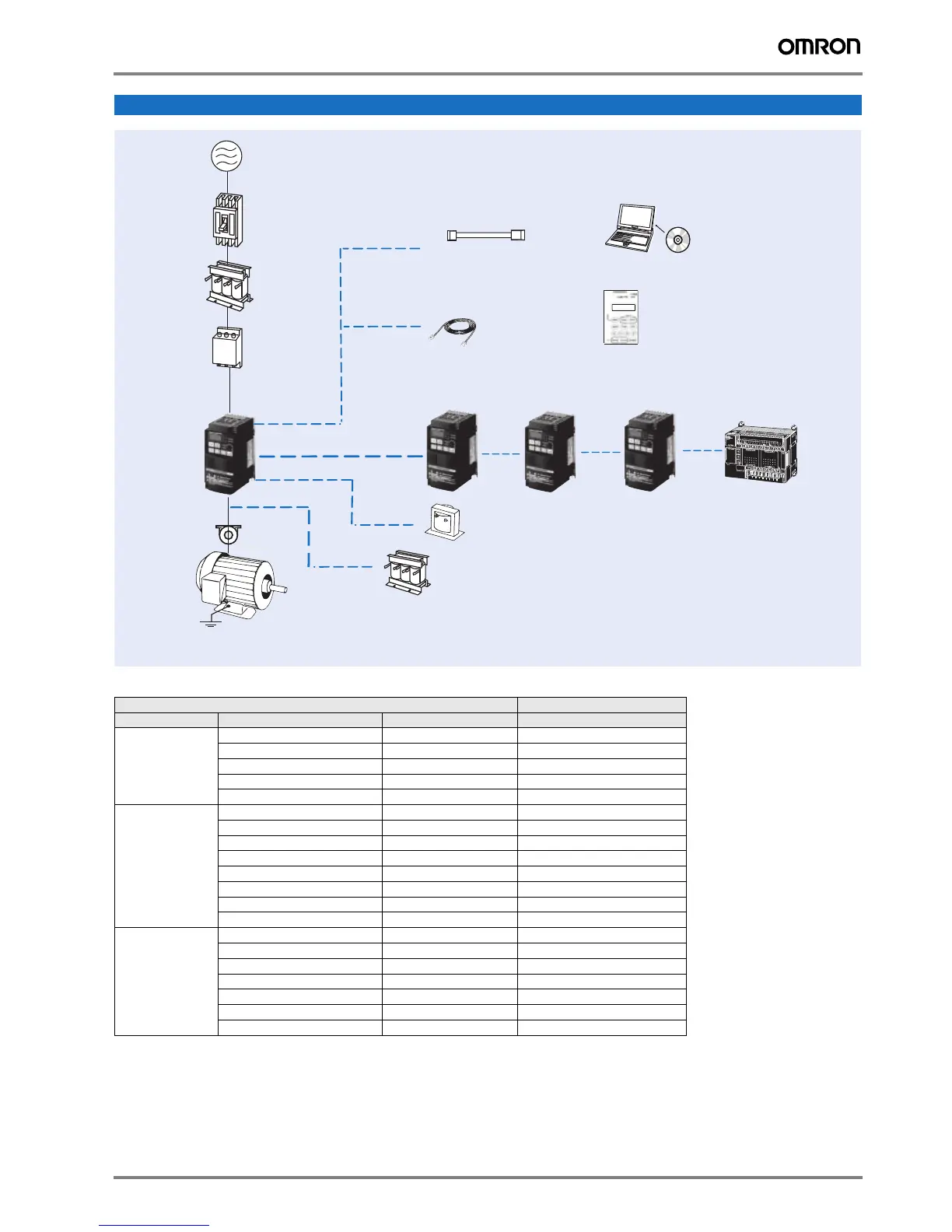

Omron JX System Configuration

JX 9
JX
Ordering information
Specifications Model
Voltage class Max. applicable motor output kW Rated output current (A) Standard
Single-phase 200 V
0.2 1.4 JX-AB002-EF
0.4 2.6 JX-AB004-EF
0.75 4 JX-AB007-EF
1.5 7.1 JX-AB015-EF
2.2 10 JX-AB022-EF
Three-phase 200 V
0.2 1.4 JX-A2002-E
0.4 2.6 JX-A2004-E
0.75 4 JX-A2007-E
1.5 7.1 JX-A2015-E
2.2 10 JX-A2022-E
3.7 15.9 JX-A2037-E
5.5 24 JX-A2055-E
7.5 32 JX-A2075-E
Three-phase
400 V
0.4 1.5 JX-A4004-EF
0.75 2.5 JX-A4007-EF
1.5 3.8 JX-A4015-EF
2.2 5.5 JX-A4022-EF
4.0 8.6 JX-A4040-EF
5.5 13 JXA4055-EF
7.5 16 JXA4075-EF
Choke
A
BB
LCD 5 lines remote
operator
Remote operator
extension cable
A
A
CC C C
A
Output reactor
B
D
A
USB cable
CX-Drive
CX-One
MCCB
JX
Filter
AC reactor
Motor
Ground
Power
supply
DC reactor
* Only needed for 3 phase 200 V or to comply C1 on 3 phase 400 V models
*

Omron JX Specifications

General

Enclosure Rating	IP20
Output Frequency	0 to 400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication	RS-485
Frequency Range	0.1 to 400 Hz
Power Rating	0.4 to 15 kW
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +65°C
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000 m above sea level
Output Voltage	3-phase 200 to 240 VAC, 3-phase 380 to 480 VAC
Cooling Method	Fan cooling
