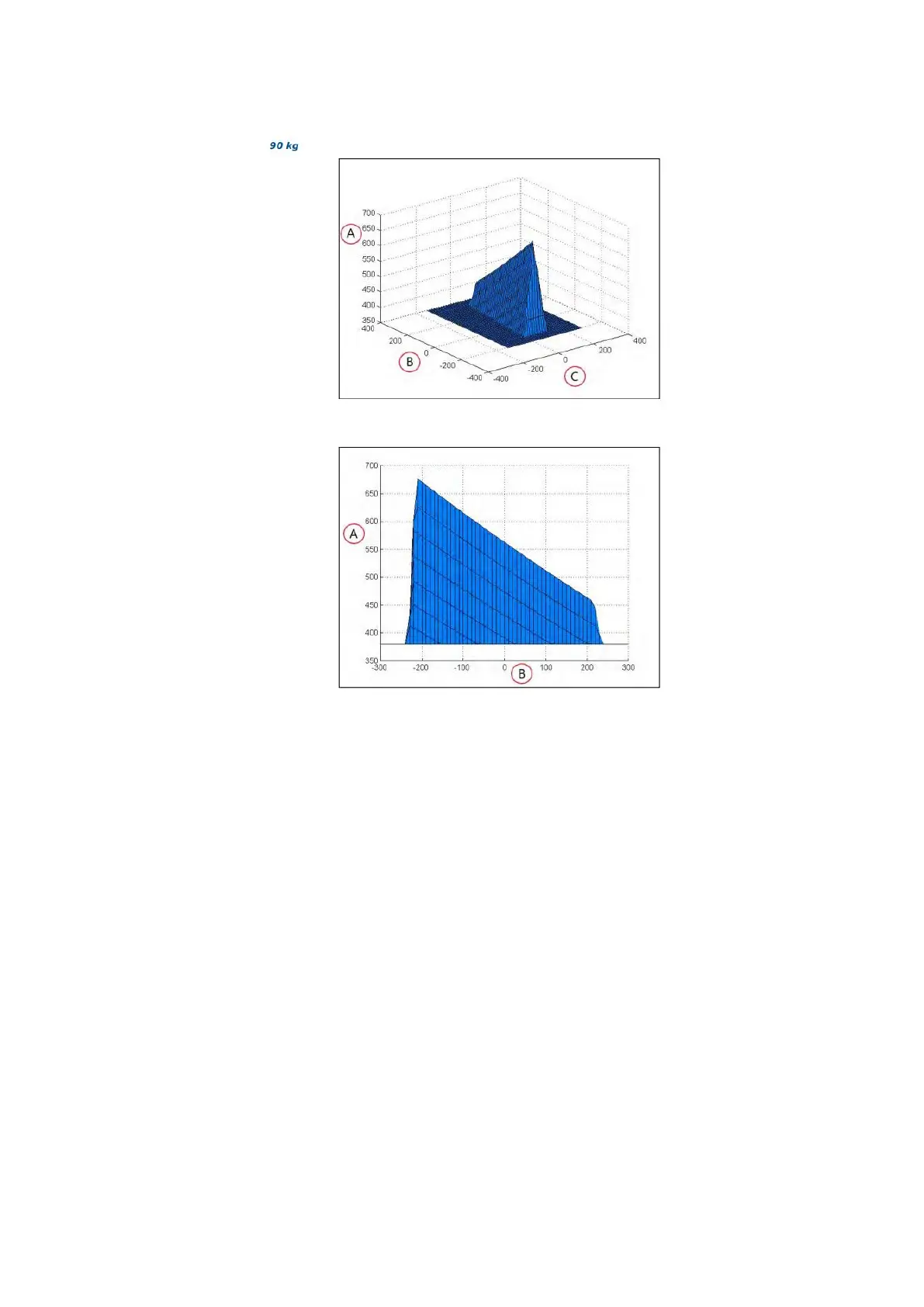

Figure 10: Center of Gravity Graphs, 60 kg (units in mm)
The following figures show the calculations of safe placements for the center of gravity for payloads with the
weights listed for the LD Platform Cart Transporter. The center of gravity, in each instance, needs to be
within the area shown. All units are mm.
