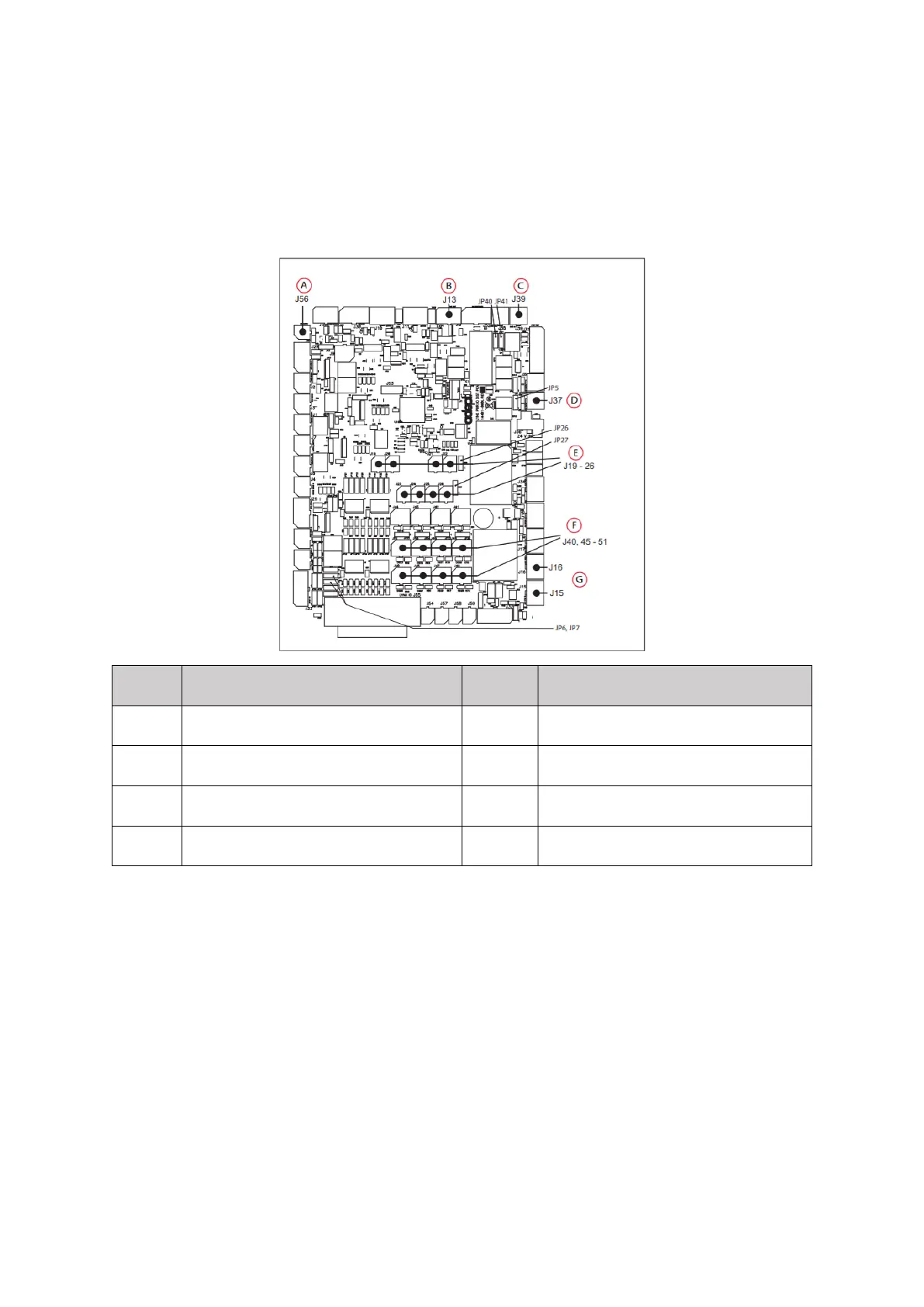

Cart Specific PCA
The transporter uses pins 9-16, both Input and Output. The cart PCA is powered by the User Power from
main LD Platform core. User Interface goes through the PCA to the Operator panel. User Interface goes
through the PCA to the Operator panel.
Callout
Description
Callout
Description
A
User Beeper Out
E
User I/O Out 1-8
B
User EMO Out
F
User I/O In 1-8
C
User EMO Switch Connector
G
User Power Out
D
User Power
