2-2 Example System
2
2
NP Introduction Manual 23
Designing Systems
●CP1L
CP1L is a high-performance, yet affordable package-type PLC, ideal for small-
sized manufacturing machines and control systems.

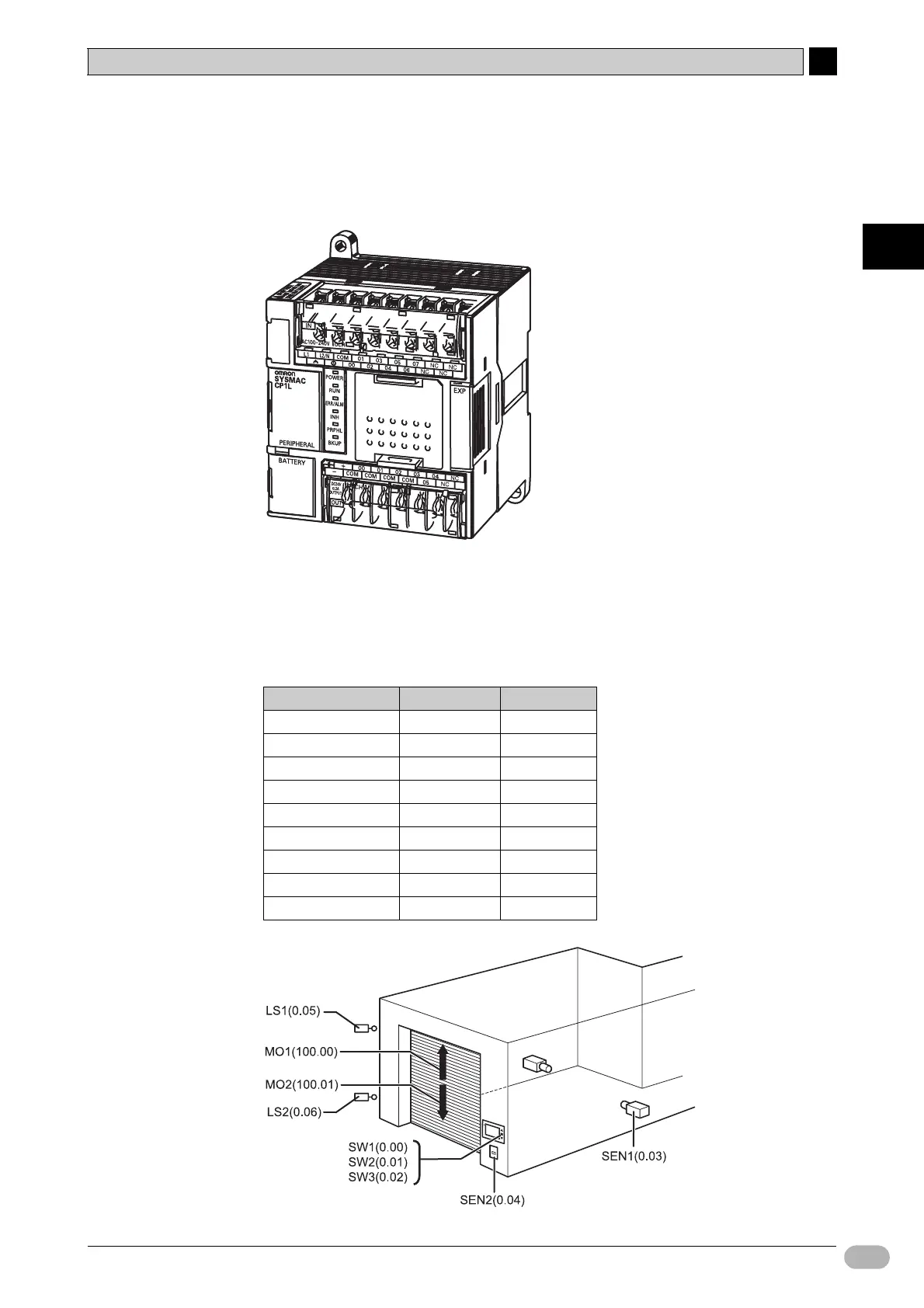

CP1L-L14D- is shown below.
For details on CP1L, refer to SYSMAC CP Series CP1L CPU Unit User's
Manual (W462).
■ I/O Allocation for PLC
I/O relays on the PLC are allocated as shown below.
Device Contact Address
OPEN switch SW1 0.00
STOP switch SW2 0.01
CLOSE switch SW3 0.02
Vehicle sensor SEN1 0.03
Light sensor SEN2 0.04
Upper LS LS1 0.05
Lower LS LS2 0.06
Escalation motor MO1 100.00
De-escalation motor MO2 100.01
To Next Page
