NP Introduction Manual 25
Designing Systems

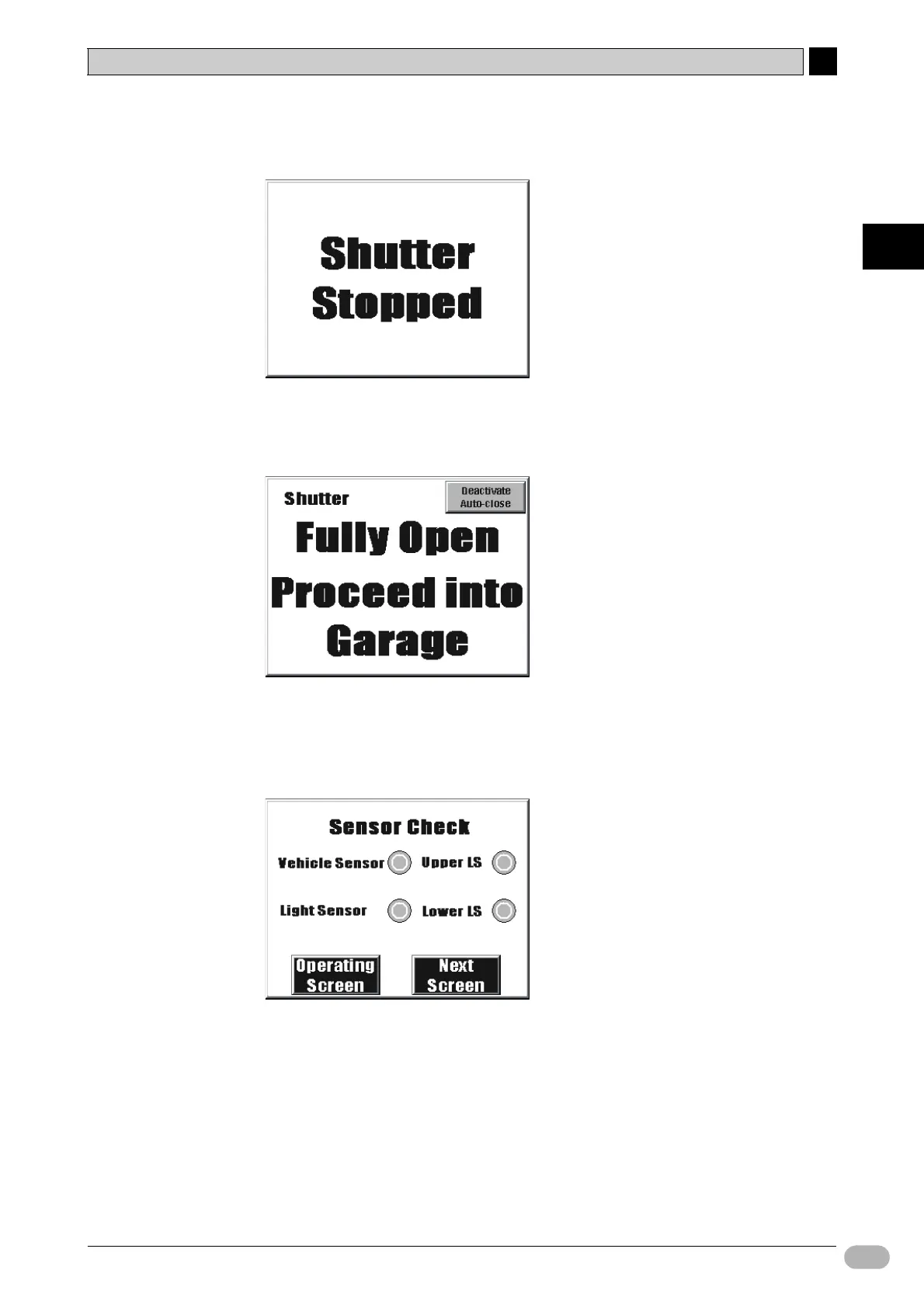

04 Stopped
This screen shows when the STOP switch is pushed.
05 Fully Open
This screen shows while the garage shutter is fully open. The [Deactivate Auto-
close] button is created to keep the shutter open.
06 Check1
This screen is for maintenance use. It shows the input status for each sensor.
This screen shows when a user pushes the maintenance button on the [01
Waiting] screen.
