4-4 Creating Screens
4
4
NP Introduction Manual 53
Creating Screens

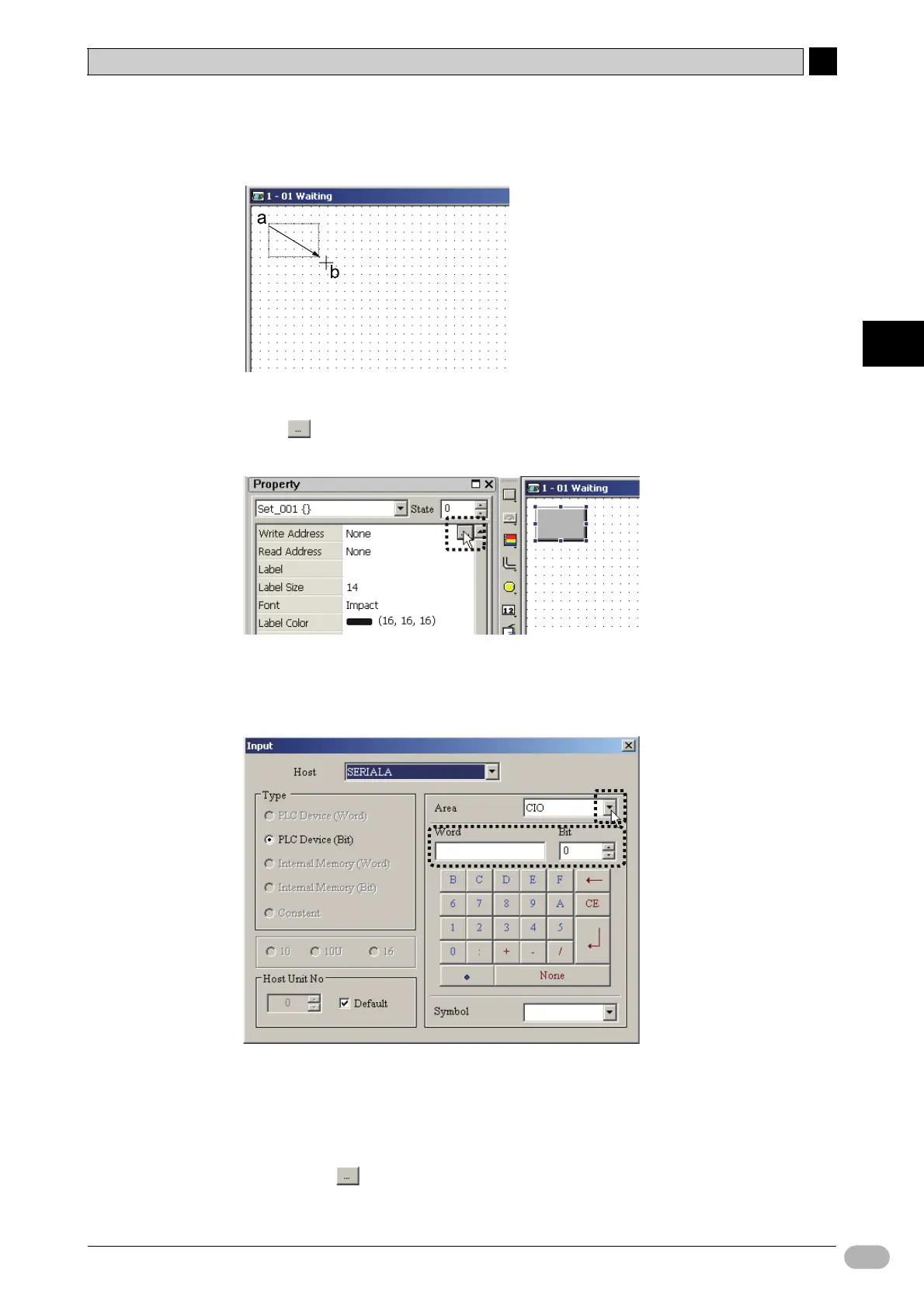

2. Move the cursor from a to b.
A button frame will show.
Set the properties for the button.
3. Click for [Write Address].
You will see the [Input] dialog box.
4. Select [WR] from the [Area] drop-down list. Enter "0" for [Word], "2" for
[Bit]. Push the [Enter] key.
The [Input] dialog box will close. [Write Address] will be [SERIALA:WR00000.02].
Note In NP-Designer, [W0.02] is set as SERIALA[WR0.02]. You will see it as
[SERIALA:WR00000.02] under property.
5. Click the [Read Address] input field.
You will see
.
