4-4 Creating Screens
4
4
NP Introduction Manual 77
Creating Screens
■ [05 Fully Open]
The system shows the [05 Fully Open] screen when the upper LS is ON.
Set these functions:
• Cut off input from the vehicle sensor, for the shutter not to close automatically.
• Each Function switch operates [Open], [Stop], or [Close] shutter action.

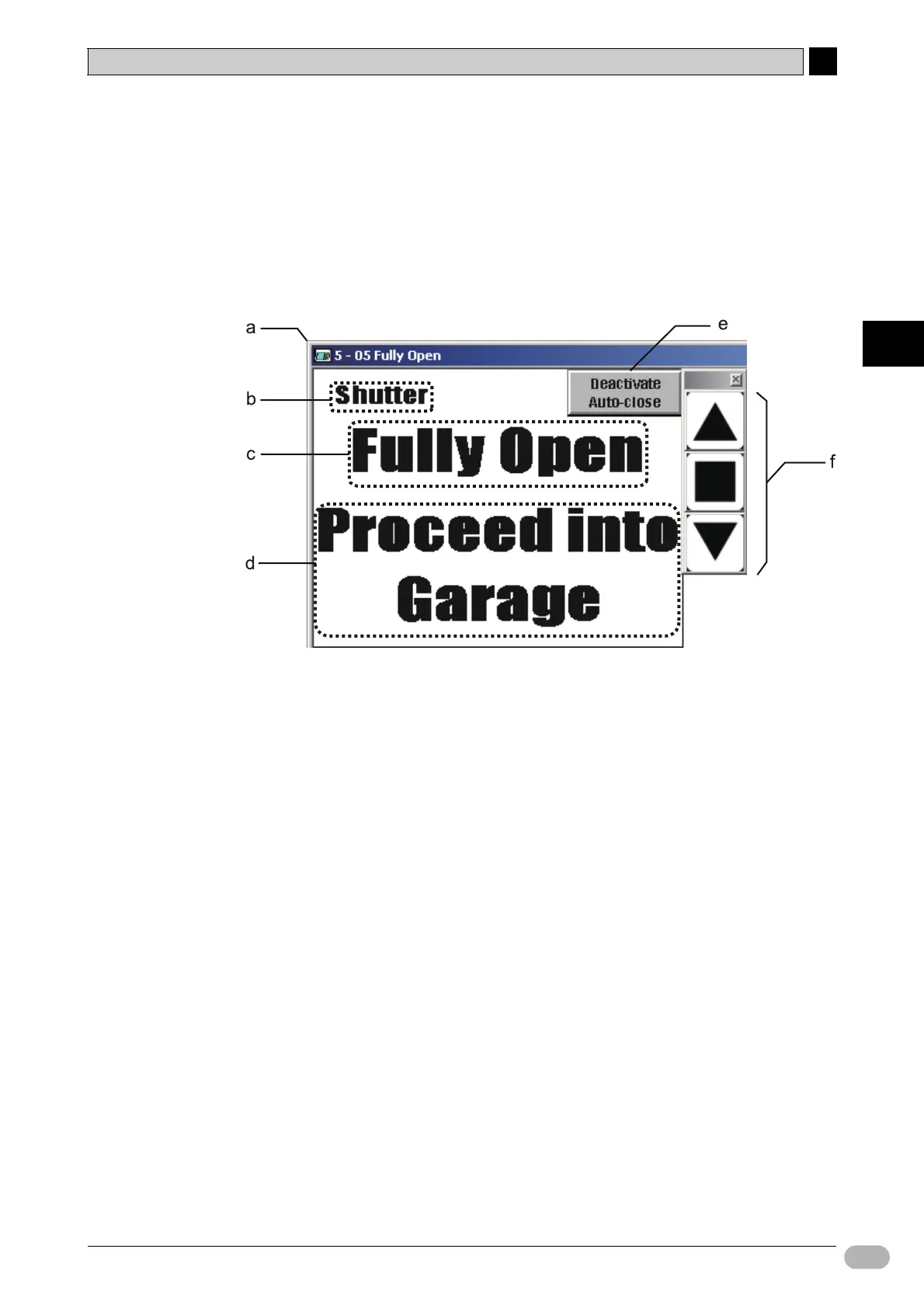

The completed screen shows below.
aScreen
b Fixed Object (Text)
c Fixed Object (Text)
d Fixed Object (Text)
e Button (Alternative)
f Function Switches
●Screen
1. Select [Screen] - [New] from the main menu.
You will see the [New Screen] dialog box.
2. Click [OK].
You will see a new screen in the workspace. [5-Screen_5] will be the title of the
workspace.
3. Click the [Screen Name] input field. Change the value to "05 Fully Open".
The title of the workspace will be [5-05 Fully Open].
