Item Specification
Installation orientation and restrictions Installation orientation:
• Connected to a CPU Unit
*2
Possible in the upright installation orientation.
• Connected to a Communications Coupler Unit
Six possible orientations.
Restriction: None.
*1. The cable length for the Units that supply power to the corresponding Unit must be up to 20 m.
*2. Only NX102 CPU Units can be connected. NX1P2 CPU Units cannot be connected.
l

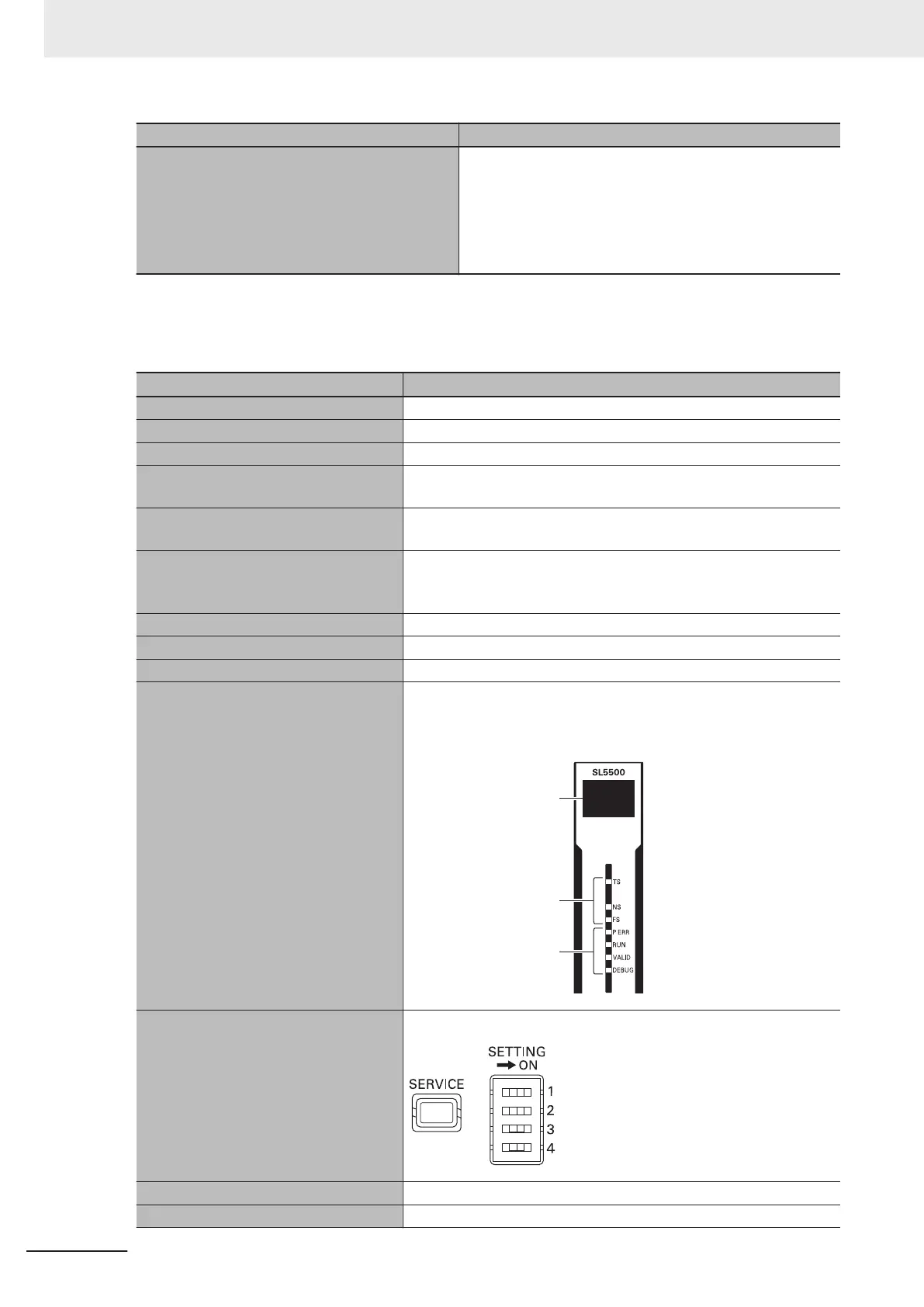

NX-SL5500
Item Specification
Maximum number of safety I/O points 1,024 points
Program capacity 2,048 KB
Number of safety I/O connections 128
Number of CIP Safety originator con-
nections
128
Number of CIP Safety target connec-
tions
4
Number of originators that can be
connected with a multi-cast connec-
tion
8
Number of FSoE master connections 128
I/O refreshing method Free-Run refreshing
External connection terminals None
Indicators [TS] indicator, [NS] indicator, [FS] indicator, [P ERR] indicator, [RUN]
indicator
, [V
ALID] indicator, [DEBUG] indicator, seven-segment indi-
cator
Seven-segment indicator
[TS] LED, [NS] LED, [FS] LED
[P ERR] LED, [RUN] LED,
[VALID] LED, [DEBUG] LED
Hardware switch settings [SERVICE] switch, [SETTING] switch
Dimensions (mm) 30 × 100 × 71 mm (W × H × D)
I/O power supply method Not supplied.
2 Specifications
2 - 6
NX-series Safety Control Unit User's Manual (Z930)
