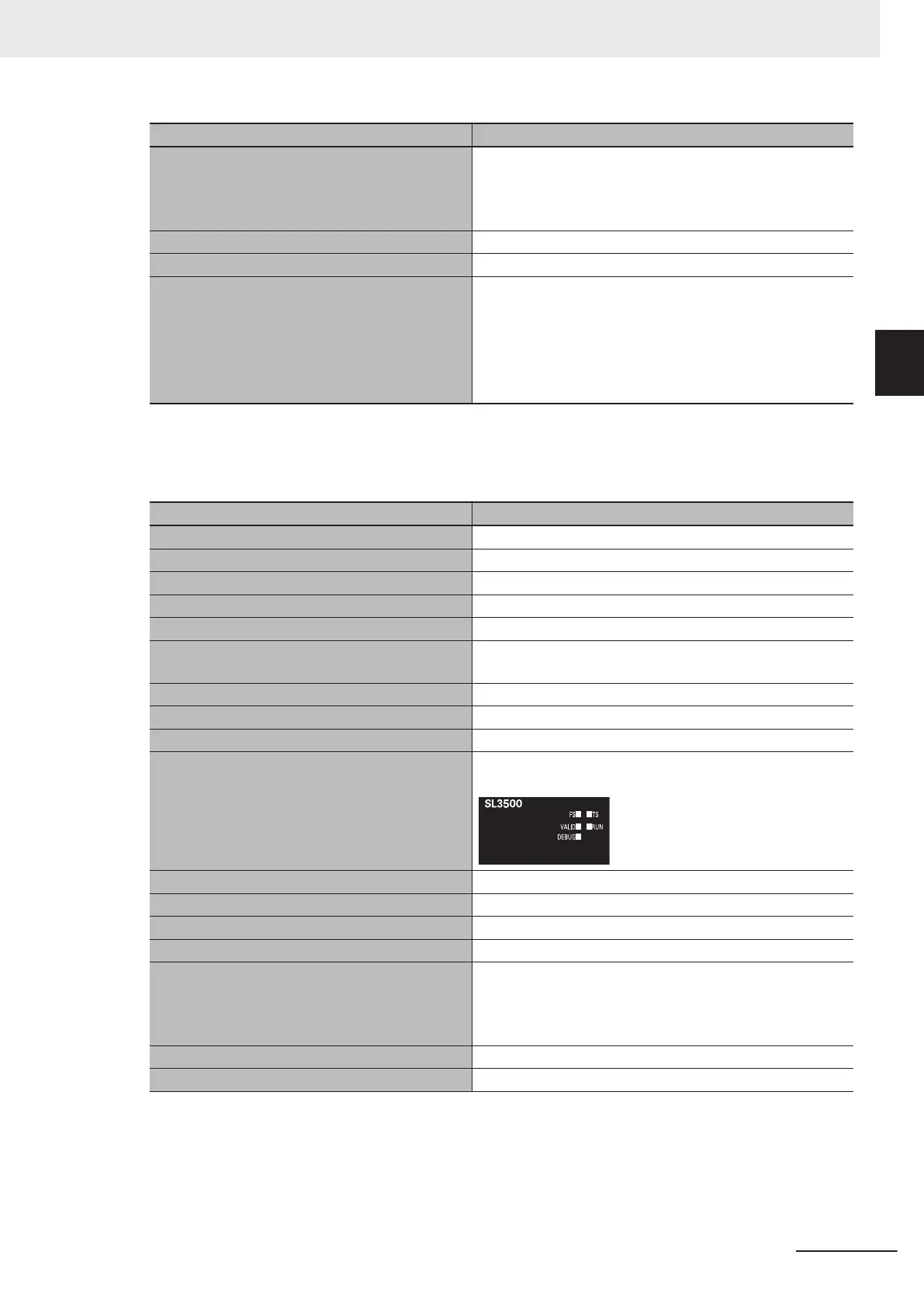

Item Specification
NX Unit power consumption
*1
• Connected to a CPU Unit
1.25 W max.
• Connected to a Communications Coupler Unit
0.90 W max.
Current consumption from I/O power supply No consumption
Weight 75 g max.
Installation orientation and restrictions Installation orientation:
• Connected to a CPU Unit
*2
Possible in the upright installation orientation.
• Connected to a Communications Coupler Unit
Six possible orientations.
Restriction: None.
*1. The cable length for the Units that supply power to the corresponding Unit must be up to 20 m.
*2. Only NX102 CPU Units can be connected. NX1P2 CPU Units cannot be connected.
l
NX-SL3500
Item Specification
Maximum number of safety I/O points 1,024 points
Program capacity 2,048 KB
Number of safety I/O connections 128
Number of CIP Safety originator connections 0
Number of CIP Safety target connections 0
Number of originators that can be connected
with a multi-cast connection
0
Number of FSoE master connections 128
I/O refreshing method Free-Run refreshing
External connection terminals None
Indicators [FS] LED, [VALID] LED, [DEBUG] LED, [TS] LED, [RUN]
LED
Hardware switch settings None
Dimensions (mm) 30 × 100 × 71 mm (W × H × D)
I/O power supply method Not supplied.
Current capacity of I/O power supply terminals No I/O power supply terminals
NX Unit power consumption
*1
• Connected to a CPU Unit
1.25 W max.
• Connected to a Communications Coupler Unit
0.90 W max.
Current consumption from I/O power supply No consumption
Weight 75 g max.
2 Specifications
2 - 5
NX-series Safety Control Unit User's Manual (Z930)
2-1 Safety CPU Unit
2
2-1-1 Models and Specifications
