Omron NX-SL5500

Item Specification
Current capacity of I/O power supply
terminal
No I/O power supply terminals
NX Unit power consumption
*1
3.35 W max.
Current consumption from I/O power
supply
No consumption
Weight 130 g max.
Installation orientation and restric-
tions
*2
Installation orientation: Upright installation
Restriction: None.
*1. The cable length for the Units that supply power to the corresponding Unit must be up to 20 m.
*2. Only NX102 CPU Units and Communication Control Units can be connected. NX1P2 CPU Units or Commu-
nications Coupler Units cannot be connected.
l
NX-SL5700
Item Specification
Maximum number of safety
I/O points
2,032 points
Program capacity 4,096 KB
Number of safety I/O connec-
tions
254
Number of CIP Safety origi-
nator connections
254
Number of CIP Safety target
connections
4
Number of originators that
can be connected with a mul-
ti-cast connection
8
Number of FSoE master con-
nections
254
I/O refreshing method Free-Run refreshing
External connection termi-
nals
None

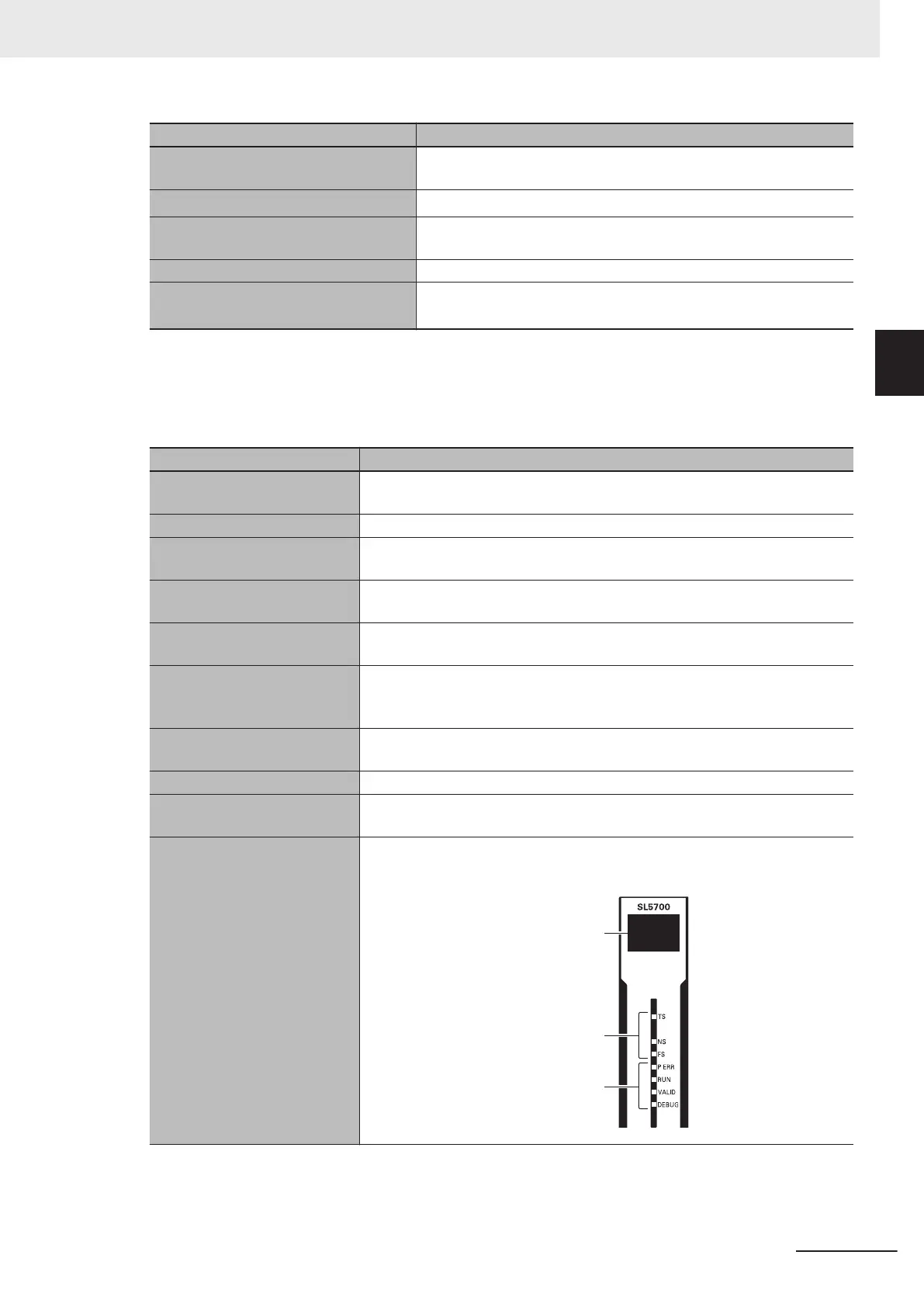

Indicators [TS] indicator, [NS] indicator, [FS] indicator, [P ERR] indicator, [RUN] indica-
tor
, [V
ALID] indicator, [DEBUG] indicator, seven-segment indicator
Seven-segment indicator
[TS] indicator, [NS] indicator, [FS] indicator
[P ERR] indicator, [RUN] indicator,
[VALID] indicator, [DEBUG] indicator
2 Specifications
2 - 7
NX-series Safety Control Unit User's Manual (Z930)
2-1 Safety CPU Unit
2
2-1-1 Models and Specifications
